TX13D200VM5BAA 5.0 inch 640*480 TFT-LCD screen panel

TX13D200VM5BAA 5.0 inch 640*480 TFT-LCD screen panel

TX13D200VM5BAA is an industrial grade LCD display panel model that is suitable for automation industrial control, embedded devices, and human-computer interaction terminal scenarios. The screen structure is stable and suitable for long-term uninterrupted operation.

Price: ~~$185.00~~ $182.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Feedback

Reveiw

TX13D200VM5BAA Datasheets Download

Name: TX13D200VM5BAA.pdf

LCD PANEL

Brand

Hitachi

Model

TX13D200VM5BAA

Quality

New, Original package

RMA Policy

RMA 3 month

Stock

Sample

Paid Sample

Stock Location

Delivery

WorldWide

Lead Time

1 week

Price Term

T/T, Western Union, MoneyGram, PayPal, Escrow etc

Weight

0.500Kg

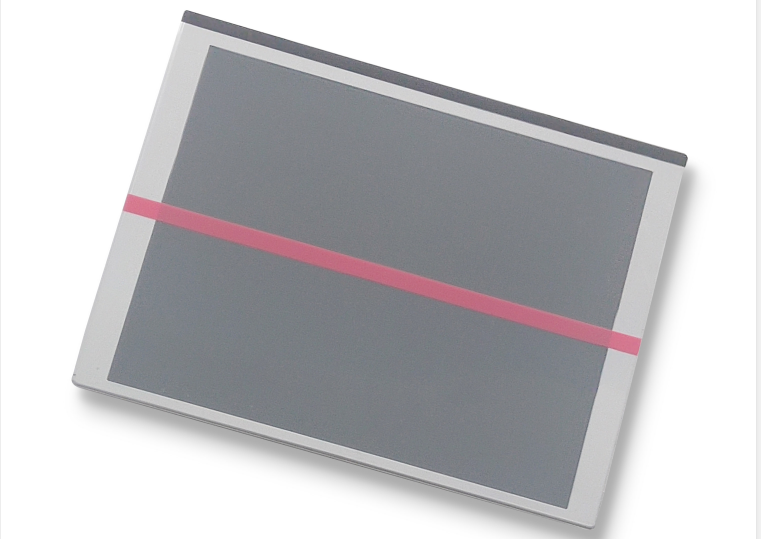

TX13D200VM5BAA Hitachi 5.0 inch TFT-LCD Panel Overview

The TX13D200VM5BAA is a Hitachi 5.0 inch industrial TFT-LCD display module featuring 640x480 (VGA) resolution. It is designed for industrial control, medical equipment, and automation display maintenance and replacement.

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: TX13D200VM5BAA
Brand / Manufacturer: Hitachi
Display Size: 5.0 inch
Resolution: 640x480 (VGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Manufacturer	HITACHI
Model No.	TX13D200VM5BAA
Screen Size	5.0 inch
Screen Type	a-Si TFT-LCD, LCM
Number of dots	640(RGB)×480, VGA, 4:3
Pixel Format	RGB Vertical Stripe
Active Area	101.76×76.32 mm (H×V)
Outline Area	119.4×89.1×9.8 mm (H×V×D)
Weight	110g (Typ.)
Surface Feature	Antiglare
Luminance	600 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response (ms)	45 (Max.)(Tr+Td)
Good View at	Not specified
Display Type	TN, Normally White, Transmissive
Display Colors	262K, 60% NTSC
Used for	Industrial control equipment, display terminals
Power Cons.	3.5W (Typ.)
Backlight	WLED, 70K hrs, With LED Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	CMOS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp. -30 ~ 80 °C, Operating Temp. -30 ~ 80 °C, Vibration 2.0G (19.6 m/s²)

Compatibility and Replacement Use

The TX13D200VM5BAA can be used as a direct replacement when your original equipment requires the same part number. Please check for specific revisions (e.g., V0, V1, V2, V3) or technical versions to ensure the connector and mounting match your system.

Typical Applications of TX13D200VM5BAA

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether TX13D200VM5BAA Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is TX13D200VM5BAA?

TX13D200VM5BAA is a Hitachi 5.0 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

TX13D200VM5BAA Hitachi 5.0 inch LCD Panel for Industrial Repair

TX13D200VM5BAA Hitachi

TX13D200VM5BAA Hitachi 5.0 inch TFT-LCD Panel Overview

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: TX13D200VM5BAA
Brand / Manufacturer: Hitachi
Display Size: 5.0 inch
Resolution: 640x480 (VGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Manufacturer	HITACHI
Model No.	TX13D200VM5BAA
Screen Size	5.0 inch
Screen Type	a-Si TFT-LCD, LCM
Number of dots	640(RGB)×480, VGA, 4:3
Pixel Format	RGB Vertical Stripe
Active Area	101.76×76.32 mm (H×V)
Outline Area	119.4×89.1×9.8 mm (H×V×D)
Weight	110g (Typ.)
Surface Feature	Antiglare
Luminance	600 cd/m² (Typ.)
Contrast Ratio	350:1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Response (ms)	45 (Max.)(Tr+Td)
Good View at	Not specified
Display Type	TN, Normally White, Transmissive
Display Colors	262K, 60% NTSC
Used for	Industrial control equipment, display terminals
Power Cons.	3.5W (Typ.)
Backlight	WLED, 70K hrs, With LED Driver
Refresh Rate	60Hz
Touchscreen	Without
Signal Type	CMOS (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp. -30 ~ 80 °C, Operating Temp. -30 ~ 80 °C, Vibration 2.0G (19.6 m/s²)

Compatibility and Replacement Use

Typical Applications of TX13D200VM5BAA

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether TX13D200VM5BAA Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is TX13D200VM5BAA?

TX13D200VM5BAA is a Hitachi 5.0 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

TX13D200VM5BAA Hitachi 5.0 inch LCD Panel for Industrial Repair

TX13D200VM5BAA Hitachi

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： B080UAN01.3 8.0 inch 1200*1920 TFT-LCD in stock

Next：TX17D01VM2CPA 6,5 Zoll 640 * 480 31-poliges TFT-LCD-Display

TX13D200VM5BAA Summary

TX13D200VM5BAA has the characteristics of resistance to temperature changes and slight vibrations in conventional industrial screens, and can be connected to mainstream PLCs and industrial control motherboards to build visual control systems. It is mainly used for workshop operation consoles and small instrument panels, with parameters adapted to conventional drive schemes. The market supporting accessories are mature, and deployment and maintenance are convenient, which can meet the basic high-definition display needs of small and medium-sized equipment.
