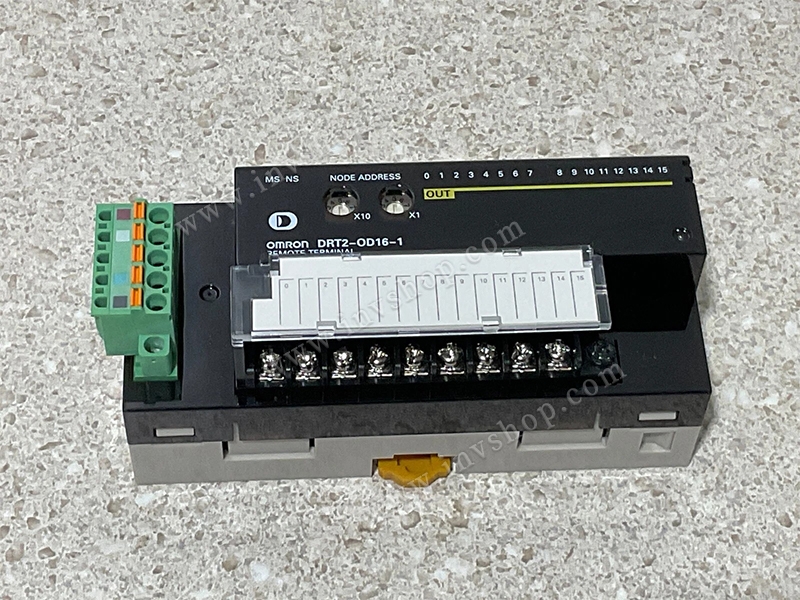

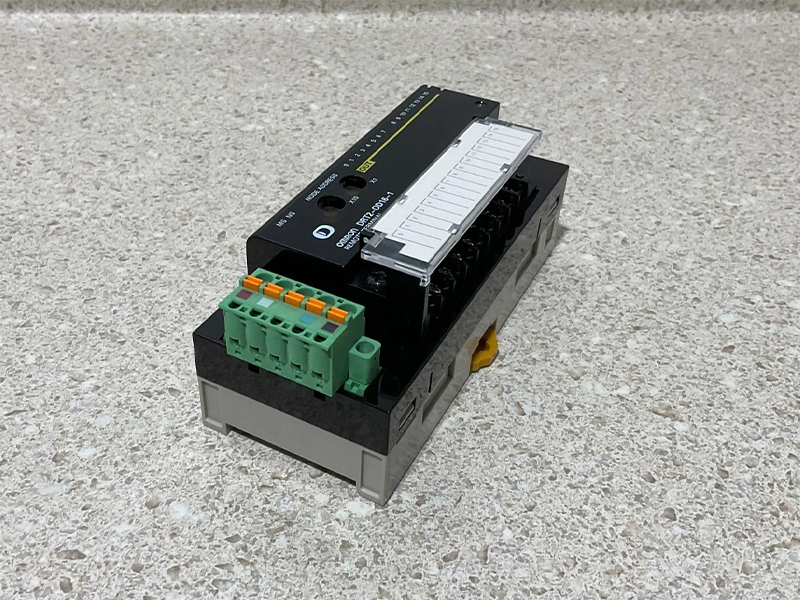

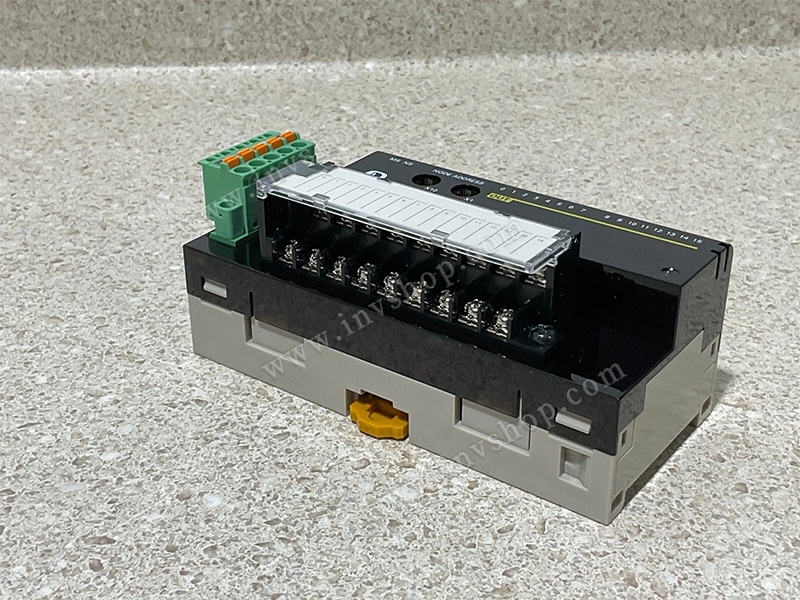

Name: DRT2-OD16-1.pdf1PC USED DRT2-OD16-1 Omron PLC
Detailed Specifications
| Item | Technical Parameter of DRT2-OD16-1 |
|---|---|
| Full Model | DRT2-OD16-1 |
| Manufacturer | Omron Corporation |
| Product Series | DRT2 Series DeviceNet Distributed Remote I/O Terminal |
| I/O Type | 16-point Digital Output Terminal (No Input Channels) |
| Output Circuit Type | NPN Open Collector (Sink Output) |
| Rated Load Voltage | DC 24V |
| Rated Load Current | Max. 0.5 A per single output point |
| Communication Protocol | DeviceNet (Conforms to ODVA standard) |
| Node Address Setting | Front rotary DIP switches (0 ~ 63 configurable) |
| Status Indicators | Module RUN LED, Network COMM LED, Individual channel output LEDs |
| Mounting Method | Standard 35 mm DIN rail mounting |
| Power Supply | External DC 24 V field power supply |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -25℃ ~ +70℃ |
| Protection Class | IP20 (installation inside control enclosure) |
| EMC Compliance | IEC 61000-6-2 industrial electromagnetic immunity standard |
| Environmental Standard | RoHS compliant |
| Core Application | Distributed control of solenoid valves, indicator lamps, miniature relays, buzzers and pneumatic actuators on DeviceNet factory automation networks |
Applications
Automotive welding, clamping and assembly line distributed pneumatic solenoid valve & fixture status indicator control
Food, beverage and pharmaceutical filling, labeling and palletizing machine local relay and signal lamp output control
Factory logistics automatic sorting, lifting and long-distance conveying line distributed alarm and travel indicator control
Municipal sewage and tap water pump station on-site drain valve, warning light auxiliary actuator distributed control
Textile spinning, printing and dyeing machinery distributed air cylinder and tension indicator remote output control
New energy battery winding, testing production line on-machine solenoid valve and status lamp field control
Export complete medium-sized automation machinery DeviceNet distributed I/O expansion slave terminals
FAQ
Q1: What does DRT2-OD16-1 model naming mean?
A: DRT2 = Omron DRT2 DeviceNet remote I/O series; OD = Output Digital; 16 = 16 channels; 1 = version specification. The DRT2-OD16-1 is a 16-point NPN open-collector DeviceNet remote digital output terminal.
Q2: What output type does DRT2-OD16-1 adopt, NPN or PNP?
A: The DRT2-OD16-1 uses NPN open collector sink output circuit, suitable for DC24V load with positive common power supply.
Q3: How many output points are available on DRT2-OD16-1 and maximum load per channel?
A: The DRT2-OD16-1 provides total 16 digital output channels; each single channel supports maximum 0.5A DC24V load.
Q4: Can DRT2-OD16-1 communicate with Omron CJ1, CQM1 series PLC?
A: Yes, DRT2-OD16-1 works with Omron PLCs equipped with DeviceNet master modules such as CJ1W-DRM21 and CQM1-DRM21 under standard DeviceNet protocol.
Q5: How to set the DeviceNet node address for DRT2-OD16-1?
A: The DRT2-OD16-1 is fitted with front rotary DIP switches, supporting manual hardware node address setting from 0 to 63.
