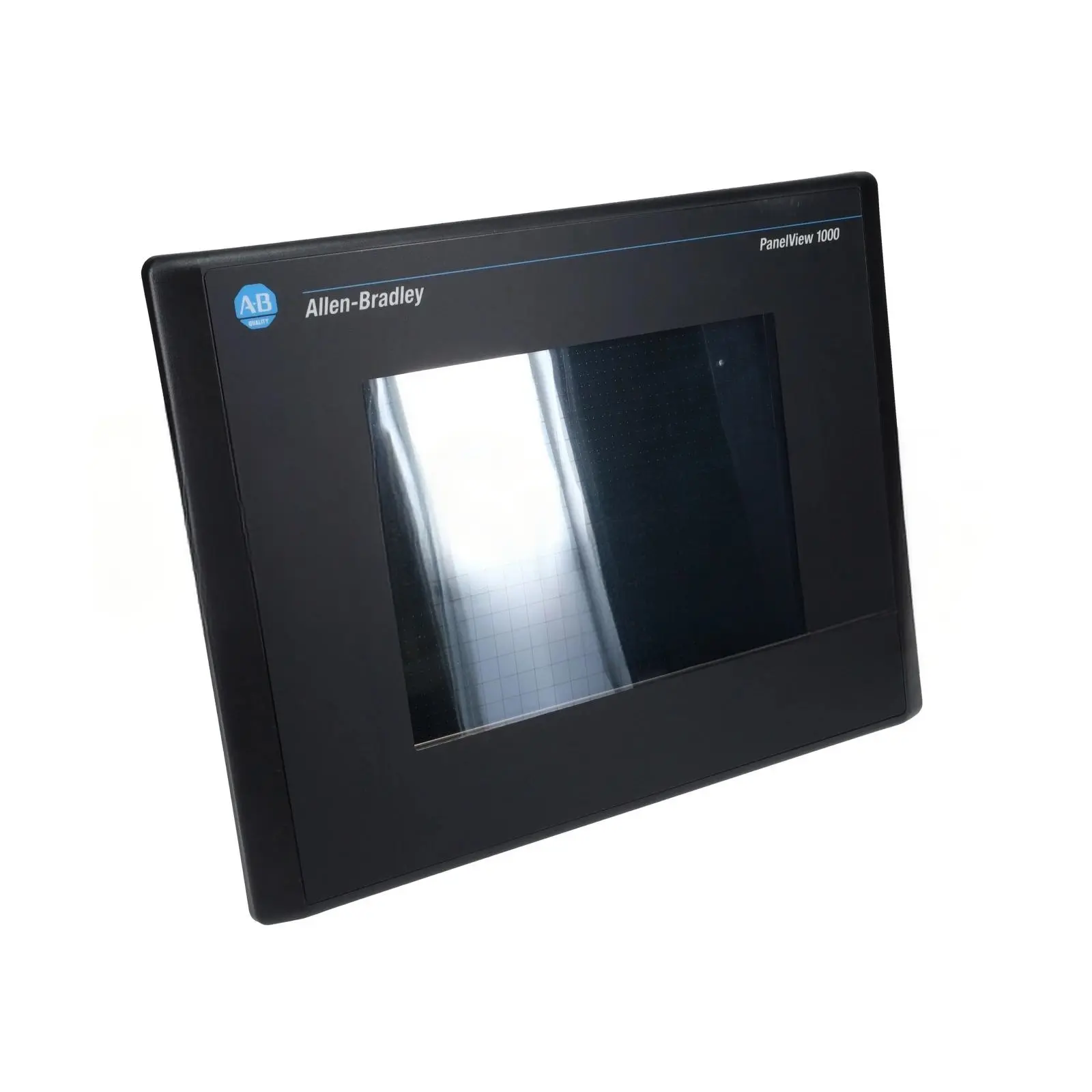

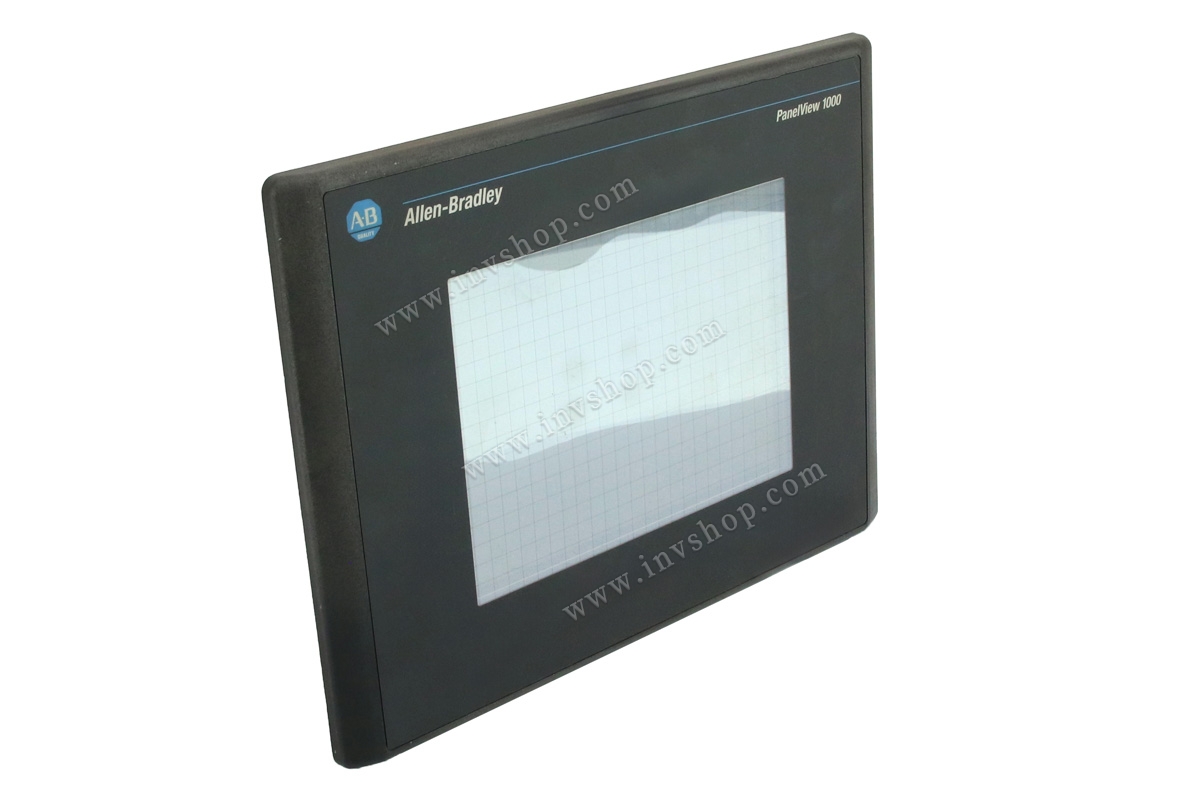

Name: 2711-t10c3.pdfAllen-Bradley 2711-T10C3 PanelView 1000 Standard Operator Terminal
The Allen-Bradley 2711-T10C3 is a PanelView 1000 Standard color operator terminal manufactured by Rockwell Automation under the trusted Allen-Bradley brand. Designed for industrial operator interface applications, this terminal combines a 10.4-inch color TFT touch screen with built-in DH-485 communication and an RS-232 printer port, making it a comprehensive solution for monitoring, control, and data reporting on the factory floor.
Rockwell Automation's Allen-Bradley brand has been the global benchmark for industrial automation and control since 1903. The PanelView 1000 series terminals have served as the workhorse HMI platform for thousands of manufacturing facilities worldwide. The 2711-T10C3 remains one of the most in-demand legacy replacement parts due to its widespread deployment in automotive, food and beverage, packaging, and material handling industries.
Note: The 2711-T10C3 has been discontinued by Rockwell Automation. Recommended migration path: PanelView 800 Graphic Terminals. However, surplus and refurbished units remain available for legacy system maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 2711-T10C3 |
| Series | PanelView 1000 Standard |
| Display Size | 10.4 inch (10.1 inch viewable) |
| Display Type | Color Active Matrix TFT |
| Display Resolution | 640 x 480 pixels (VGA) |
| Display Area (W x H) | 211 x 158 mm (8.3 x 6.2 in.) |
| Input Type | Analog Resistive Touch Screen |
| Communication Port 1 | DH-485 (PLC communication) |
| Communication Port 2 | RS-232 Printer Port |
| Input Voltage | 85-264V AC, 47-63 Hz |
| Power Consumption | Max 50W |
| Application Memory | 310 KB runtime + 1008 KB flash |
| Non-Volatile Memory | 1008 KB (application objects, text, bitmaps) |
| Software | PanelBuilder32 (2711-ND3) |
| External Memory | ATA Flash Memory Card supported |
| Real-Time Clock | Battery-backed clock with time stamps |
| Backlight | Field replaceable |
| Enclosure Type | NEMA Type 12/13 or 4X (indoor) |
| Operating Temperature | 0 degC to +50 degC (32 degF to 122 degF) |
| Storage Temperature | -20 degC to +70 degC |
| Humidity | 5% to 95% non-condensing |
| Terminal Dimensions (H x W x D) | 282 x 370 x 112 mm (11.11 x 14.58 x 4.4 in.) |
| Panel Cutout (W x H) | 338 x 257 mm (13.29 x 10.11 in.) |
| Mounting Depth | 90 mm (3.54 in.) / 97 mm (3.81 in.) with card retainer |
| Mounting Clearance | 51 mm (2 in.) on all sides |
| Weight | Approx. 4.5 kg (10 lb) |
| Certification | CE, UL, cUL |
| Product Status | Discontinued (EOL) — replacement: PanelView 800 series |
Communication and Connectivity
| Port | Protocol | Purpose |
|---|---|---|
| DH-485 Port | DH-485 | Connect to Allen-Bradley PLC-5 and SLC 500 controllers for real-time monitoring and control |
| RS-232 Printer Port | RS-232 | Print alarm logs, alarm lists, triggered messages, and multistate indicator states |
Typical Applications
Legacy PLC-5 and SLC 500 System HMI: The 2711-T10C3 with DH-485 is the classic operator interface for Allen-Bradley PLC-5 and SLC 500 control systems, widely used in manufacturing, automotive, and process industries from the 1990s through the 2000s.
Machine-Level Visualization: Provides operators with real-time process status, alarm indication, and data entry capabilities on packaging machines, CNC equipment, and material handling systems.
Alarm and Event Logging: Prints critical alarm logs and system event reports via the RS-232 printer port for regulatory compliance, maintenance records, and shift handover documentation.
Legacy System Replacement: Serves as a direct drop-in replacement for failed PanelView 1000 terminals in existing installations where PLC program compatibility makes full system upgrades impractical.
Spare Parts Inventory: Maintained as critical spare inventory for facilities running aging Allen-Bradley control architectures to minimize unplanned production downtime.
Quality and Warranty
All 2711-T10C3 units listed are used or refurbished units that have been functionally tested and verified. Units are supplied with a standard 30-day functional warranty. Cosmetic condition may vary; detailed photographs are available on request. As an authorized surplus distributor, InvShop.com provides traceability documentation and authenticity verification for all Allen-Bradley spare parts.
Frequently Asked Questions
| Question | Answer |
|---|---|
| Is the 2711-T10C3 still available new from Rockwell Automation? | No. The 2711-T10C3 has been discontinued (End of Life). However, surplus and refurbished units in working condition are available through InvShop.com. Rockwell's recommended replacement is the PanelView 800 Graphic Terminal series. |
| What PLCs is the 2711-T10C3 compatible with? | The 2711-T10C3 communicates via DH-485 and is compatible with Allen-Bradley PLC-5 (all revisions) and SLC 500 series PLCs. It cannot be connected directly to ControlLogix or CompactLogix systems without a bridge gateway. |
| Can I use PanelBuilder32 to program this terminal? | Yes. The 2711-T10C3 is configured using PanelBuilder32 software (catalog number 2711-ND3). This PC-based application allows you to design screen layouts, configure tags, and download application files to the terminal via a direct connection. |
| What is the difference between the 2711-T10C3 and the PanelView Component C1000? | These are different product families. The 2711-T10C3 belongs to the PanelView 1000 Standard series (higher-end, DH-485 + RS-232, NEMA-rated enclosures). The PanelView Component C1000 is a separate, more basic series with different communication options. Always match the exact model number for replacement. |
| Does the 2711-T10C3 support Ethernet communication? | No. The base 2711-T10C3 model supports only DH-485 and RS-232. Some variants (2711-T10C3 with suffix /E) include Ethernet. Please verify the specific revision of your unit or contact our technical team for confirmation. |
Allen-Bradley 2711-T10C3 PanelView 1000 Standard Operator Terminal
The Allen-Bradley 2711-T10C3 is a PanelView 1000 Standard color operator terminal manufactured by Rockwell Automation under the trusted Allen-Bradley brand. Designed for industrial operator interface applications, this terminal combines a 10.4-inch color TFT touch screen with built-in DH-485 communication and an RS-232 printer port, making it a comprehensive solution for monitoring, control, and data reporting on the factory floor.
Rockwell Automation's Allen-Bradley brand has been the global benchmark for industrial automation and control since 1903. The PanelView 1000 series terminals have served as the workhorse HMI platform for thousands of manufacturing facilities worldwide. The 2711-T10C3 remains one of the most in-demand legacy replacement parts due to its widespread deployment in automotive, food and beverage, packaging, and material handling industries.
Note: The 2711-T10C3 has been discontinued by Rockwell Automation. Recommended migration path: PanelView 800 Graphic Terminals. However, surplus and refurbished units remain available for legacy system maintenance.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Allen-Bradley (Rockwell Automation) |
| Model | 2711-T10C3 |
| Series | PanelView 1000 Standard |
| Display Size | 10.4 inch (10.1 inch viewable) |
| Display Type | Color Active Matrix TFT |
| Display Resolution | 640 x 480 pixels (VGA) |
| Display Area (W x H) | 211 x 158 mm (8.3 x 6.2 in.) |
| Input Type | Analog Resistive Touch Screen |
| Communication Port 1 | DH-485 (PLC communication) |
| Communication Port 2 | RS-232 Printer Port |
| Input Voltage | 85-264V AC, 47-63 Hz |
| Power Consumption | Max 50W |
| Application Memory | 310 KB runtime + 1008 KB flash |
| Non-Volatile Memory | 1008 KB (application objects, text, bitmaps) |
| Software | PanelBuilder32 (2711-ND3) |
| External Memory | ATA Flash Memory Card supported |
| Real-Time Clock | Battery-backed clock with time stamps |
| Backlight | Field replaceable |
| Enclosure Type | NEMA Type 12/13 or 4X (indoor) |
| Operating Temperature | 0 degC to +50 degC (32 degF to 122 degF) |
| Storage Temperature | -20 degC to +70 degC |
| Humidity | 5% to 95% non-condensing |
| Terminal Dimensions (H x W x D) | 282 x 370 x 112 mm (11.11 x 14.58 x 4.4 in.) |
| Panel Cutout (W x H) | 338 x 257 mm (13.29 x 10.11 in.) |
| Mounting Depth | 90 mm (3.54 in.) / 97 mm (3.81 in.) with card retainer |
| Mounting Clearance | 51 mm (2 in.) on all sides |
| Weight | Approx. 4.5 kg (10 lb) |
| Certification | CE, UL, cUL |
| Product Status | Discontinued (EOL) — replacement: PanelView 800 series |
Communication and Connectivity
| Port | Protocol | Purpose |
|---|---|---|
| DH-485 Port | DH-485 | Connect to Allen-Bradley PLC-5 and SLC 500 controllers for real-time monitoring and control |
| RS-232 Printer Port | RS-232 | Print alarm logs, alarm lists, triggered messages, and multistate indicator states |
Typical Applications
Legacy PLC-5 and SLC 500 System HMI: The 2711-T10C3 with DH-485 is the classic operator interface for Allen-Bradley PLC-5 and SLC 500 control systems, widely used in manufacturing, automotive, and process industries from the 1990s through the 2000s.
Machine-Level Visualization: Provides operators with real-time process status, alarm indication, and data entry capabilities on packaging machines, CNC equipment, and material handling systems.
Alarm and Event Logging: Prints critical alarm logs and system event reports via the RS-232 printer port for regulatory compliance, maintenance records, and shift handover documentation.
Legacy System Replacement: Serves as a direct drop-in replacement for failed PanelView 1000 terminals in existing installations where PLC program compatibility makes full system upgrades impractical.
Spare Parts Inventory: Maintained as critical spare inventory for facilities running aging Allen-Bradley control architectures to minimize unplanned production downtime.
Quality and Warranty
All 2711-T10C3 units listed are used or refurbished units that have been functionally tested and verified. Units are supplied with a standard 30-day functional warranty. Cosmetic condition may vary; detailed photographs are available on request. As an authorized surplus distributor, InvShop.com provides traceability documentation and authenticity verification for all Allen-Bradley spare parts.
Frequently Asked Questions
| Question | Answer |
|---|---|
| Is the 2711-T10C3 still available new from Rockwell Automation? | No. The 2711-T10C3 has been discontinued (End of Life). However, surplus and refurbished units in working condition are available through InvShop.com. Rockwell's recommended replacement is the PanelView 800 Graphic Terminal series. |
| What PLCs is the 2711-T10C3 compatible with? | The 2711-T10C3 communicates via DH-485 and is compatible with Allen-Bradley PLC-5 (all revisions) and SLC 500 series PLCs. It cannot be connected directly to ControlLogix or CompactLogix systems without a bridge gateway. |
| Can I use PanelBuilder32 to program this terminal? | Yes. The 2711-T10C3 is configured using PanelBuilder32 software (catalog number 2711-ND3). This PC-based application allows you to design screen layouts, configure tags, and download application files to the terminal via a direct connection. |
| What is the difference between the 2711-T10C3 and the PanelView Component C1000? | These are different product families. The 2711-T10C3 belongs to the PanelView 1000 Standard series (higher-end, DH-485 + RS-232, NEMA-rated enclosures). The PanelView Component C1000 is a separate, more basic series with different communication options. Always match the exact model number for replacement. |
| Does the 2711-T10C3 support Ethernet communication? | No. The base 2711-T10C3 model supports only DH-485 and RS-232. Some variants (2711-T10C3 with suffix /E) include Ethernet. Please verify the specific revision of your unit or contact our technical team for confirmation. |
