Home » Industrial LCD display » Chimei Innolux » G070ACE-LH1

G070ACE-LH1 Innolux 7inch 800×480 LCD DISPLAY

G070ACE-LH1 Innolux 7inch 800×480 LCD DISPLAY

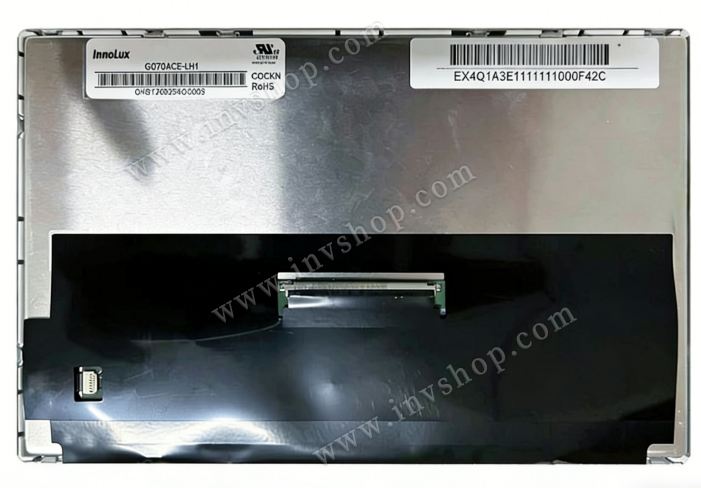

Innolux Corporation (hereafter called Innolux) G070ACE-LH1 is a 7.0 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen.

Price: ~~$70.00~~ $65.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:Linkedin

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

FF300R06KE3 INFINEON IGBT module

$55.00

$100.00

Producrts Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

G070ACE-LH1 Innolux 7inch 800×480 LCD DISPLAY

G070ACE-LH1 Datasheets Download

Name: G070ACE-LH1.pdf

Type

LCD DISPLAY

Brand

Innolux

Model

G070ACE-LH1

Parameter description：

1. Brand：Innolux

2. Size:7Inches

3. Model:G070ACE-LH1

4. Panel type:a-Si TFT-LCD, LCM

5. Resolution：800(RGB)×480, WVGA 133PPI

6. AA zone size:152.4(W)×91.44(H) mm

7. Overall dimensions:170(W)×110(H)×8.85(D) mm

8. Brightness:1000 cd/m² (Typ.)

9. Viewing angle:89/89/89/89 (Typ.)(CR≥10)

10. Contrast ratio:800 : 1 (Typ.) (TM)

11. Display color:262K/16.7M 59% NTSC

12. Optical mode:AAS, Normally Black, Transmissive

13. Response speed: 13/12 (Typ.)(Tr/Td) ms

14. Signal interface: LVDS (1 ch, 6/8-bit) , 30 pins Connector

15. Light source：WLED , 50K hours , With LED Driver

16. Touch: Without

17. Environment:Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C

Parameter description：

1. Brand：Innolux

2. Size:7Inches

3. Model:G070ACE-LH1

4. Panel type:a-Si TFT-LCD, LCM

5. Resolution：800(RGB)×480, WVGA 133PPI

6. AA zone size:152.4(W)×91.44(H) mm

7. Overall dimensions:170(W)×110(H)×8.85(D) mm

8. Brightness:1000 cd/m² (Typ.)

9. Viewing angle:89/89/89/89 (Typ.)(CR≥10)

10. Contrast ratio:800 : 1 (Typ.) (TM)

11. Display color:262K/16.7M 59% NTSC

12. Optical mode:AAS, Normally Black, Transmissive

13. Response speed: 13/12 (Typ.)(Tr/Td) ms

14. Signal interface: LVDS (1 ch, 6/8-bit) , 30 pins Connector

15. Light source：WLED , 50K hours , With LED Driver

16. Touch: Without

17. Environment:Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C

Quality: test ok before ship it
RMA Policy: RMA 3 month
Quantity: 20
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 3-5 Days
Price Term: T/T, Paypal Western Union, MoneyGram, PayPal, Escrow etc
Remark: NEW
Weight: 1.000Kg

Quality Assurance:

Quality is our culture!

We will take each customer's order seriously and responsibly.

Each item will be tested ok by testing tools before shipment .

Warranty of Products:

90days for new products ,60days for secondhand products.

After you receive the parcel , remember to install it on your equipment in time .

If there is any problems in warranty period , pls contact us firstly, we will solve the problems for customer.

Guarantee of delivery:

Time is money!

It will take 1 working day for stock products , 2-3 working days for order products.

If there are special circumstances on delivery time, we will inform customer in time.

Service Guarantee:

We have a professional pre-sales and after-sales team to provide customers with good service.
we trust we will be your trustworthy supplier in china if we have a chance to serve you.

Exchange / Return Policy:

We accept exchange or return within 7days if the goods you received has problems.
About refund, We need to check the goods whether is in the same condition we sent after we received the return, if no problems , we will refund .

Contact us:

Mobile/Whatsapp: +86 138 2744 1621

Wechat : Invshop168

Skype : candychen88

Email : winnihk88@winnihk.com

invshop@163.com

Parameter description：

1. Brand：Innolux

2. Size:7Inches

3. Model:G070ACE-LH1

4. Panel type:a-Si TFT-LCD, LCM

5. Resolution：800(RGB)×480, WVGA 133PPI

6. AA zone size:152.4(W)×91.44(H) mm

7. Overall dimensions:170(W)×110(H)×8.85(D) mm

8. Brightness:1000 cd/m² (Typ.)

9. Viewing angle:89/89/89/89 (Typ.)(CR≥10)

10. Contrast ratio:800 : 1 (Typ.) (TM)

11. Display color:262K/16.7M 59% NTSC

12. Optical mode:AAS, Normally Black, Transmissive

13. Response speed: 13/12 (Typ.)(Tr/Td) ms

14. Signal interface: LVDS (1 ch, 6/8-bit) , 30 pins Connector

15. Light source：WLED , 50K hours , With LED Driver

16. Touch: Without

17. Environment:Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 80 °C

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： g121l1-l01 new For 12.1" LCD Screen Display

Next：S290AJ1-LE2 Rev.C6 Innolux 28.6inch 1920×540 LCD DISPLAY

G070ACE-LH1 Summary

It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 85°C , and the maximal vibration level of 1.5G (14.7 m/s²).
