AUO G101EVT03.0 10.1 inch WXGA TFT-LCD Module 1280x800

AUO G101EVT03.0 Overview

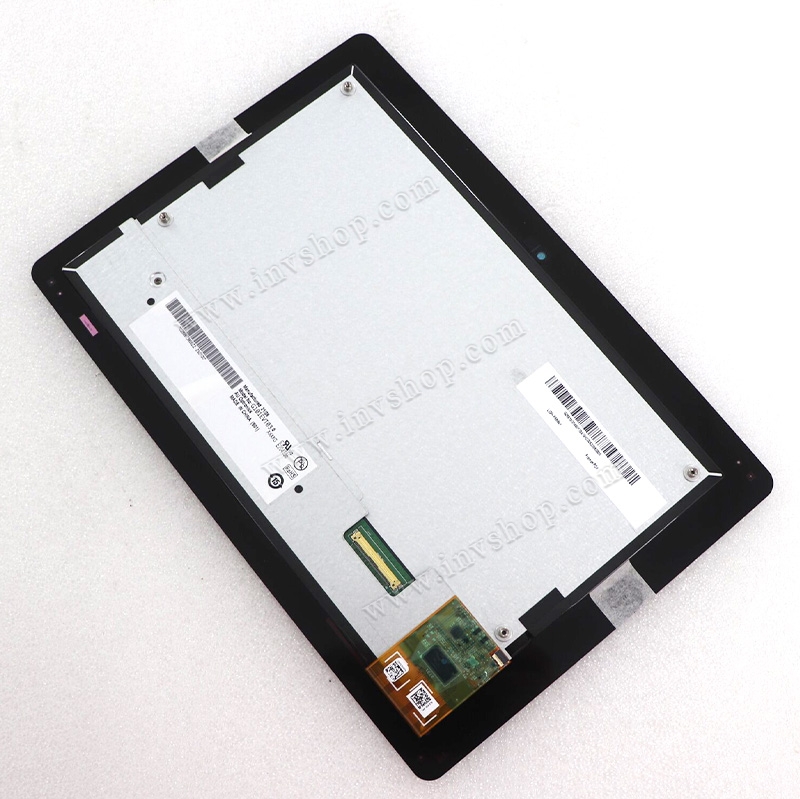

The AUO G101EVT03.0 is a 10.1-inch a-Si TFT-LCD module produced by AU Optronics, a leading manufacturer of industrial display panels. Featuring a WXGA resolution of 1280x800 with a 16:10 aspect ratio, this module combines high luminance, wide viewing angles and an integrated projected capacitive touch panel. It is engineered for industrial and outdoor high-brightness environments where dependable, daylight-readable performance matters.

Why Choose AUO Technology?

• High Brightness: 950 cd/m² (Typ.) typical luminance ensures clear readability in bright and sunlight-exposed environments.

• VA Panel Quality: 1300:1 (Typ.) contrast ratio and 85°/85°/85°/85° wide viewing angles deliver consistent, vivid images across the screen.

• Integrated Touch: Projected capacitive touch is built into the module, simplifying system design and reducing assembly complexity.

• Wide Operating Range: -20°C to 60°C operating and -30°C to 70°C storage temperatures suit demanding industrial settings.

• Reliable Interface: LVDS signal interface with 40 pins provides stable, high-speed data transmission for industrial controllers.

Technical Specifications

Typical Applications

• Industrial HMI: Operator panels, machine controls and factory automation interfaces.

• Outdoor & Kiosk: Self-service kiosks, information displays and wayfinding terminals in bright environments.

• POS & Retail: Point-of-sale systems and retail interactive terminals.

• Medical & Instrumentation: Medical monitors, test and measurement instruments.

• Transportation: In-vehicle and transportation information displays requiring wide viewing angles.

Quality Assurance and Support

• ✓ Genuine AUO product with authenticity guaranteed.

• ✓ Professional technical support from an experienced industrial display engineering team.

• ✓ Every unit is tested for display and touch function before shipment.

• ✓ Fast shipping and careful ESD-protected packaging.

FAQ

Q: Does the AUO G101EVT03.0 include a touch screen?
A: Yes, the module integrates a projected capacitive touch panel, enabling touch interaction without a separate touch controller board.

Q: What interface does the G101EVT03.0 use?
A: It uses an LVDS signal interface with 40 pins, providing a stable connection for industrial controllers and single-board computers.

Q: Is the display sunlight readable?
A: With 950 cd/m² typical luminance and a 1300:1 contrast ratio, it remains readable in bright and outdoor environments.

Q: Can it operate in wide-temperature industrial environments?
A: Yes, it supports an operating range of -20°C to 60°C and storage from -30°C to 70°C.

Q: What if the received product has a quality problem?
A: Please send photos or a video. If a genuine quality issue is confirmed, we accept replacement or return and refund.
