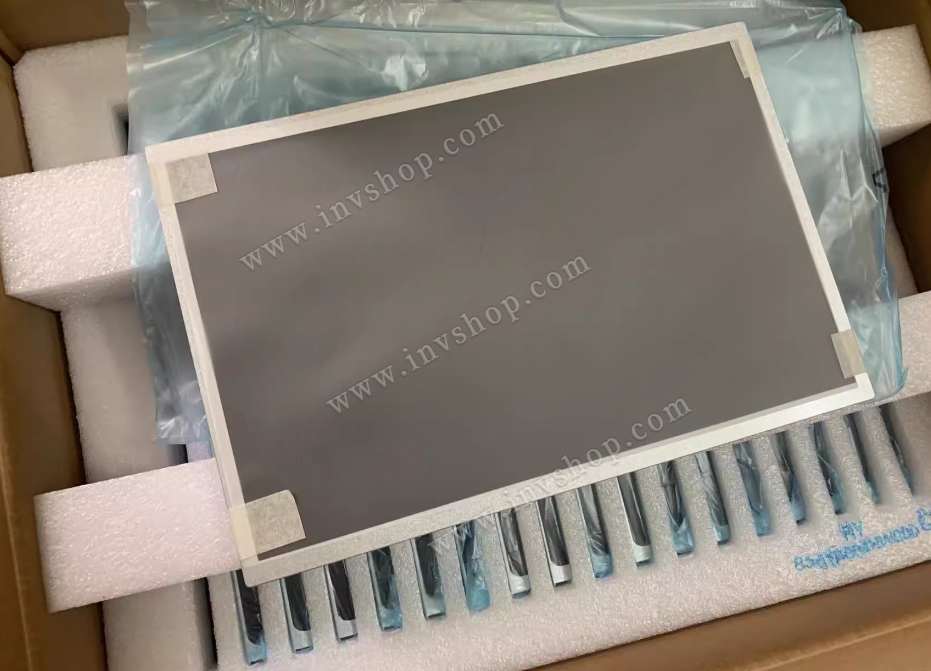

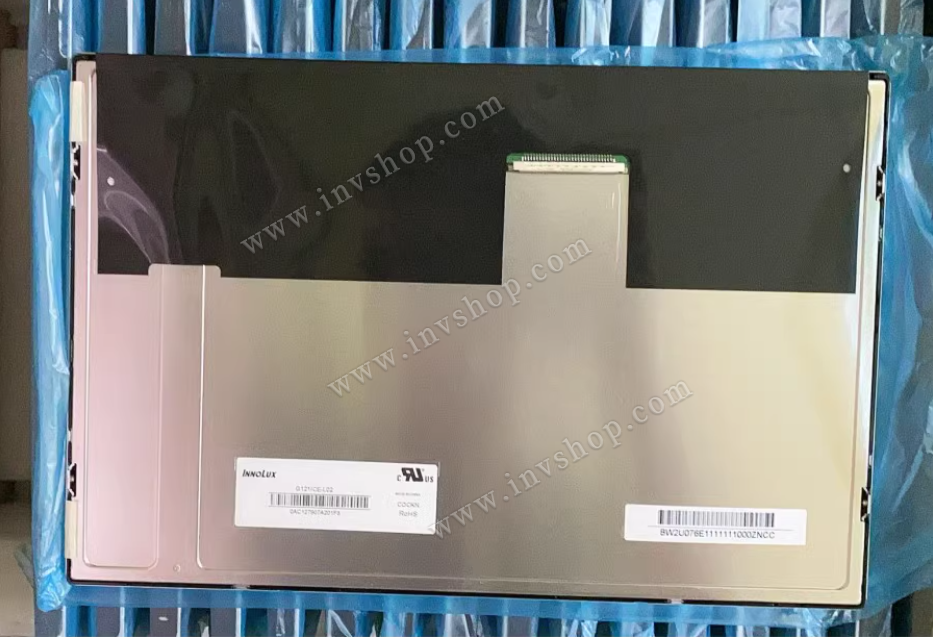

G121ICE-L02 new For 12.1 inch 1280(RGB)×800 LCD Screen Display

G121ICE-L02 new For 12.1 inch 1280(RGB)×800 LCD Screen Display

G121ICE-L02 Innolux 12.1-inch industrial TFT LCD module, resolution 1024 × 768, brightness 400cd/m ², LVDS signal interface, LED backlight with long service life. Panel matte anti glare, wide working temperature range

Price: ~~$113.00~~ $110.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Feedback

Reveiw

G121ICE-L02 Datasheets Download

Name: G121ICE-L02.pdf

LCD Screen Display Panel

Brand

Innolux

Model

G121ICE-L02

Quality

test ok before ship it

RMA Policy

RMA 3 month

Stock

Sample

Paid Sample

Stock Location

China

Delivery

WorldWide

Lead Time

3-5 Days

Price Term

T/T, Western Union, MoneyGram, PayPal, Escrow etc

Weight

1.500Kg

G121ICE-L02 Innolux 12.1-inch 1024×768 LCD panel

The G121ICE-L02 belongs to Innolux G Series wide-temperature industrial IPS LCD lineup, designed to replace obsolete TN-type low-brightness 12.1-inch control screens. Its core competitive advantage combines ultra-wide symmetric viewing angle, 500cd high brightness and extreme wide -30~+70℃ temperature tolerance, solving the three major pain points of traditional industrial displays: color distortion at side viewing angles, dim visuals under strong ambient light, and abnormal display in ultra-cold or overheated workshops.The IPS liquid crystal cell structure eliminates grayscale inversion and color deviation at oblique viewing positions, a critical feature for multi-operator shared machine operation panels. The high-brightness WLED backlight module adopts low-power constant current driving design, which not only improves visibility in bright factory environments but also lowers long-term power consumption of control cabinets. The 20pin single-channel LVDS interface is a classic universal industrial signal standard; compared to multi-channel LVDS, it simplifies wiring layout inside control boxes and reduces hidden trouble of loose signal cables.Since G121ICE-L02 is a touch-free bare panel, system integrators can freely match 12.1-inch standard resistive or capacitive touch screens according to equipment design requirements, flexibly realizing button-only or touch operation modes. The sealed frame edge structure blocks fine metal dust and oil mist generated during machining, protecting the fragile FPC connector and internal drive circuits from corrosion and short-circuit damage, greatly extending the service life of the panel in harsh manufacturing workshops. All electrical and optical indicators of G121ICE-L02 comply with IEC industrial EMC and reliability standards, suitable for mass production of export automation machinery and domestic factory renovation projects.

Detailed Specifications

Parameter	Specification
Brand	Innolux
Model	G121ICE-L02
Diagonal Size	12.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1280(RGB)×800, WXGA, 16:10
Dot Layout	RGB Vertical Stripe
Active Area	261.12(H)×163.2(V) mm
Physical Size	278(H)×184(V)×10.5(D) mm
Mass	470/490g (Typ./Max.)
Surface Coating	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	12/8 (Typ.)(Tr/Td) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	262K/16.7M, 72% NTSC
Designed For	Industrial displays, embedded systems
Power Usage	8.45W (Typ.)
Light Source	WLED, 30K hrs, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -20 ~ 70 °C, Storage Temperature -20 ~ 70 °C

Applications

Vertical & horizontal CNC milling, engraving, cutting machine HMI operation panels
Food, beverage and pharmaceutical automated filling & packaging production line central control cabinets
Water supply, sewage and energy plant pump, valve flow monitoring embedded display terminals
Textile winding, printing and dyeing machinery operation control consoles
Small automated testing equipment parameter monitoring display screens
Intelligent warehouse sorting machine touch-free control terminals
Mine and construction machinery portable industrial control display panels

FAQ

Q1: What series does G121ICE-L02 belong to and what’s its core feature?

A: G121ICE-L02 is Innolux G Series wide-temperature IPS industrial LCD, with core advantages of 500cd high brightness, full 89° symmetric viewing angle and -30℃ ~ +70℃ wide operating temperature range.

Q2: What signal interface does G121ICE-L02 use?

A: The G121ICE-L02 adopts single-channel 20pin LVDS FPC interface, fully compatible with mainstream industrial LVDS driver boards and HMI main controllers.

Q3: Can G121ICE-L02 work normally in -30℃ low-temperature environments?

A: Yes, the wide-temperature industrial grade G121ICE-L02 supports stable continuous operation from -30℃ up to +70℃ without black screen or color abnormality.

Q4: Does G121ICE-L02 come with built-in touch panel?

A: Standard G121ICE-L02 is touch-free bare screen; users can install matched external 12.1-inch resistive or capacitive touch overlay separately.

Q5: Can G121ICE-L02 replace old 12.1-inch XGA industrial LCD panels?

A: The outline dimension, active area and LVDS pin definition of G121ICE-L02 follow unified 12.1-inch XGA industrial LCD standards, supporting direct physical replacement without cabinet structural modification.

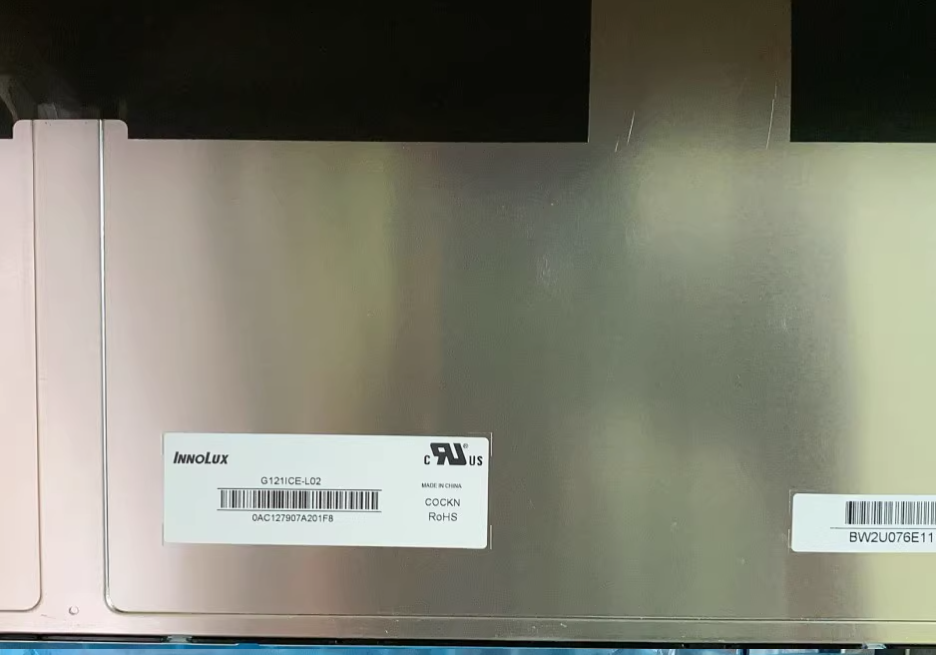

G121ICE-L02 LCD Screen Display

G121ICE-L02 Innolux 12.1-inch 1024×768 LCD panel adopts

G121ICE-L02 LCD Screen Display

G121ICE-L02 Innolux 12.1-inch 1024×768 LCD panel

Detailed Specifications

Parameter	Specification
Brand	Innolux
Model	G121ICE-L02
Diagonal Size	12.1 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1280(RGB)×800, WXGA, 16:10
Dot Layout	RGB Vertical Stripe
Active Area	261.12(H)×163.2(V) mm
Physical Size	278(H)×184(V)×10.5(D) mm
Mass	470/490g (Typ./Max.)
Surface Coating	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	1000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	12/8 (Typ.)(Tr/Td) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	AAS, Normally Black, Transmissive
Support Color	262K/16.7M, 72% NTSC
Designed For	Industrial displays, embedded systems
Power Usage	8.45W (Typ.)
Light Source	WLED, 30K hrs, With LED Driver
Frame Rate	60Hz
Touch Panel	Without
Interface Type	LVDS (1 ch, 6/8-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature -20 ~ 70 °C, Storage Temperature -20 ~ 70 °C

Applications

Vertical & horizontal CNC milling, engraving, cutting machine HMI operation panels
Food, beverage and pharmaceutical automated filling & packaging production line central control cabinets
Water supply, sewage and energy plant pump, valve flow monitoring embedded display terminals
Textile winding, printing and dyeing machinery operation control consoles
Small automated testing equipment parameter monitoring display screens
Intelligent warehouse sorting machine touch-free control terminals
Mine and construction machinery portable industrial control display panels

FAQ

Q1: What series does G121ICE-L02 belong to and what’s its core feature?

Q2: What signal interface does G121ICE-L02 use?

A: The G121ICE-L02 adopts single-channel 20pin LVDS FPC interface, fully compatible with mainstream industrial LVDS driver boards and HMI main controllers.

Q3: Can G121ICE-L02 work normally in -30℃ low-temperature environments?

A: Yes, the wide-temperature industrial grade G121ICE-L02 supports stable continuous operation from -30℃ up to +70℃ without black screen or color abnormality.

Q4: Does G121ICE-L02 come with built-in touch panel?

A: Standard G121ICE-L02 is touch-free bare screen; users can install matched external 12.1-inch resistive or capacitive touch overlay separately.

Q5: Can G121ICE-L02 replace old 12.1-inch XGA industrial LCD panels?

G121ICE-L02 LCD Screen Display

G121ICE-L02 Innolux 12.1-inch 1024×768 LCD panel adopts

G121ICE-L02 LCD Screen Display

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： G150XNE-L01 Innolux 15inch 1024*768 LCD PANEL

Next：G121I1-L01 new For 12.1" LCD Screen Display

G121ICE-L02 Summary

G121ICE-L02 is earthquake resistant and anti-static, with a metal reinforced frame that is suitable for harsh workshop environments. Mainly used for CNC equipment, industrial control human-machine interface, and detection instruments, it is an original replacement spare part for repairing old industrial display screen faults.
