Hi friends ! Kindly Remind:
Detailed Product Description
| Model | LQ156Z1JW01 | Brand | SHARP | ||||||
| Panel Size | 15.6inch | Panel Type | a-si TFT-LCD , Panel | ||||||
| Resolution | 3200*1800 | Pixel Format | RGB Vertical Stripe | ||||||
| Active Area | 345.6(W)×194.4(H) mm | Outline(mm) | 354.78(W)×204.96(H) ×0.752(D) mm | ||||||
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Work Mode | New Mode2, Normally Black, Transmissive | ||||||
| Contrast Ratio | 1000:1 (Typ.) (TM) | Touch Screen | Without | ||||||
| Frequency | 60Hz | Signal Type | No B/L , With LED Driver | ||||||
| About it | LQ156Z1JW01 SHARP 15.6inch LCD Panel | ||||||||
| Shipping Method | Received days | Shipping area | Fit | ||||||
| DHL | 3-6 Days | All over the world | All | ||||||
| FEDEX | 5-7 Days | All over the world | There's no LOGO on the product. | ||||||
| UPS(Official partners) | 2-5 Days | All over the world | There's no LOGO on the product. | ||||||
| TNT | 3-6 Days | All over the world | All | ||||||
| Sweden Post | 20-35 Days | All over the world | Total Weight < 1 KG | ||||||
*The goods will be shipped within 1-3days after you paid.
*The buyer can choose DHL/FEDEX/TNT/EMS,But BRAZIL and RUSSIA Country only can use EMS.
*Buyer will be 100% responsible for any custom duty if there is any.
*The remote area need to pay the more extra USD32.00 fees.
Q1:Where will you ship your products?
A:we will ship to all over the world.
Q2:What will happen if I give an incorrect shipping address?
A:PLEASE be certain of your address before ordering! If a package is returned to us because of an address problem, we will reship the package to you or a corrected recipient address. But you will be charged for the additional shipping fees..
Q3: Can I have refund if I reject my package when it is delivere?
A:If customer reject the package because of customs issue or other issues , we will not be responsible for arranging any refund towards the rejected package as we have fulfilled our obligation to complete and ship the orders to customers.
Q4:How do I exchange items?
A:The best way to arrange for an exchange is to contact our staff who will give you correct instructions pertaining to your particular order. Every exchange scenario can be different and there may be times when we can help you avoid unnecessary costs of sending your items back to us.

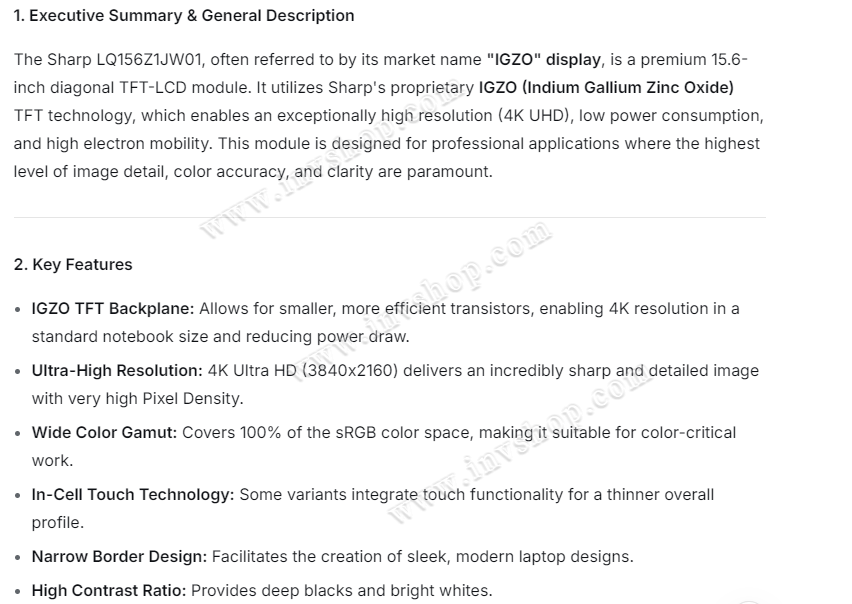

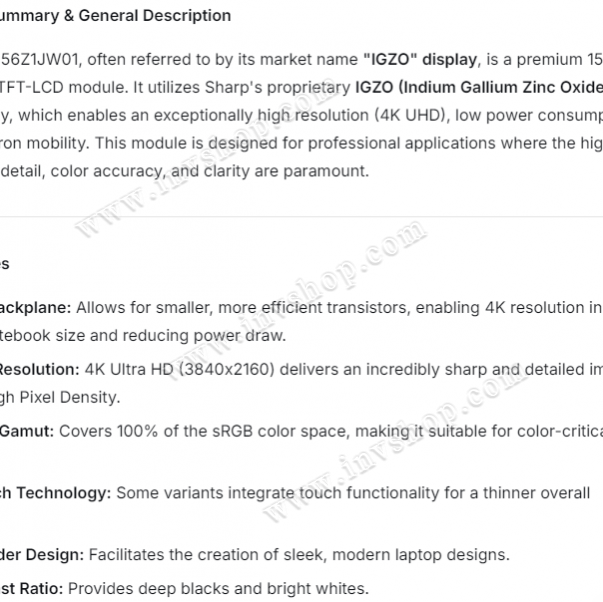

1. Executive Summary & General Description
The Sharp LQ156Z1JW01, often referred to by its market name "IGZO" display, is a premium 15.6-inch diagonal TFT-LCD module. It utilizes Sharp's proprietary IGZO (Indium Gallium Zinc Oxide) TFT technology, which enables an exceptionally high resolution (4K UHD), low power consumption, and high electron mobility. This module is designed for professional applications where the highest level of image detail, color accuracy, and clarity are paramount.
2. Key Features
IGZO TFT Backplane: Allows for smaller, more efficient transistors, enabling 4K resolution in a standard notebook size and reducing power draw.
Ultra-High Resolution: 4K Ultra HD (3840x2160) delivers an incredibly sharp and detailed image with very high Pixel Density.
Wide Color Gamut: Covers 100% of the sRGB color space, making it suitable for color-critical work.
In-Cell Touch Technology: Some variants integrate touch functionality for a thinner overall profile.
Narrow Border Design: Facilitates the creation of sleek, modern laptop designs.
High Contrast Ratio: Provides deep blacks and bright whites.

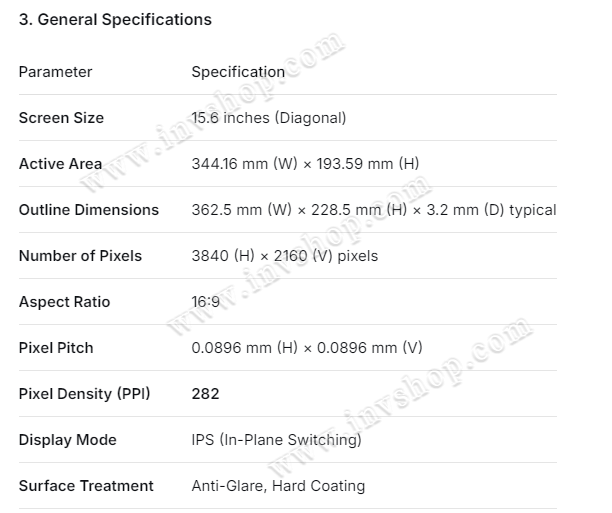

3. General Specifications
| Parameter | Specification |
|---|---|
| Screen Size | 15.6 inches (Diagonal) |
| Active Area | 344.16 mm (W) × 193.59 mm (H) |
| Outline Dimensions | 362.5 mm (W) × 228.5 mm (H) × 3.2 mm (D) typical |
| Number of Pixels | 3840 (H) × 2160 (V) pixels |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 0.0896 mm (H) × 0.0896 mm (V) |
| Pixel Density (PPI) | 282 |
| Display Mode | IPS (In-Plane Switching) |
| Surface Treatment | Anti-Glare, Hard Coating |

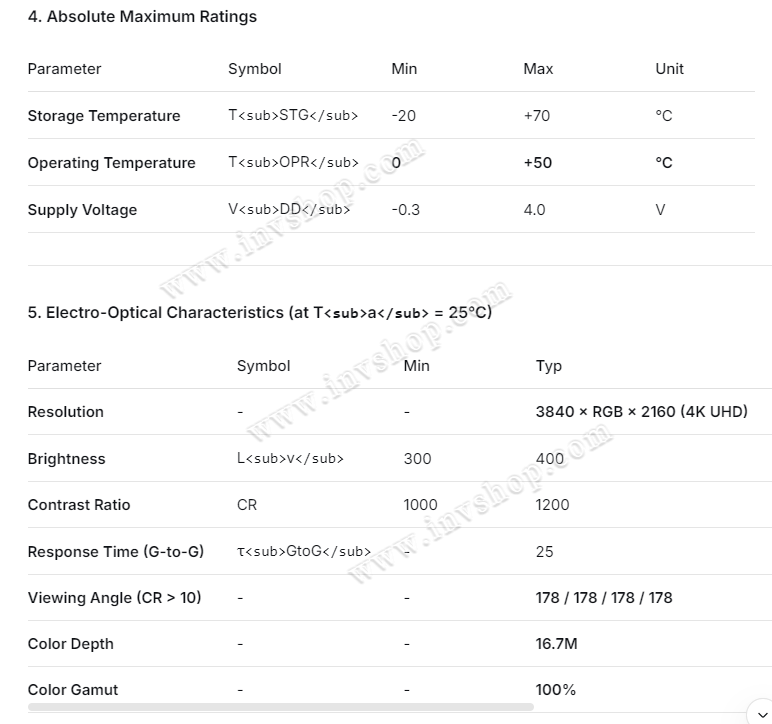

4. Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Temperature | T<sub>STG</sub> | -20 | +70 | °C |
| Operating Temperature | T<sub>OPR</sub> | 0 | +50 | °C |
| Supply Voltage | V<sub>DD</sub> | -0.3 | 4.0 | V |
5. Electro-Optical Characteristics (at T<sub>a</sub> = 25°C)
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Resolution | - | - | 3840 × RGB × 2160 (4K UHD) | - | - | - |
| Brightness | L<sub>v</sub> | 300 | 400 | - | cd/m² | - |
| Contrast Ratio | CR | 1000 | 1200 | - | - | - |
| Response Time (G-to-G) | τ<sub>GtoG</sub> | - | 25 | - | ms | - |
| Viewing Angle (CR > 10) | - | - | 178 / 178 / 178 / 178 | - | ° | (L/R/U/D) |
| Color Depth | - | - | 16.7M | - | - | 8-bit |
| Color Gamut | - | - | 100% | - | sRGB | - |
6. Power & Backlight Specifications
| Parameter | Symbol | Min | Typ | Max | Unit | Condition |
|---|---|---|---|---|---|---|
| Supply Voltage (Logic) | V<sub>DD</sub> | 3.0 | 3.3 | 3.6 | V | - |
| Operating Current (Logic) | I<sub>DD</sub> | - | TBD | TBD | mA | - |
| Backlight Type | - | - | W-LED | - | - | - |
| Backlight Lifetime | - | - | 50,000 | - | Hours | To half brightness |
| Backlight Voltage | V<sub>led</sub> | 13.0 | 14.4 | 16.0 | V | - |
| Backlight Current | I<sub>led</sub> | - | 60 | 90 | mA | - |
7. Interface & Signal
| Parameter | Specification |
|---|---|
| Interface Type | eDP (Embedded DisplayPort) |
| eDP Version | eDP 1.4 or higher |
| Lane Configuration | 4 Lanes |
| Input Color Format | 8-bit RGB digital signal |
8. Mechanical Characteristics
Mounting: Standard screw mounting on the rear side.
Connector Type: High-density board-to-board connector for eDP interface and backlight power.
