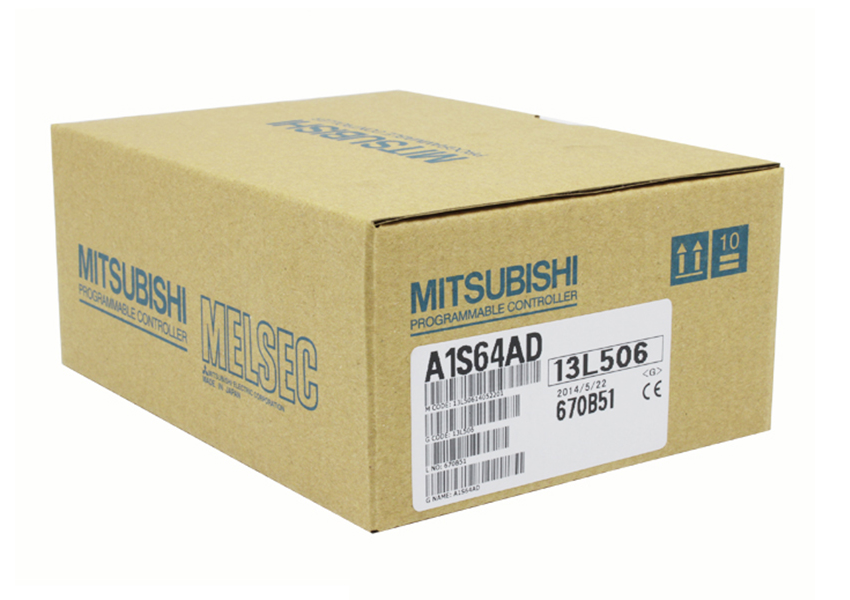

Mitsubishi PLC A Series module A1S64AD

The Mitsubishi A1S64AD is a 4-channel analog input module designed for the MELSEC A Series PLC system, capable of converting voltage or current signals into digital values for process control applications.

Price: ~~$107.00~~ $109.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:Linkedin

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

FF300R06KE3 INFINEON IGBT module

$55.00

$100.00

Producrts Details

Inventory Information

Seller Guarantees

Feedback

Reveiw

Mitsubishi PLC A Series module A1S64AD

Type

module

Brand

Mitsubishi

Model

A1S64AD

Channels:

4 independent analog input channels.

Input Type:

Selectable per channel: Voltage (DC -10V to +10V) or Current (DC 4 to 20mA, 0 to 20mA).

Resolution:

12-bit binary (0 to 4095 for unipolar, -2048 to +2047 for bipolar voltage

Conversion Speed:

Approx. 2.1 ms per channel (for all 4 channels: ~6 ms).

Digital Output:

16-bit signed (-4096 to 4095) or unsigned (0 to 4095) values stored in buffer memory.

Isolation:

Photocoupler isolation between analog circuits and PLC bus.

Averaging Function:

Programmable moving average filter for each channel.

Mitsubishi PLC A Series module A1S64AD
Condition: new

Parameter Category	Specification
Model	A1S64AD
Manufacturer	Mitsubishi Electric
Applicable PLC Series	MELSEC-A (AnS Series)
Module Type	Analog Input Module
Number of Channels	4 channels
Input Signal Range	Voltage: -10 to +10 VDC, 0 to 10 VDC, 0 to 5 VDC, 1 to 5 VDC, etc. Current: 0 to 20 mA, 4 to 20 mA, etc. (User selectable per channel)
Digital Resolution	12-bit binary (0 to 4095 / -2048 to +2047)
Accuracy	Voltage: ±0.5% (of full scale) Current: ±0.5% (of full scale)
Conversion Speed	15 ms per channel (for all 4 channels)
Input Impedance	Voltage: 1 MΩ or higher Current: 250 Ω
External Power Supply	Voltage: 24 VDC (±10%) Current Consumption: 90 mA max. (for internal circuit)
Internal Current Consumption (5VDC)	0.30 A (from the AnS base unit's power supply)
Isolation	Photocoupler isolation between analog circuits and PLC internal logic. No isolation between channels.
Connection	Removable terminal block

Quality: New, Original package
RMA Policy: RMA 3 month
Quantity: 50
Sample: Paid Sample
Stock Location: China
Delivery: WorldWide
Lead Time: 3-5 Days
Price Term: T/T, Paypal Western Union, MoneyGram, PayPal, Escrow etc
Remark: new
Weight: 0.500Kg
