VB-32ET-AC VIGOR programmable controller

VB-32ET-AC VIGOR programmable controller

VB-32ET-AC VIGOR VB series PLC expansion module, 32 point relay hybrid IO, AC input adapted to AC power signal, output contact load stable.

Price: ~~$180.00~~ $175.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Feedback

Reveiw

VB-32ET-AC Datasheets Download

Name: VB-32ET-AC.pdf

controller

Brand

VIGOR

Model

VB-32ET-AC

Quality

New, Original package

RMA Policy

RMA 3 month

Stock

Sample

Paid Sample

Stock Location

China

Delivery

WorldWide

Lead Time

3-5 Days

Price Term

T/T, Paypal Western Union, MoneyGram, PayPal, Escrow etc

Weight

1.500Kg

VB-32ET-AC VIGOR programmable controller

The VB-32ET-AC is the AC-powered transistor variant of Vigor VB-32E expansion series, differentiated from VB-32ET-D (DC24V supply) and VB-32ER-AC (relay output). The AC wide voltage power design is its core advantage for small and medium factories lacking dedicated DC control power; it draws power directly from workshop single-phase mains, removing the need to install extra switching power supplies for expansion modules. Each input and output channel of VB-32ET-AC adopts optocoupler isolation circuit (2500V isolation strength) to block electromagnetic interference from inverters, motors and contactors, preventing PLC program crash caused by signal noise. NPN transistor output supports high-frequency rapid switching up to 10kHz, suitable for pulse valves, small DC motors and high-speed photoelectric trigger loads, different from slow mechanical relay expansion modules. The ribbon cable expansion interface follows Vigor unified VB series communication protocol, hot-plug supported under power-off state, easy engineering modification and I/O point upgrade without replacing the whole PLC host. The whole module passes strict surge, ESD and temperature cycling reliability tests, suitable for continuous daily production operation.

Detailed Specifications

Item	Technical Parameter of VB-32ET-AC
Full Model	VB-32ET-AC
Manufacturer	Vigor Electric
Product Type	Digital I/O Expansion Module
Total I/O Points	32 (16 DI + 16 DO)
Digital Input (X)	16-ch DC24V Sink Input
Digital Output (Y)	16-ch NPN Transistor Output (0.5A per point)
Internal Power Supply	AC 85~264V 50/60Hz Wide Range
Output Load Spec	Max 0.5A / point, DC24V load
Expansion Connection	Flat Ribbon Cable to VB Main Unit Expansion Slot
Mounting Method	Standard 35mm DIN Rail
Status Indicator	Independent LED for each X / Y channel
Insulation Mode	Optocoupler isolation between I/O and internal circuit
Operating Temperature	0℃ ~ +55℃
Storage Temperature	-20℃ ~ +70℃
Protection Grade	IP20 (Indoor cabinet use)
Compatible Host	VB0 / VB1 / VB2 Series PLC Main Units
Dimension	90(W) × 87(H) × 58(D) mm
Net Weight	0.36kg
EMC Standard	CE Industrial Control EMC Compliance

Applications

Food & beverage automated filling, capping and packaging production lines
Logistics warehouse sorting, conveying and diverting conveyor equipment
Small CNC auxiliary feeding and material handling machinery
Textile winding, cutting and printing automation machines
Water treatment pump, valve and flow monitoring control cabinets
Plastic injection molding auxiliary take-out robot control systems
Small assembly station automated fixture control equipment

FAQ

Q1: What does ET-AC stand for in VB-32ET-AC?

A: ET = NPN transistor output type; AC = built-in universal 85–264V AC power supply. The VB-32ET-AC uses transistor output and accepts AC mains power directly.

Q2: Which PLC hosts match VB-32ET-AC?

A: The VB-32ET-AC is fully compatible with all Vigor VB0, VB1, VB2 series main programmable logic controllers via dedicated expansion flat cable.

Q3: What’s the maximum load current per output point of VB-32ET-AC?

A: Each Y transistor output channel of VB-32ET-AC supports max 0.5A DC24V load, ideal for solenoid valves, indicator lights and small actuators.

Q4: Can VB-32ET-AC work without a DC24V power adapter?

A: Yes. The VB-32ET-AC integrates internal AC power circuit, only connect single-phase AC 85–264V mains to the module power terminal for normal operation.

Q5: What’s the difference between VB-32ET-AC and VB-32ER-AC?

A: VB-32ET-AC = high-speed NPN transistor output; VB-32ER-AC = mechanical relay output for heavy low-frequency loads.

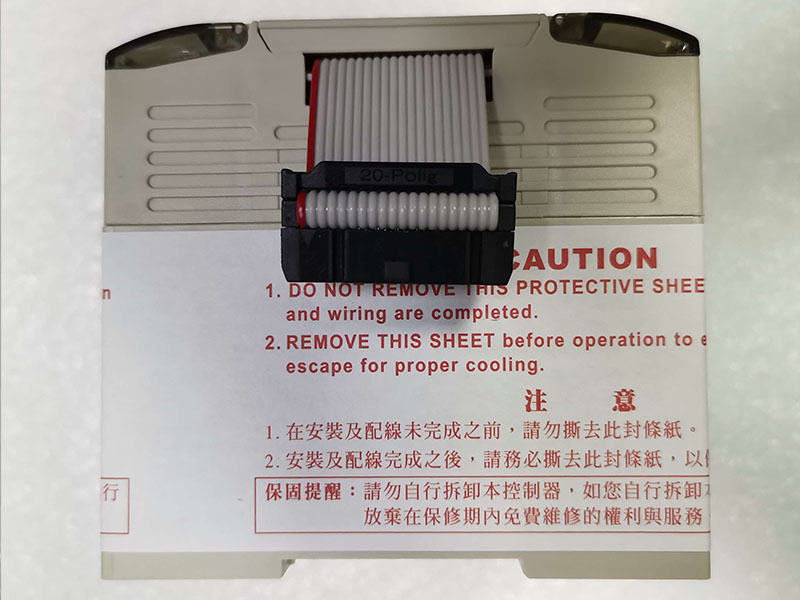

VB-32ET-AC VIGOR programmable controller

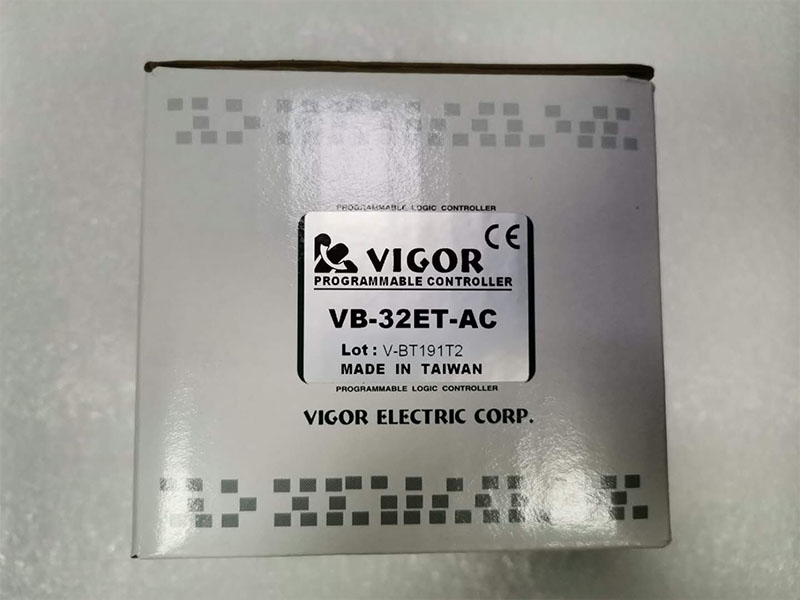

VB-32ET-AC DIO expansion module

VB-32ET-AC

VB-32ET-AC VIGOR programmable controller

Detailed Specifications

Item	Technical Parameter of VB-32ET-AC
Full Model	VB-32ET-AC
Manufacturer	Vigor Electric
Product Type	Digital I/O Expansion Module
Total I/O Points	32 (16 DI + 16 DO)
Digital Input (X)	16-ch DC24V Sink Input
Digital Output (Y)	16-ch NPN Transistor Output (0.5A per point)
Internal Power Supply	AC 85~264V 50/60Hz Wide Range
Output Load Spec	Max 0.5A / point, DC24V load
Expansion Connection	Flat Ribbon Cable to VB Main Unit Expansion Slot
Mounting Method	Standard 35mm DIN Rail
Status Indicator	Independent LED for each X / Y channel
Insulation Mode	Optocoupler isolation between I/O and internal circuit
Operating Temperature	0℃ ~ +55℃
Storage Temperature	-20℃ ~ +70℃
Protection Grade	IP20 (Indoor cabinet use)
Compatible Host	VB0 / VB1 / VB2 Series PLC Main Units
Dimension	90(W) × 87(H) × 58(D) mm
Net Weight	0.36kg
EMC Standard	CE Industrial Control EMC Compliance

Applications

Food & beverage automated filling, capping and packaging production lines
Logistics warehouse sorting, conveying and diverting conveyor equipment
Small CNC auxiliary feeding and material handling machinery
Textile winding, cutting and printing automation machines
Water treatment pump, valve and flow monitoring control cabinets
Plastic injection molding auxiliary take-out robot control systems
Small assembly station automated fixture control equipment

FAQ

Q1: What does ET-AC stand for in VB-32ET-AC?

A: ET = NPN transistor output type; AC = built-in universal 85–264V AC power supply. The VB-32ET-AC uses transistor output and accepts AC mains power directly.

Q2: Which PLC hosts match VB-32ET-AC?

A: The VB-32ET-AC is fully compatible with all Vigor VB0, VB1, VB2 series main programmable logic controllers via dedicated expansion flat cable.

Q3: What’s the maximum load current per output point of VB-32ET-AC?

A: Each Y transistor output channel of VB-32ET-AC supports max 0.5A DC24V load, ideal for solenoid valves, indicator lights and small actuators.

Q4: Can VB-32ET-AC work without a DC24V power adapter?

A: Yes. The VB-32ET-AC integrates internal AC power circuit, only connect single-phase AC 85–264V mains to the module power terminal for normal operation.

Q5: What’s the difference between VB-32ET-AC and VB-32ER-AC?

A: VB-32ET-AC = high-speed NPN transistor output; VB-32ER-AC = mechanical relay output for heavy low-frequency loads.

VB-32ET-AC VIGOR programmable controller

VB-32ET-AC DIO expansion module

VB-32ET-AC

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： CP1L-EM40DT-D Omron PLC Module

Next：FATEK Programmable Controller FBS-40MCR2-AC

VB-32ET-AC Summary

VB-32ET-AC comes with built-in terminals for on-site wiring and a surge absorption protection circuit to effectively resist interference from industrial power grids. Guide rail buckle installation, flexible expansion, suitable for assembly lines and small machine tool control systems, is a commonly used accessory for expanding and replacing old Fengwei equipment failures.
