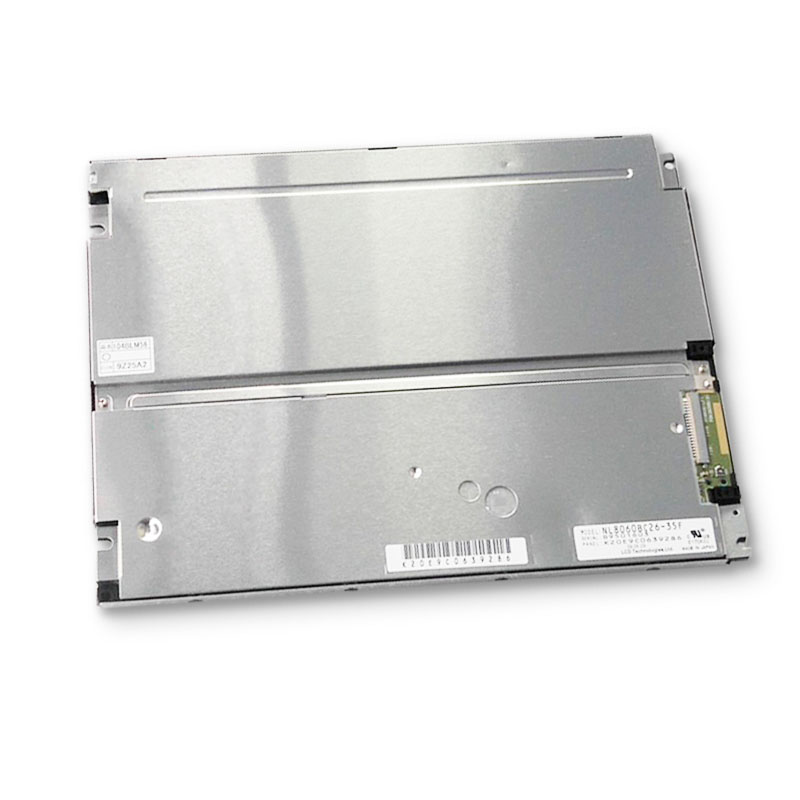

NEC NL8060BC26-35F 10.4 inch 800x600 SVGA TFT LCD Panel

Overview

The NEC NL8060BC26-35F is an 800-nit sunlight-readable 10.4-inch SVGA WLED TFT-LCD that sits at the high-brightness end of the NL8060BC26 range. Its four-string WLED backlight is rated for 70,000 hours, the TN Normally White cell delivers 900:1 contrast and an 80/80/80/80 viewing angle, and the whole module is specified across -30 to +80 degree C. A clear 3H hard-coated surface and 20-pin LVDS interface complete a panel aimed at digital signage, in-vehicle displays, and outdoor kiosks where readability in direct sun is non-negotiable.

Why Choose NEC Technology

Like the -35C, the NL8060BC26-35F brings 800 cd/m2 and a 70K-hour WLED to bear, but with a clear 3H hard-coated surface instead of the AR-treated 2H variant. The 4-string side-lit array delivers uniform brightness edge-to-edge, and the -30 to +80 degree C range covers everything from unheated cold-storage rooms to sun-exposed vehicle consoles. For OEMs building outdoor digital signage or cabin displays, this is the straightforward high-brightness choice.

Technical Specifications

Typical Applications

In-vehicle cabin displays, outdoor digital menu boards, petrol-pump screens, garden-centre signage, and bus-stop information panels all benefit from the 800-nit output. The 70K-hour LED lifetime suits unmanned outdoor installations where service visits are expensive.

Quality Assurance and Support

Every NEC NL8060BC26-35F panel is sourced through authorized NEC Display Solutions / NLT distribution channels and undergoes incoming visual and optical inspection against NLT Class A standards before packing. We verify pixel count, backlight uniformity, signal-integrity and mechanical fit. Our engineering team provides pre-sales pinout consultation and post-sales technical support. Standard lead time is 3-5 working days from Shenzhen stock, and all units carry a 6-month RMA warranty against manufacturing defects.

Packing and Shipping

Panels are packed in anti-static foam and standard NEC-shipping cartons. Single panels ship in dedicated ESD-safe packaging. We ship worldwide via DHL, FedEx, UPS, or by sea for bulk OEM orders. All shipments are insured in transit.

Frequently Asked Questions

How does -35F compare to -35C?

Both deliver 800 cd/m2, 900:1 contrast, and -30 to +80 degree C operation. The NL8060BC26-35F uses a clear 3H hard-coated surface, whereas the -35C uses an anti-reflection 2H treatment. Choose -35F for maximum optical clarity behind a protective window, or -35C when no cover glass is used.

Is the 800-nit panel too bright indoors?

You can dim the WLED backlight through the standard LED driver PWM or DC control input. At 20-30% brightness the panel is comfortable in a dim control room, and you can push it to 100% when sunlight hits the screen.

What cable does the LVDS interface use?

The NL8060BC26-35F uses a standard 20-pin single-channel LVDS connector with 1.0 mm pitch. We can supply a matched FFC cable and connector housing; tell us the distance to your mainboard when ordering.

What is the expected lifetime of the WLED?

The four-string WLED backlight is rated for 70,000 hours to half-brightness. In a 24/7 industrial installation this is over 8 years of continuous operation before visible dimming.

Do you offer a complete turnkey display?

Yes. We can bundle the NL8060BC26-35F with an LVDS driver board, WLED driver, touch overlay (optional), and mounting brackets as a tested assembly. Tell us your input signal (VGA, HDMI, DP) and we will configure the bundle.
