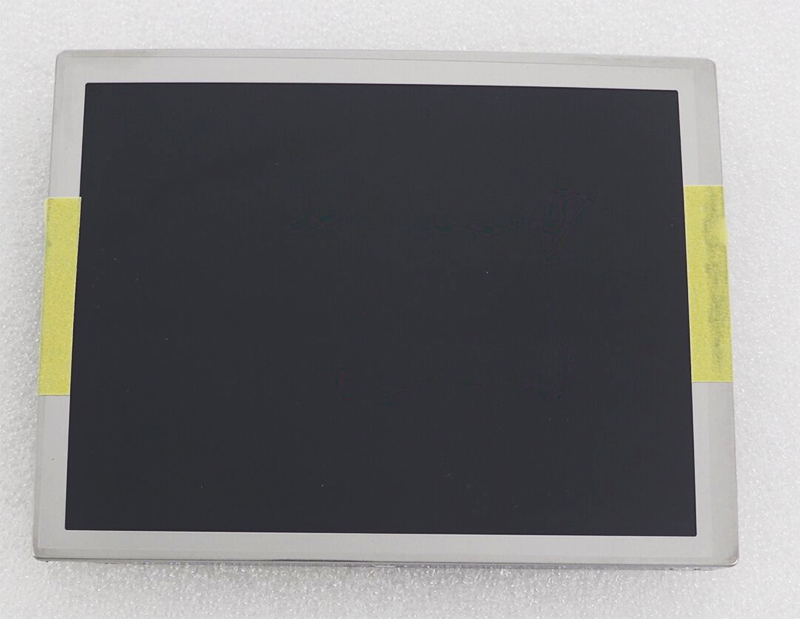

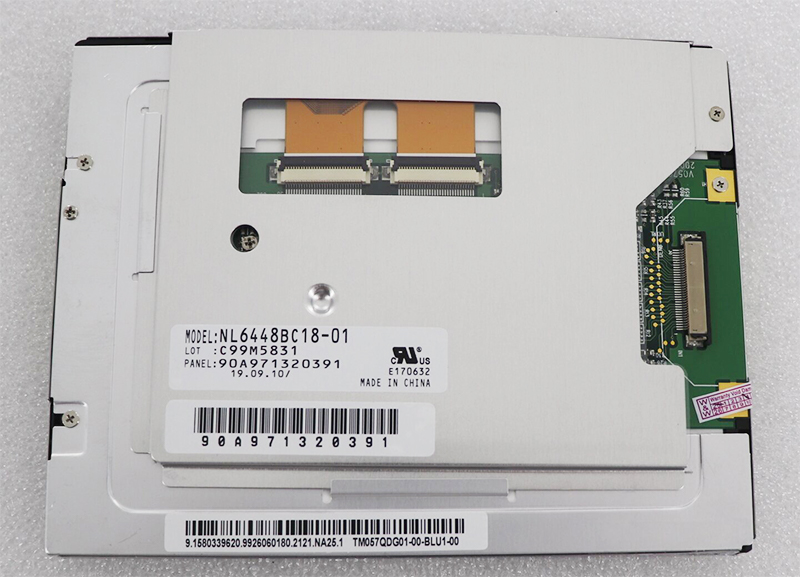

NL6448BC18-01 In Stock: NEC 5.7" Industrial LCD Panel Technical Review

• Panel Technology: Utilizing an a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) active matrix technology, this device provides robust performance for specialized applications.

• Diagonal Size & Resolution: A compact 5.7-inch screen with a native 640 × 480 (VGA) resolution. The 4:3 aspect ratio provides a classic, standardized layout for data presentation.

• Display Mode and View: Employs a TN mode (Normally White, Transmissive). Under the industrial standard of CR ≥ 10, it offers an optimal viewing angle of 80°/80° horizontal and 80°/80° vertical, ensuring data readability from multiple directions.

• Backlight & Luminance: Features a highly efficient WLED (White LED) sidelight system. It delivers a typical brightness of 400 cd/m² (with certain late-stage revisions reaching up to 800 cd/m²), making it highly legible in brightly lit factory environments.

• Interface & Voltage: Utilizes a standard CMOS 33-pin (1ch 6-bit) signal interface, operating on a standard supply voltage of 3.3V.

2. In-Depth Analysis of Key Performance Characteristics

• Industrial-Grade Temperature Resilience: The defining feature of this panel is its exceptional thermal endurance, with both operating and storage temperatures ranging from -30°C to +80°C. This enables the unit to function reliably in freezing outdoor equipment or high-temperature factory floors where commercial panels would fail.

• Contrast and Graphic Rendering: Boasts a solid typical contrast ratio of 850:1 to 1000:1, rendering 262K colors (6-bit color depth). For displaying textual readouts, PLC graphics, and waveform charts, its clarity and detail retention are exceptionally crisp and well-suited for industrial demands.

• Scan Inversion and Integration Flexibility: Supports a Reverse Scan mechanism. This function allows integrators to electronically invert the display orientation, drastically simplifying internal wiring and housing design layout during mechanical retrofitting.

• Industrial Human-Machine Interfaces (HMI) & PLCs: The 5.7-inch size is an ideal standard for automation control terminals and localized equipment monitors.

• Medical Diagnostic Monitors: The high contrast ratio and steady luminance are well-suited for mid-sized portable patient vital-sign monitors and lab analytical instrumentation.

• Test and Measurement Instruments: The broad temperature range allows safe deployment in automotive diagnostic rigs and outdoor geological exploration gear exposed to extreme weather.

• CNC Machine Tools & Heavy Equipment: With high vibration resistance (tested up to 2.0G), this VGA panel meets the rigorous physical requirements of heavy-duty production floors.

• Advantage: Given its widespread historical adoption, the market features a mature infrastructure of original stock and vetted drop-in replacements, reducing sourcing risk for critical production lines.

• Disadvantage: Over its life cycle, this part has undergone minor engineering revisions. Closely related variants (such as the NL6448BC18-01F, -03F, or -06F) may differ slightly in backlight connector types, drive circuitry, or lamp field-replaceability.

• Compatibility Caution: When replacing EOL (End-of-Life) panels for legacy equipment maintenance, always verify the precise physical Revision Code of the available stock and re-check pinout maps to prevent potential motherboard damage caused by mismatching variations.
