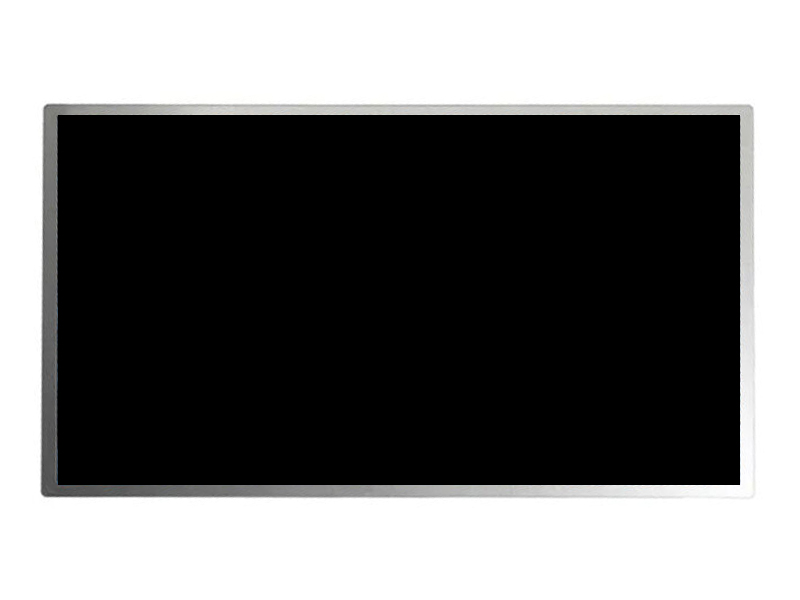

19.5 inch TFT LCD for Industrial HMI - G200HJJ-L01

The Innolux G200HJJ-L01 is a 19.5-inch a-Si TFT-LCD LCM designed for industrial equipment integration. It delivers 1920 × 1080 FHD resolution, 450 brightness, 3000:1 typical contrast, 96% sRGB coverage, and 85° viewing angles. A 2-channel, 8-bit LVDS interface, 60 Hz refresh rate, and 50,000-hour minimum backlight lifetime make the G200HJJ-L01 suitable for control, monitoring, and information-display applications in controlled operating environments.

Features

• Full HD display: 19.5-inch panel with 1920 (RGB) × 1080 resolution and 112 PPI.
• MVA display mode uses a normally black, transmissive a-Si TFT-LCD configuration.
• Visibility specifications include 450 brightness, 3000:1 typical contrast, and 85/85/85/85 degree viewing angles at CR≥10.
• Color specifications include a 6485K color temperature and 96% sRGB coverage based on CIE 1931.
• Response time is 15/5 ms typical for Tr/Td and 25 ms typical for G-to-G transitions.
• Digital connectivity through a 2-channel, 8-bit LVDS interface with a 60 Hz refresh rate.
• Electrical specifications include 37.2/39.6 V typical/maximum voltage and 30.0 W maximum power consumption.
• Backlight lifetime is rated at a minimum of 50,000 hours.
• Operating temperature range is 0–50°C, with a storage temperature range of -20–60°C.
• The active display area measures 434.88 × 238.68 mm; outline dimension is specified as 8.87/12.47 mm typical/maximum.

Applications

• Industrial HMI and operator-control interfaces
• Process monitoring and status-display systems
• Production-line and factory equipment interfaces
• Test, inspection, and diagnostic equipment displays
• Equipment-embedded information and control terminals
• Indoor control and monitoring installations with a 0–50°C operating environment

What display specifications does the Innolux G200HJJ-L01 provide?

The G200HJJ-L01 is a 19.5-inch a-Si TFT-LCD LCM with 1920 × 1080 FHD resolution, 112 PPI, 450 brightness, 3000:1 typical contrast, and a 60 Hz refresh rate.

What interface does the G200HJJ-L01 use?

It uses a 2-channel, 8-bit LVDS interface. The specified voltage is 37.2 V typical and 39.6 V maximum, with maximum power consumption of 30.0 W.

What are the viewing-angle and color specifications?

Typical viewing angles are 85/85/85/85 degrees at CR≥10. The color temperature is specified at 6485K, with 96% sRGB coverage based on CIE 1931.

What operating and storage temperatures are supported?

The specified operating temperature range is 0–50°C, and the storage temperature range is -20–60°C.

How long is the backlight rated to operate?

The backlight lifetime is specified at a minimum of 50,000 hours.

What are the panel integration dimensions?

The active area measures 434.88 × 238.68 mm. The supplied outline dimension specification is 8.87/12.47 mm typical/maximum.

Is the G200HJJ-L01 suitable for outdoor use?

Outdoor suitability is not established by the supplied specifications. The panel has a specified 0–50°C operating range, so environmental suitability should be confirmed for the intended installation.
