Delta EFB1524VHG/SHG EHB1524VHG 17251 24V ABB inverter cooling fan fan 2-wire/3-wire/4-wire

Delta EFB1524VHG/SHG EHB1524VHG 17251 24V ABB inverter cooling fan fan 2-wire/3-wire/4-wire

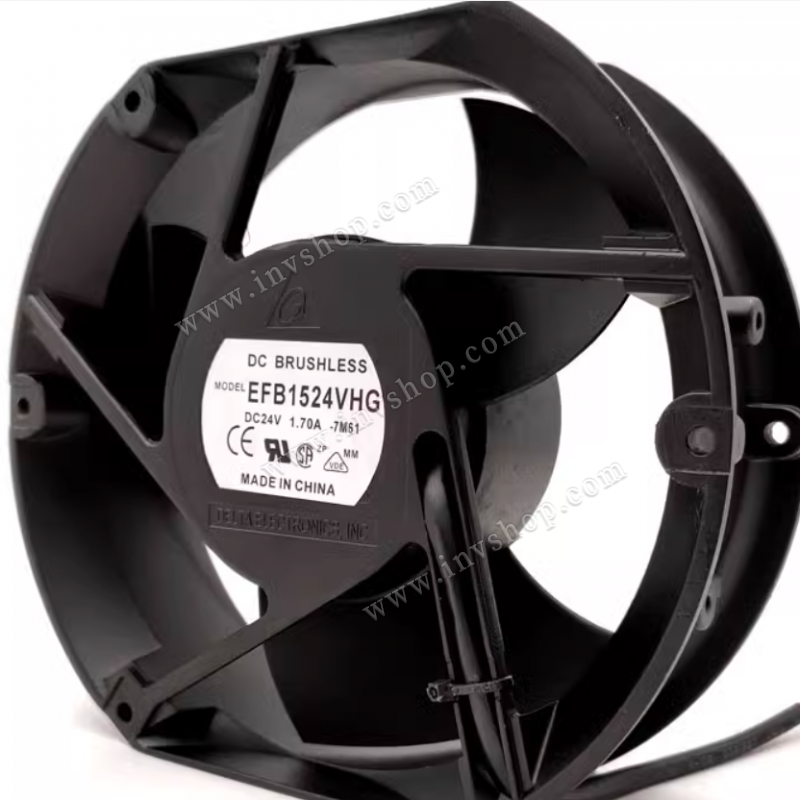

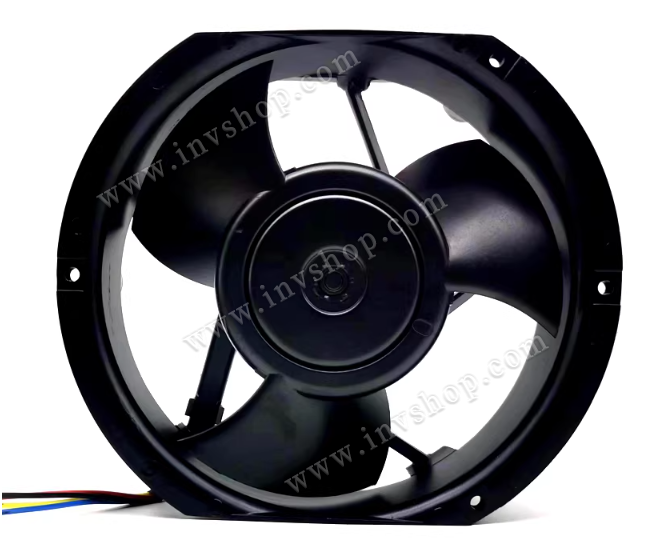

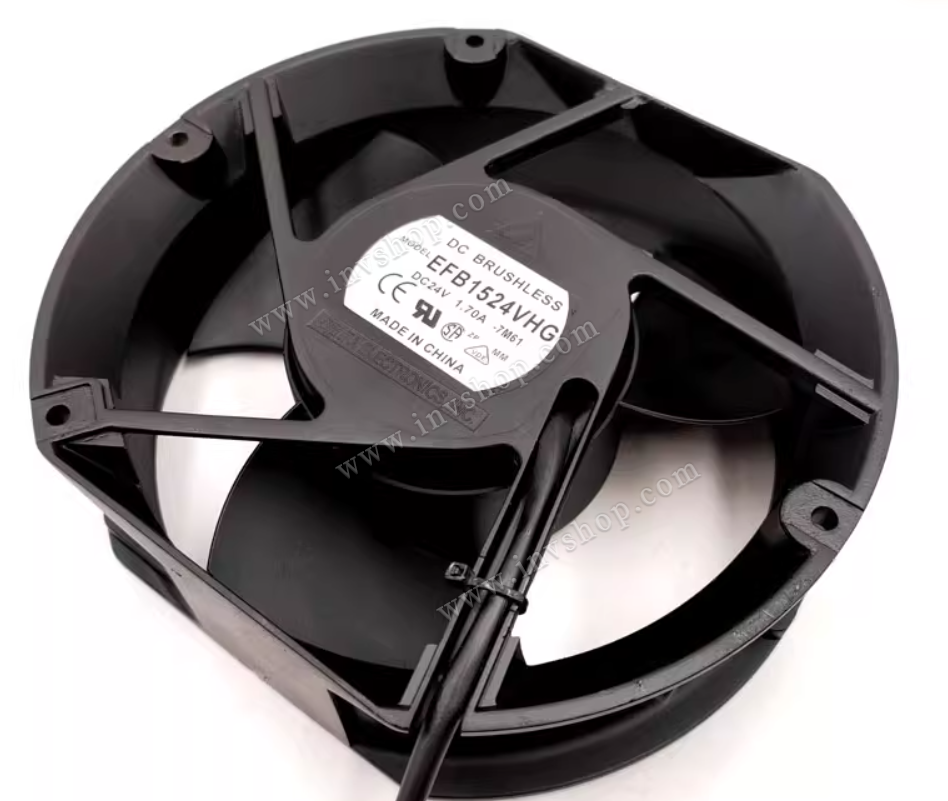

1、EFB1524VHG Product picture

2、EFB1524VHG Core features

1 Electrical parameters:

· The rated voltage is 24VDC, the current range is 1.17A to 1.70A, the power is up to 28.1W, and it supports a wide voltage input of 12~28VDC, which can be adapted to different power supply environments.

2 Performance parameters:

· The maximum speed is 4300RPM, the air volume is 325.0 CFM (9.20m3/min), and the static pressure is 1.083 inches of water column (269.8Pa) to ensure efficient heat dissipation.

3 Structure and protection：

· It adopts a tube-shaft design, the frame is made of aluminum, the blade is made of plastic, and some models have an IP68 waterproof rating, which can cope with harsh environments.

4 Working conditions:

· The operating temperature range is -10°C to 70°C (14°F to 158°F), the noise level is 63dB (A), and the rated life is up to 180,000 hours, which meets the long-term operation needs of industrial equipment.

5 Application scenario:

· As a key cooling component of industrial equipment such as frequency converters, UPS power supplies, communication equipment cabinets, etc., it guarantees the stable operation of equipment in high temperature environments.
