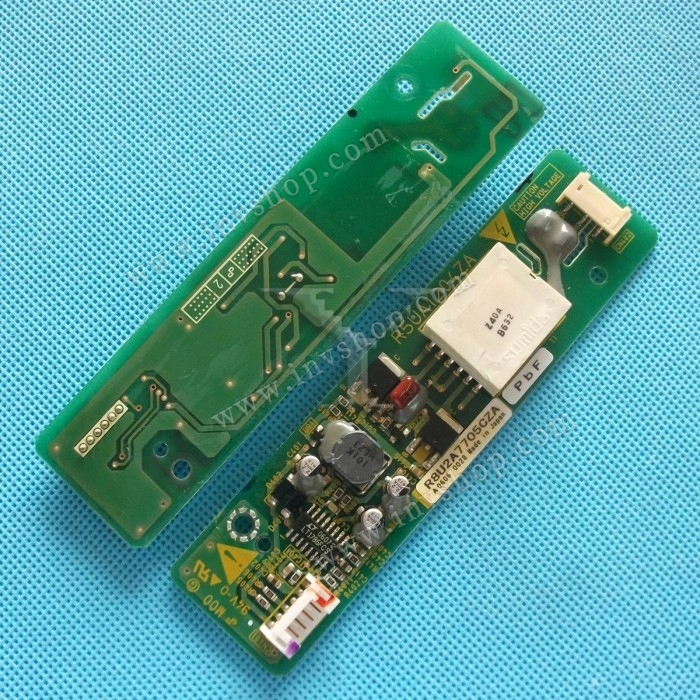

LCD Inverter R5UA1204ZA R8U2A7705CZA CCFL Backlight Driver Module

R5UA1204ZA R8U2A7705CZA Overview

The R5UA1204ZA R8U2A7705CZA is a high-quality CCFL (Cold Cathode Fluorescent Lamp) LCD inverter backlight driver module engineered for industrial and commercial LCD display applications. This dual-model inverter assembly provides the essential DC-to-AC power conversion required to illuminate CCFL backlight tubes in LCD panels, ensuring consistent brightness and reliable display performance across extended operating periods.

Designed as a direct replacement component, the R5UA1204ZA R8U2A7705CZA inverter module is widely used in LCD monitor repair, industrial HMI panel maintenance, and display system refurbishment. Each unit undergoes rigorous electrical testing to verify output voltage stability, current regulation, and thermal performance before shipment.

Why Choose This LCD Inverter Module?

• Tested Reliability: Every unit is individually tested for proper output voltage, current regulation, and lamp ignition performance before shipping

• Direct Replacement: Designed as a drop-in replacement for the original R5UA1204ZA and R8U2A7705CZA inverter assemblies

• Wide Compatibility: Compatible with various industrial LCD panels using CCFL backlight technology

• Stable Output: Provides consistent high-voltage AC output for uniform backlight illumination across the entire display surface

• Industrial Grade: Built to meet the demanding requirements of industrial display applications including HMI panels, medical displays, and process control monitors

Technical Specifications

Typical Applications

• Industrial HMI Displays: Replacement inverter for operator interface panels used in factory automation and process control systems

• LCD Monitor Repair: Direct replacement for failed backlight inverters in commercial and industrial LCD monitors

• Medical Display Maintenance: Used in servicing medical-grade LCD displays that require reliable backlight performance

• Test Equipment Displays: Replacement component for oscilloscopes, spectrum analyzers, and other test instruments with LCD displays

• Point-of-Sale Systems: Backlight inverter replacement for POS terminals and kiosk displays

Quality Assurance and Support

• ✓ Tested Before Shipping: Each inverter module is electrically tested for proper output voltage and lamp ignition

• ✓ Professional Technical Support: 15+ years engineering team experienced in industrial display component integration

• ✓ Quality Inspection: All products undergo visual inspection and electrical testing before shipment

• ✓ Fast Shipping: Ships within 1-3 business days from Hong Kong warehouse

• ✓ 90-Day Warranty: Manufacturer warranty included for defects in materials and workmanship

• ✓ 30-Day Returns: Hassle-free return policy for unused items in original packaging

Packing and Shipping

Each R5UA1204ZA R8U2A7705CZA LCD inverter module is individually packaged in anti-static bags with bubble wrap protection and shipped in sturdy carton boxes. We ship worldwide via DHL, FedEx, UPS, TNT, and EMS with full tracking and insurance. Orders are processed within 1-3 business days after payment confirmation.
