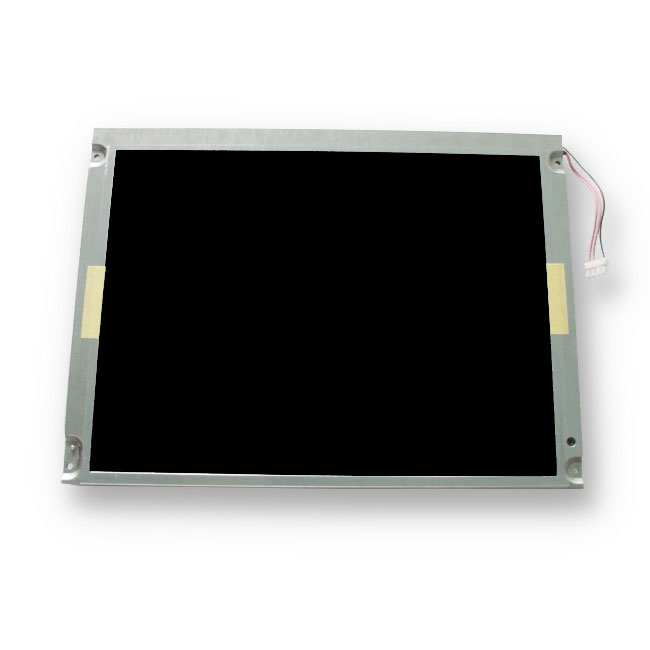

NL8060BC31-42D 12.1" 800*600 a-Si TFT-LCD FOR NEC

Product Introduction

The NL8060BC31-42D is a professional 12.1 inch industrial TFT LCD module produced by NLT (NEC LCD Technologies). This display supports 800×600 SVGA resolution and 400 cd/m² brightness with anti-glare surface treatment, providing clear and stable image display. Equipped with 6-bit TTL interface and CCFL backlight, it features wide temperature resistance and durable construction, suitable for long-term operation in industrial control environments.

Explore more NLT industrial LCD modules, 12.1 inch SVGA displays and compatible models including TCG057VGLAAANN-GN20 and TCG070WVLPAANN-AN50.

Specifications

Key Features

- Standard 800×600 SVGA resolution for clear text and graphics

- 400 cd/m² brightness with anti-glare surface for industrial use

- 6-bit TTL (CMOS) interface stable signal transmission

- Wide temperature range for harsh industrial environments

- CCFL backlight long lifespan and reliable performance

- Hard coating (3H) scratch-resistant surface

Installation Notes

Use anti-static protection during installation, avoid pressing the screen surface, confirm TTL signal compatibility, and ensure proper heat dissipation for continuous operation.

Troubleshooting

Check TTL cable connection if display is abnormal. Verify backlight voltage for dim display. Adjust signal timing if image is unstable.

Applications

Industrial HMI control panels, factory automation systems, medical devices, testing instruments, industrial computers, and embedded control equipment.

FAQ

1. Manufacturer of NL8060BC31-42D?

It is an original industrial LCD module produced by NLT (NEC LCD Technologies).

2. What is the resolution?

Standard 800×600 SVGA resolution.

3. Interface type?

6-bit TTL (CMOS) interface.

4. Does it have anti-glare?

Yes, anti-glare hard coating (3H) surface.
