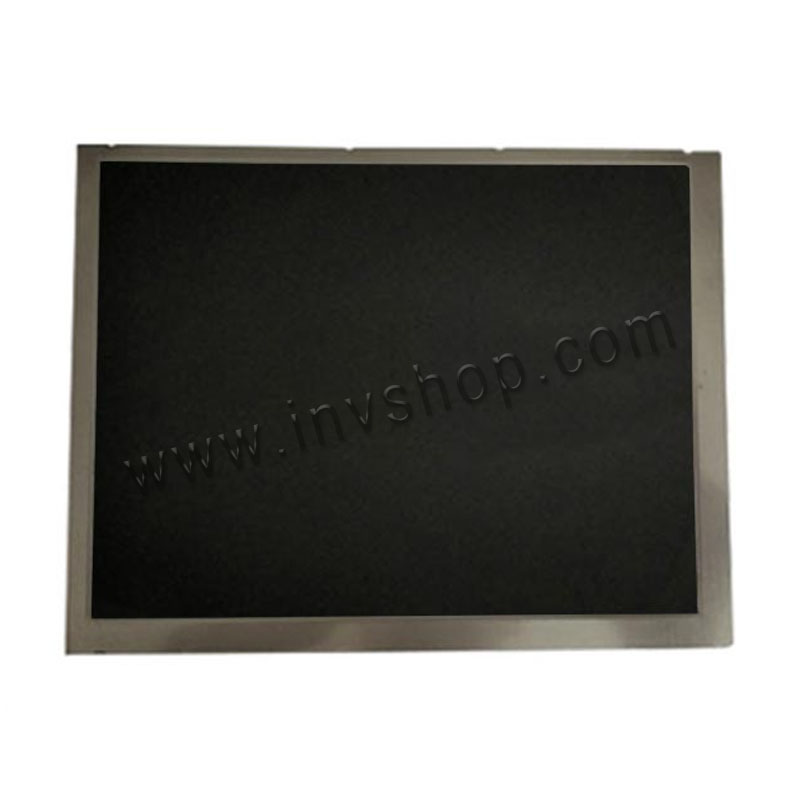

TCG057VGLAAANN-GN20 5.7 Inch VGA Industrial TFT LCD Module

Product Introduction

The TCG057VGLAAANN-GN20 is a high-quality 5.7 inch industrial TFT LCD module produced by Kyocera. This display adopts TN transmissive technology, supports 640×480 VGA resolution and 450 cd/m² brightness, providing stable and clear image output. Equipped with a 30-pin LVDS interface and built-in LED driver, it features compact size, low power consumption, and industrial-grade wide temperature resistance, ideal for various industrial control and embedded applications.

Explore more Kyocera industrial LCD modules, 5.7 inch VGA displays and compatible models including TCG070WVLPAANN-AN50 and TM080TDHG01-42.

Specifications

Key Features

- Standard 640×480 VGA resolution for clear text and graphics

- 450 cd/m² high brightness suitable for industrial indoor environments

- 30-pin LVDS interface with strong anti-interference capability

- Wide temperature range for stable operation in harsh conditions

- Built-in LED driver simplifies external circuit design

- Compact and thin profile easy for system integration

Installation Notes

Use anti-static measures during installation, avoid pressing the screen surface, ensure correct LVDS signal connection, and provide proper heat dissipation for continuous operation.

Troubleshooting

If display is abnormal, check LVDS cable and power supply. For dim backlight, verify LED driver voltage. Adjust signal timing if image is unstable.

Applications

Industrial HMI panels, factory automation equipment, medical devices, testing instruments, automotive displays, and embedded industrial computers.

FAQ

1. Manufacturer of TCG057VGLAAANN-GN20?

It is an original industrial LCD module produced by Kyocera.

2. What is the resolution?

Standard 640×480 VGA resolution.

3. Interface type?

30-pin LVDS (1 channel, 6-bit).

4. Operating temperature range?

Industrial grade -20°C to +70°C.
