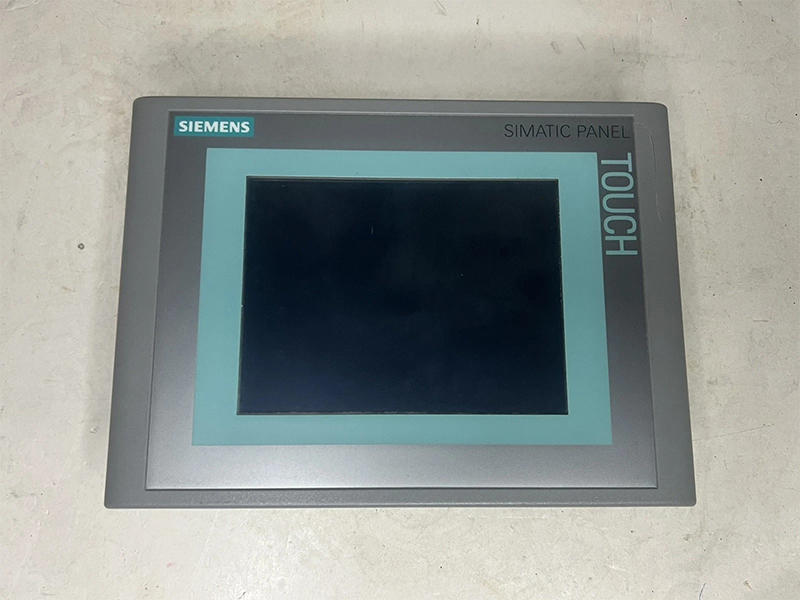

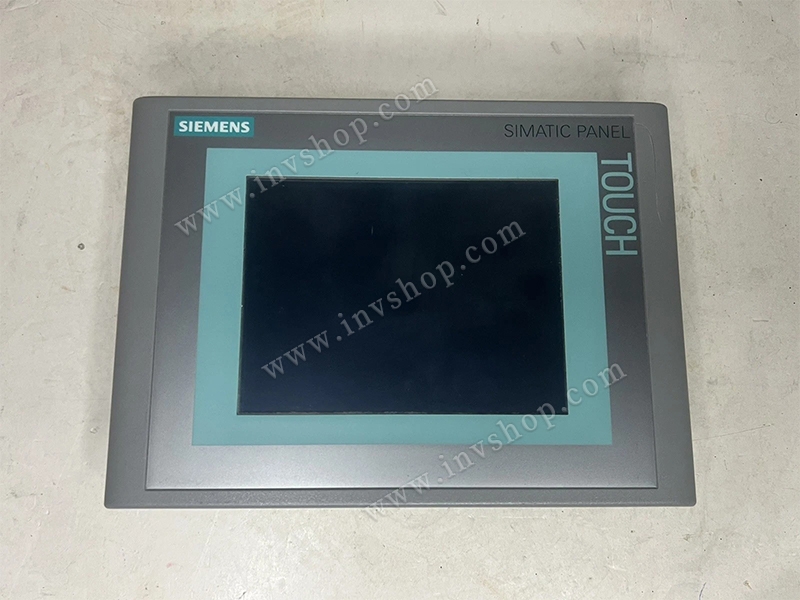

Name: 6AV6 643-0AA01-1AX0.pdf6AV6 643-0AA01-1AX0 Siemens TP277 5.7" 320×240 TFT Touch HMI Panel
Detailed Specifications
| Parameter Item | Exact Technical Index |
|---|---|
| Model Order No. | 6AV6 643-0AA01-1AX0 (SIMATIC TP277 Touch Panel) |
| Brand | Siemens AG |
| Display Size | 5.7 inch TFT LCD |
| Resolution | 320 × 240 Pixels (QVGA) |
| Display Color | 256 STN Colors |
| Touch Type | Analog Resistive Touch Screen |
| Rated Power Supply | DC 24V (20.4V ~ 28.8V tolerance) |
| User Configuration Memory | 4 MB Flash ROM |
| Recipe Storage Memory | 64 KB |
| Alarm Log Buffer | Built-in multi-class alarm recording function |
| Backlight MTBF (25℃) | 50,000 Hours |

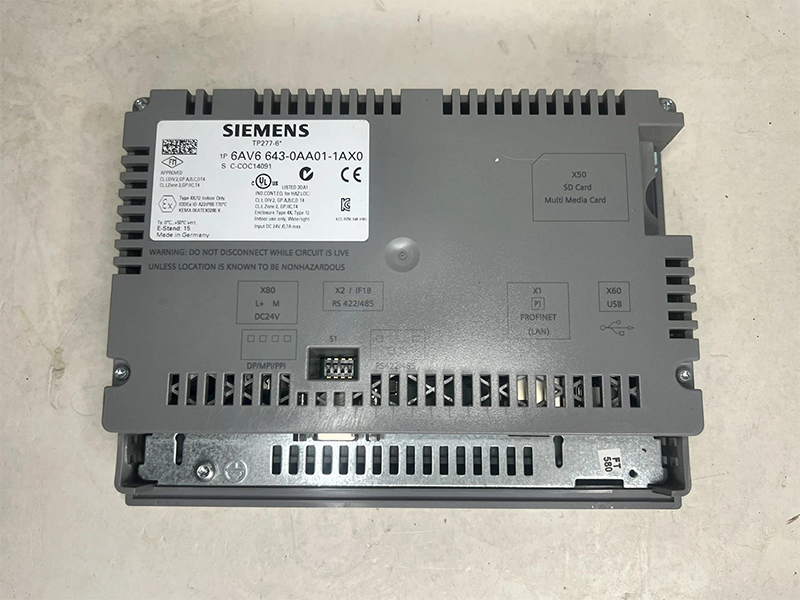

| Interfaces | 1×RJ45 Ethernet, MPI/PROFIBUS DP (RS485), 1×USB Host, MMC Card Slot (Max 128MB) |
| Supported Protocols | PROFINET, MPI, PROFIBUS DP, S7 Communication |
| Configuration Software | WinCC Flexible 2005 SP1 / Higher Version |
| Front Protection Grade | IP65 (NEMA 4X) |
| Rear Protection Grade | IP20 |
| Operating Ambient Temp | 0℃ ~ +50℃ (Non-condensing) |
| Storage & Transport Temp | -20℃ ~ +60℃ |
| Relative Humidity | 10% ~ 90% RH (No condensation) |
| Front Panel Dimension | 212 mm (W) × 156 mm (H) |
| Cabinet Cutout Size | 197⁺¹ mm × 141⁺¹ mm |
| Weight | Approx. 1.1 kg |
| Certifications | CE, UL, CSA |
| Clock Type | Software Synchronized Clock (No battery retention) |
Applications
General Industrial Machinery Automation: Packaging machines, injection molding equipment, small CNC machine tools, textile production lines
Environmental & Water Treatment Industry: Sewage treatment PLC control cabinets, water supply monitoring stations, waste gas detection equipment
Food & Beverage Processing: Filling lines, sealing machines, sterilization process monitoring panels
Logistics & Material Handling: Sorting conveyor systems, automatic palletizing auxiliary control terminals
Legacy Equipment Retrofit Projects: Old S7-300/S7-400 control cabinet HMI replacement, factory production line automation upgrade maintenance
FAQ
Q1: Is 6AV6 643-0AA01-1AX0 still in mass production by Siemens?
A: The TP277 series including 6AV6 643-0AA01-1AX0 has been officially discontinued by Siemens; it can only be purchased as original factory spare parts, and TP700 Comfort panel is the official recommended upgrade model for new projects.
Q2: Which programming software can edit projects for 6AV6 643-0AA01-1AX0?
A: Only WinCC Flexible 2005 SP1 or higher versions support program configuration and download for this HMI; TIA Portal WinCC Comfort cannot directly compile projects for TP277 series without migration conversion.
Q3: Can 6AV6 643-0AA01-1AX0 communicate with S7-1200/S7-1500 new PLCs?
A: It supports PROFINET communication to connect S7-1200/1500, but project compatibility adjustment is required; for stable matching, it is more suitable to pair with classic S7-200/300/400 PLC systems.
Q4: Is stocked 6AV6 643-0AA01-1AX0 genuine Siemens original new spare panel?
A: All in-stock 6AV6 643-0AA01-1AX0 are brand-new original A-grade Siemens spare parts, no second-hand, repaired or counterfeit screens. Each batch undergoes full touch, display and communication testing before delivery with complete inspection report attached.
Q5: Can 6AV6 643-0AA01-1AX0 work in workshop environments with temperature below 0℃?
A: Rated operating ambient temperature of 6AV6 643-0AA01-1AX0 is 0℃~50℃. For environments below 0℃, install cabinet heating components to keep internal temperature within the specified range to avoid backlight flicker and touch response lag.
