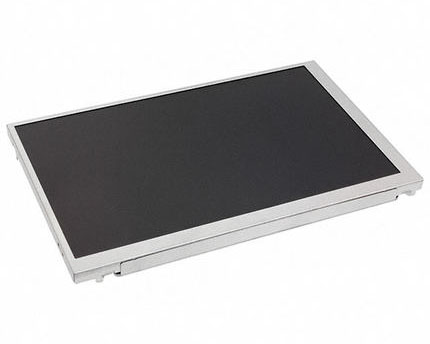

TCG070WVLQAPNN-AN04 Kyocera 7.0" WVGA TFT LCD Module 800x480

TCG070WVLQAPNN-AN04 Overview

The Kyocera TCG070WVLQAPNN-AN04 is the long-duty member of the 7.0-inch WVGA (800 x RGB x 480) TCG070WVLQAPNN family: same AWV normally black cell, same 40-pin parallel RGB input, 500 cd/m2 luminance and a two-string WLED backlight released with a 100,000-hour rating. It is the version we recommend when the display is expected to run for years without being opened, because brightness decay and backlight ageing, not the LCD glass, set the practical service life of such equipment.

The outline is 165 x 104.4 x 8.2 mm with a 152.4 x 91.44 mm active area, the matte anti-glare front suppresses lamp reflections, and the operating range covers -20 to +70 degC with storage from -30 to +80 degC. Colour is 262K native, displayed as 16.7M through FRC, with 50 percent NTSC coverage.

What 100,000 Hours Means in Service

The 100,000-hour figure is the rated time until the backlight falls to 50 percent of its minimum luminance, measured at 25 degC ambient. In practical terms that is more than eleven years of continuous operation, or roughly 27 years at eight hours per day. Two caveats matter for a design review:

• Heat shortens life. Running the module near +70 degC accelerates LED decay; a cabinet with forced air or a metal rear plate that conducts heat away will keep more of the rating.

• Half-brightness is the end point. A 500 cd/m2 panel at 50 percent still delivers around 250 cd/m2, which is enough for an indoor kiosk. A 350 cd/m2 panel would be down to about 175 cd/m2 at the same point, which is where operators start complaining.

Technical Specifications

Long-Duty Applications

• Vending and ticketing kiosks: unattended units that are only opened for cash handling, not for service of the screen.

• Access control and intercom terminals: door stations running continuously in a warm corridor or an unheated lobby.

• Building automation and energy monitoring: wall panels that stay powered for the life of the building system.

• Machine panels in 24/7 plants: process, water treatment and utility equipment where downtime is measured in hours of production.

• Measurement and analysis racks: instruments that stay on for weeks and need a screen that does not drift in brightness.

Backlight Drive and Dimming

Constant current only. The two strings are wired out without an on-board regulator. Use a driver whose current is set from the panel specification, and check that the driver can hold that current from -20 to +70 degC; many simple constant-voltage solutions drift with temperature and silently over-drive the LEDs at cold start.

Dimming. High-frequency PWM is the safe method. Deep dimming by reducing the LED current instead shifts the colour point, because the white LED spectrum changes with drive current.

Thermal path. Mount the module on a metal frame rather than on plastic stand-offs, keep the rear clear of cable bundles, and place the driver outside the hottest zone of the enclosure.

Quality Inspection

Each unit goes through a burn-in run, then display function, dot defects, mura and backlight uniformity are checked. Luminance is sampled against the rated typical value, and the inspection result is stored with the batch number so that a long-life project can be traced after installation.

Packing and Shipping

One module per anti-static bag with foam corners, in a rigid carton marked with model, quantity and handling symbols. Project quantities are packed in master cartons to reduce handling at the customer site. Dispatch is from Hong Kong with tracking and export documents for the destination.

FAQ

Q: Under what conditions is the 100,000-hour rating defined?
A: At 25 degC ambient, measured until luminance drops to 50 percent of the minimum specified value. Higher ambient temperature shortens the figure, so thermal design of the enclosure matters.

Q: Is AN04 brighter than the other family members?
A: No. AN01, AN02 and AN04 are all 500 cd/m2; AN00 is 350 cd/m2. The difference between AN04 and AN01 or AN02 is the released backlight life rating and a 0.3 mm shallower outline.

Q: Can I swap AN04 into a housing designed for AN00?
A: The footprint is identical at 165 x 104.4 mm and the depth is the same 8.2 mm as AN00, so mechanically it fits. Electrically the interface is the same 40-pin RGB, but the light output is higher, so re-check the brightness setting.

Q: How should dimming be implemented for night operation?
A: Use high-frequency PWM from the backlight driver. Reducing the LED current instead of the duty cycle changes the white point and makes the screen look warmer at low brightness.

Q: Does the panel include a touch sensor?
A: No. It is a display module only; a separate resistive or capacitive overlay is needed if touch input is required.
