TM116VDSP01-00 TIANMA 11,6 Zoll 1920 * 1080 LCD-Bildschirm Langlebig

TM116VDSP01-00 TIANMA 11,6 Zoll 1920 * 1080 LCD-Bildschirm Langlebig

TM116VDSP01-00 ist ein Tianma 11,6-Zoll industrielles LCD-Modul mit einer Auflösung von 1366 × 768, WLED-Hintergrundbeleuchtung, Helligkeit von 380cd/m2 und klarem und empfindlichem Bild.

Der Preis: ~~€192.85~~ €190.13 / Mitglied

数量:		Unit(s) MOQ: 1



In Favoriten

Berechnung der fracht

WINNI (HK) ELECTRONIC CO., LIMITED

+86-13827441621

+0086 13827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Erforderlich:*

Produktmodell*	Zielpreis	Qty *

Nachricht

Ihre Kontaktdaten:

Weitere Informationen:

Name: *

Herr.

Frau.

1. Angebot mit Versand Fracht?

Email : *

Telefon:

2. Welchen Carrier perfert ihr??

Unternehmen:

	Fedex		UPS		DHL
	TNT		andere

Land:*

Produkte Klassifizierung

-81%
OFF

€49.80

€90.54

Produkte Details

Kommentare

BEWERTUNG

TM116VDSP01-00 Datasheets Download

Name: TM116VDSP01-00.pdf

LCD screen

Marke

TIANMA

Modell

TM116VDSP01-00

Qualität

test ok before ship it

RMA-Politik

RMA 3 month

Bestand

Probe

Paid Sample

Lagerort

China

Lieferung

WorldWide

Vorlaufzeit

1 week

Preislaufzeit

T/T, Western Union, MoneyGram, PayPal, Escrow etc

Gewicht

1.500Kg

TM116VDSP01-00 TIANMA 11.6 inch 1920*1080 LCD screen Durable

Overview

TM116VDSP01-00 is an ultra-high-brightness industrial-grade a-Si TFT-LCD LCM (Liquid Crystal Module) officially manufactured by Tianma. This 11.6-inch display is engineered for extreme visibility, featuring 1600 cd/m² peak brightness and advanced SFT (Super Fine TFT) technology, making it ideal for outdoor and high-ambient-light industrial applications. It delivers native 1920(RGB)×1080 FHD resolution with a 16:9 aspect ratio and RGB vertical stripe pixel arrangement, ensuring crisp, high-detail visuals even under direct sunlight

Parameter Table

Parameter	Detailed Factory Specification
Model Name	TM116VDSP01-00
Manufacturer	TIANMA
Diagonal Size	11.6 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1920(RGB)×1080, 16:9, FHD
Pixel Structure	RGB Vertical Stripe
Active Area	256.32(H) × 144.18(V) mm
Physical Size	273.5(H) × 166.5(V) × 12.5(D) mm
Mass	527g (Typ.)
Surface Coating	Hard coating
Luminance	1600 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 ms (Typ.) (Tr+Td)
Viewing Angle	88/88/88/88 (Typ.) (CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M, 70% NTSC
Light Source	6S8P WLED, 30K hrs, Without Driver
Touch Panel	Without Touch Panel
Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ 80 °C
Storage Temperature	-30 ~ 85 °C

Application Field

Outdoor and sunlit industrial Human-Machine Interface (HMI) and control panels
Field monitoring terminals and high-brightness industrial display devices
Embedded industrial control systems for outdoor and high-ambient-light environments
Portable industrial testing instruments and field detection devices
Transportation and vehicle-mounted industrial terminals requiring sunlight readability
Old high-brightness industrial LCD panel replacement and equipment renovation projects
Medical and industrial display applications requiring high visibility in bright conditions

FAQ

Q1: What makes TM116VDSP01-00 ideal for outdoor use?

A1: Its 1600 cd/m² ultra-high brightness and 88° full viewing angle ensure clear visibility even in direct sunlight, making it perfect for outdoor industrial terminals.

Q2: Does TM116VDSP01-00 include a built-in touch screen?

A2: No, this is a non-touch LCD panel, designed for high-brightness, high-resolution industrial display applications.

Q3: What interface does TM116VDSP01-00 use?

A3: It uses a 30-pin LVDS interface (2-channel 8-bit), widely compatible with mainstream industrial mainboards and embedded controllers.

Q4: Does this panel include a built-in backlight driver?

A4: No built-in driver IC. The 6S8P WLED backlight requires an external constant-current drive board.

Q5: What is the color gamut of TM116VDSP01-00?

A5: It supports 70% NTSC color gamut and 16.7M display colors, delivering rich and accurate colors for industrial interfaces.

Q6: What is the operating temperature range of TM116VDSP01-00?

A6: Operating temperature: -20°C ~ +80°C; Storage temperature: -30°C ~ +85°C. It performs reliably in a wide range of industrial conditions.

Q7: Can you provide technical documents for TM116VDSP01-00?

A7: Certainly. After order confirmation, we provide free official Tianma datasheet, 30-pin LVDS pinout diagram and wiring guide for TM116VDSP01-00.

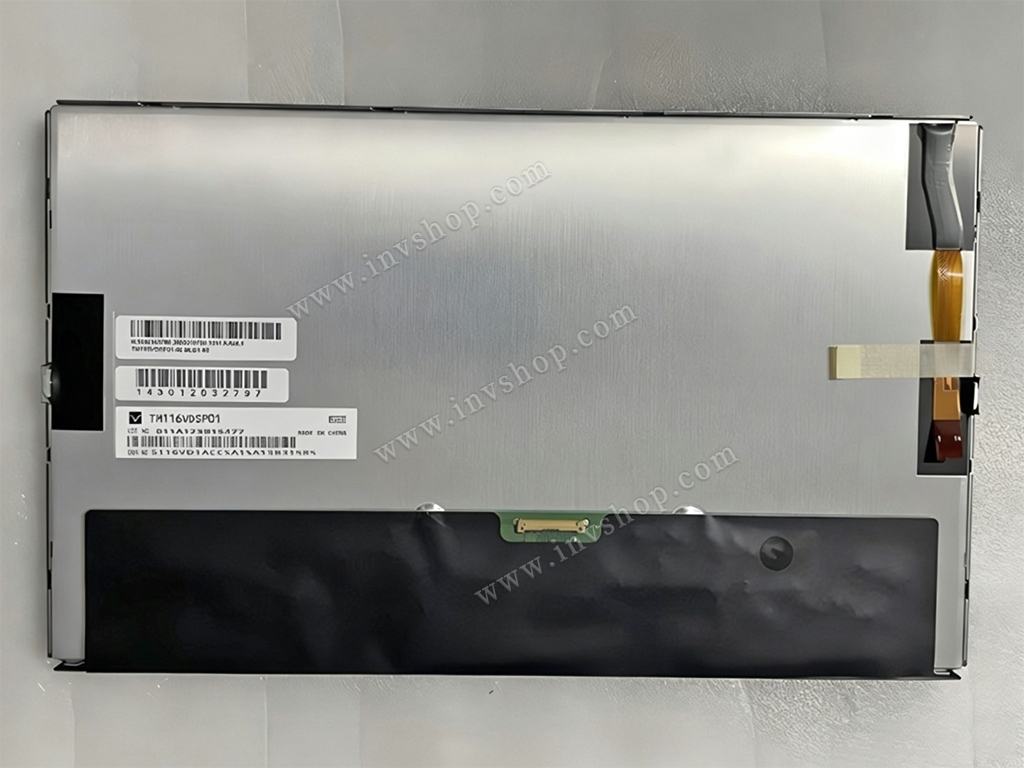

TM116VDSP01-00 LCD screen

TM116VDSP01-00 TIANMA 11.6 inch 1920*1080 LCD screen Durable

Overview

Parameter Table

Parameter	Detailed Factory Specification
Model Name	TM116VDSP01-00
Manufacturer	TIANMA
Diagonal Size	11.6 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1920(RGB)×1080, 16:9, FHD
Pixel Structure	RGB Vertical Stripe
Active Area	256.32(H) × 144.18(V) mm
Physical Size	273.5(H) × 166.5(V) × 12.5(D) mm
Mass	527g (Typ.)
Surface Coating	Hard coating
Luminance	1600 cd/m² (Typ.)
Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	25 ms (Typ.) (Tr+Td)
Viewing Angle	88/88/88/88 (Typ.) (CR≥10)
Operating Mode	SFT, Normally Black, Transmissive
Support Color	16.7M, 70% NTSC
Light Source	6S8P WLED, 30K hrs, Without Driver
Touch Panel	Without Touch Panel
Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Operating Temperature	-20 ~ 80 °C
Storage Temperature	-30 ~ 85 °C

Application Field

Outdoor and sunlit industrial Human-Machine Interface (HMI) and control panels
Field monitoring terminals and high-brightness industrial display devices
Embedded industrial control systems for outdoor and high-ambient-light environments
Portable industrial testing instruments and field detection devices
Transportation and vehicle-mounted industrial terminals requiring sunlight readability
Old high-brightness industrial LCD panel replacement and equipment renovation projects
Medical and industrial display applications requiring high visibility in bright conditions

FAQ

Q1: What makes TM116VDSP01-00 ideal for outdoor use?

A1: Its 1600 cd/m² ultra-high brightness and 88° full viewing angle ensure clear visibility even in direct sunlight, making it perfect for outdoor industrial terminals.

Q2: Does TM116VDSP01-00 include a built-in touch screen?

A2: No, this is a non-touch LCD panel, designed for high-brightness, high-resolution industrial display applications.

Q3: What interface does TM116VDSP01-00 use?

A3: It uses a 30-pin LVDS interface (2-channel 8-bit), widely compatible with mainstream industrial mainboards and embedded controllers.

Q4: Does this panel include a built-in backlight driver?

A4: No built-in driver IC. The 6S8P WLED backlight requires an external constant-current drive board.

Q5: What is the color gamut of TM116VDSP01-00?

A5: It supports 70% NTSC color gamut and 16.7M display colors, delivering rich and accurate colors for industrial interfaces.

Q6: What is the operating temperature range of TM116VDSP01-00?

A6: Operating temperature: -20°C ~ +80°C; Storage temperature: -30°C ~ +85°C. It performs reliably in a wide range of industrial conditions.

Q7: Can you provide technical documents for TM116VDSP01-00?

A7: Certainly. After order confirmation, we provide free official Tianma datasheet, 30-pin LVDS pinout diagram and wiring guide for TM116VDSP01-00.

TM116VDSP01-00 LCD screen

Die kunden.:

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Great

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Great deal! Would buy from again

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Excellent, many thanks

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

NO PROBLEM. GOOD WORK

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Fast delivery

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Worked Great

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Good quality products

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

good

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

item as described and packaged well

Der Preis:

Qualität:

Leicht:

BEI der Geschwindigkeit:

Allgemeine BEWERTUNG:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Bis： TM116VDSP03 TIANMA 11,6 Zoll 1920 * 1080 LCD-Anzeige

Nächste：TM116VDGP01 TIANMA 11,6 Zoll 1920 * 1080 LCD-Panel

TM116VDSP01-00 Zusammenfassung

TM116VDSP01-00 verfügt über eine breite Sichtwinkelleistung, ist kompatibel mit Standard-Schnittstellen und kann in einer breiten Temperaturumgebung stabil arbeiten. Das Produkt ist Störschutz, strukturell stark und langlebig, geeignet für industrielle Steuerterminals, Fahrzeugausrüstung, Erkennungsinstrumente und eingebettete Anzeigeszenarien.
