10.4 inch TFT LCD for Industrial HMI | AA104XF12--T1

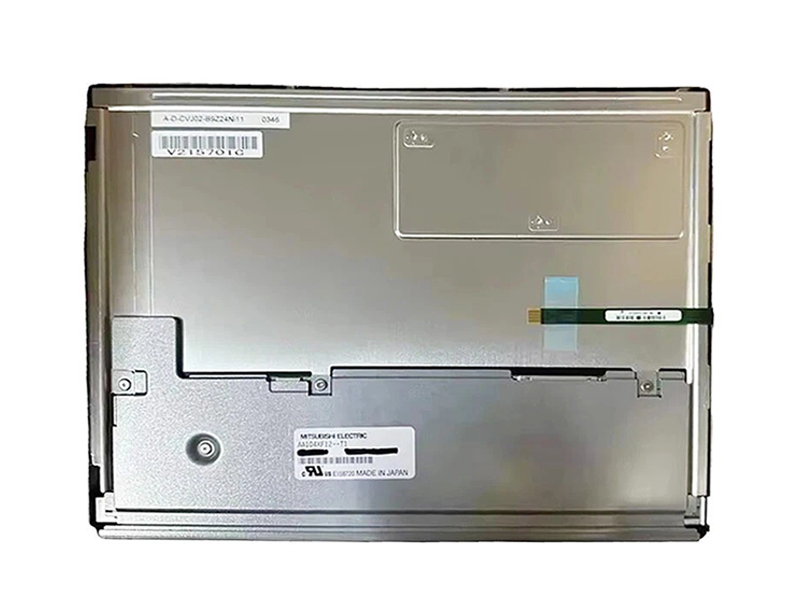

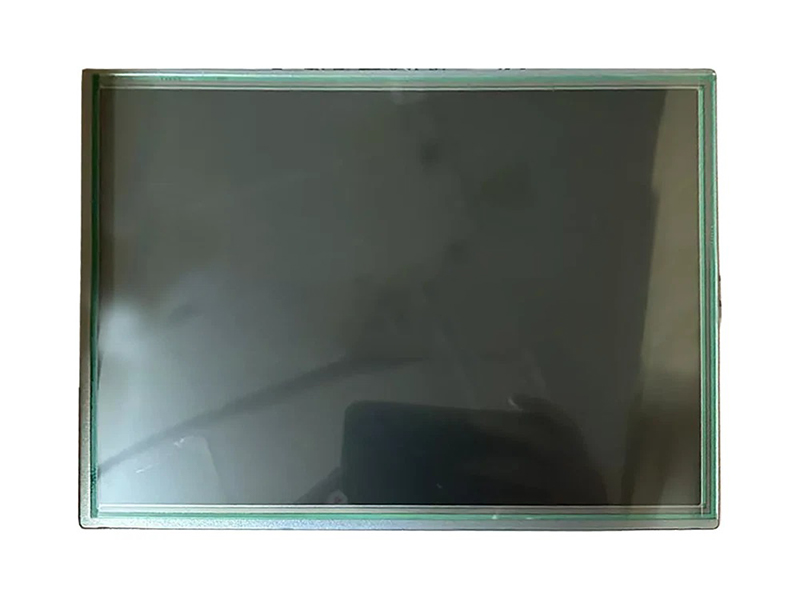

The Mitsubishi AA104XF12--T1 is a 10.4-inch industrial a-Si TFT-LCD module designed for demanding control and monitoring applications. It provides 1024 × 768 XGA resolution, a single-channel LVDS interface, a typical power consumption of 5.2 W, and an operating temperature range of -30°C to 80°C. The transmissive, normally white display also features a 100,000-hour WLED backlight and an 8-bit color option for clear industrial visualization.

Features

• 10.4-inch a-Si TFT-LCD LCM with a normally white, transmissive TN display mode
• 1024(RGB) × 768 XGA native resolution with a 210.4 × 157.8 mm active area
• Pixel pitch of 0.0685 × 0.2055 mm (H × V)
• Single-channel LVDS interface supporting 6-bit or 8-bit input
• 24.0 V typical and 28.8 V maximum panel voltage
• Typical power consumption of 5.2 W
• Contrast ratio of 700:1 and typical response time of 4/12 ms Tr/Td
• Typical viewing angles of 80/80/65/65 degrees at CR ≥ 10
• Color depth options of 262K/16.7M colors (6-bit/8-bit), with 6485K color temperature and 54% sRGB coverage based on CIE 1931
• WLED backlight rated for 100,000 typical hours
• 60 Hz refresh rate
• Wide operating and storage temperature range from -30°C to 80°C

Applications

• Industrial human-machine interfaces and operator panels
• Factory automation and machinery control systems
• Process monitoring and industrial instrumentation
• Equipment status, production, and diagnostic displays
• Data acquisition and industrial test systems
• Control consoles requiring an XGA-resolution LVDS display

What resolution and display size does the Mitsubishi AA104XF12--T1 provide?

The module has a 10.4-inch display with a native resolution of 1024(RGB) × 768 pixels in XGA format. Its active area measures 210.4 × 157.8 mm.

Which interface does the panel use?

The AA104XF12--T1 uses a single-channel LVDS interface that supports 6-bit or 8-bit data. The specified panel voltage is 24.0 V typical and 28.8 V maximum.

What are the operating and storage temperature limits?

Both the operating and storage temperature ranges are specified as -30°C to 80°C, supporting use across a broad range of industrial environments.

What are the typical power consumption and backlight life?

Typical power consumption is 5.2 W. The WLED backlight has a typical lifetime of 100,000 hours.

What optical characteristics are specified?

The transmissive TN panel offers a typical contrast ratio of 700:1, typical viewing angles of 80/80/65/65 degrees at CR ≥ 10, and a typical response time of 4/12 ms Tr/Td. Color depth is available at 262K/16.7M colors for 6-bit/8-bit operation.

What is the refresh rate and color temperature?

The display operates at a 60 Hz refresh rate. Its specified color temperature is 6485K, with 54% sRGB coverage based on CIE 1931.
