Mitsubishi Electric AA084SC01-T2 8.4 inch SVGA TFT-LCD Module with 4-Wire Resistive Touch 800x600

Product Overview

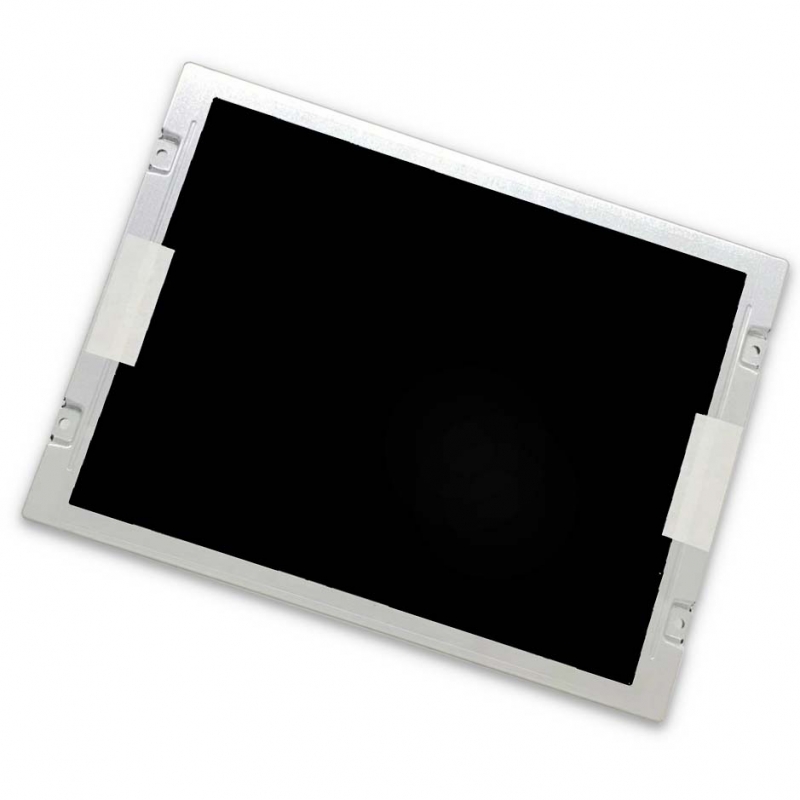

The Mitsubishi Electric AA084SC01-T2 (official part number AA084SC01--T2) is an 8.4 inch SVGA (800x600) a-Si IPS, Normally Black, transmissive TFT-LCD module with an attached 4-wire analog resistive touch panel with anti-glare 3H hard coating. It offers 950:1 typical contrast, 85/85/85/85 typical viewing angles, a 20-pin LVDS (6/8-bit) interface and a 100,000 h typical LED edge-light backlight, rated for -30 to 80 C. The resistive surface responds to gloves, a stylus or a finger, making it a durable choice for rugged industrial HMI and instrument panels.

Why Choose Mitsubishi Electric Technology?

• Proven manufacturer: Mitsubishi Electric is a globally recognized industrial electronics supplier with long-standing automotive and industrial display experience.

• IPS wide viewing: IPS delivers symmetric 85/85/85/85 typical angles, keeping data readable across the operator's workstation.

• Wide temperature range: -30 to 80 C operation suits cold factory floors, vehicles and outdoor-semi enclosures.

• Long-life LED backlight: 100,000 h typical to 50% brightness extends maintenance intervals.

• Gloved-friendly resistive touch: the 4-wire panel with 3H hard coating tolerates stylus and glove operation without a precise finger.

Technical Specifications

Typical Applications

• Rugged industrial HMI: panels operated with gloves or a stylus on shop-floor machinery.

• Machine tools: CNC consoles and control units with frequent, durable touch input.

• Test and analytical instruments: bench meters, analyzers and medical-laboratory equipment.

• Semi-outdoor stations: kiosks and control posts benefiting from the anti-glare 3H surface.

• Transportation equipment: cabin and vehicle consoles under wide temperature swings.

FAQ

What panel type is the AA084SC01-T2 (official AA084SC01--T2)?

It is an a-Si TFT-LCD with IPS technology, Normally Black mode and a transmissive surface. IPS gives symmetric 85/85/85/85 typical viewing angles (CR>=10), so operators can read menus from side and upper positions. Normally Black means pixels block light at rest, producing deep black and the 950:1 typical contrast used in industrial HMI and instrumentation.

What response time does the AA084SC01-T2 provide?

Typical response time is 12/12 ms (Tr/Td). This level comfortably supports static dashboards, parameter menus, table data and slow-moving process graphics on an industrial HMI. It is not designed for fast-paced video or gaming motion; for controller-driven refresh, confirm timing compatibility in the official AA084SC01--T2 datasheet during selection.

What connector and pinout does the AA084SC01-T2 use?

The panel uses a 20-pin LVDS interface for 6/8-bit video, while the 4-wire resistive touch panel has its own separate leads. Logic runs at 3.3V typical and the backlight takes 12.0V +/-1.2V. Because pin definitions are manufacturer-specific, request the official AA084SC01--T2 datasheet pinout when you inquire; we provide it with the quotation rather than guessing a generic cable.

Can the AA084SC01-T2 start at low temperatures?

The module is rated for an operating range of -30 to 80 C, with storage from -30 to 80 C. Its LED edge-light backlight reaches brightness quickly at cold start, and the built-in LED driver removes an external inverter. Avoid turning on a frozen unit after condensation; allow gradual warming if transported in freezing conditions, then check uniformity before production deployment.

What power supply does the AA084SC01-T2 need, and what is its power draw?

Logic supply is 3.3V typical; the edge-light backlight input is 12.0V +/-1.2V, and the LED driver is implemented on the module so no external inverter is required. The backlight is unreplaceable and rated to 100,000 h typical at 50% brightness. Exact current depends on display content and dimming, so refer to the official datasheet for your power budget.

How is the AA084SC01-T2 packed for export shipping?

Each unit is sealed in an anti-static ESD bag, cushioned with foam inside a rigid master carton to protect the 460 g module and resistive surface. Shipments leave our Hong Kong warehouse by courier or insured freight; customers inspect on arrival and report visible transit damage promptly so a claim or replacement can be arranged.

Quality Assurance and Support

• ✓ Original Mitsubishi Electric Product: genuine module sourced through established supply channels.

• ✓ Professional Technical Support: engineers assist with LVDS, touch calibration and mechanical integration.

• ✓ Quality Inspection: every unit is electrically and optically checked before shipment.

• ✓ Fast Shipping: dispatch from the Hong Kong warehouse with tracked courier options.

• ✓ 6-Month RMA: return material authorization for manufacturing defects.

• ✓ 30-Day Returns: straightforward return handling for unused, unopened units.

Packing and Shipping

Each AA084SC01-T2 module is sealed in an anti-static ESD bag, cushioned with foam inside a rigid master carton to protect the 460 g panel, resistive touch surface and edge-light assembly. Shipments leave the Hong Kong warehouse by express courier or insured freight; customers inspect the package on arrival and report visible transit damage promptly so a replacement or claim can be arranged.
