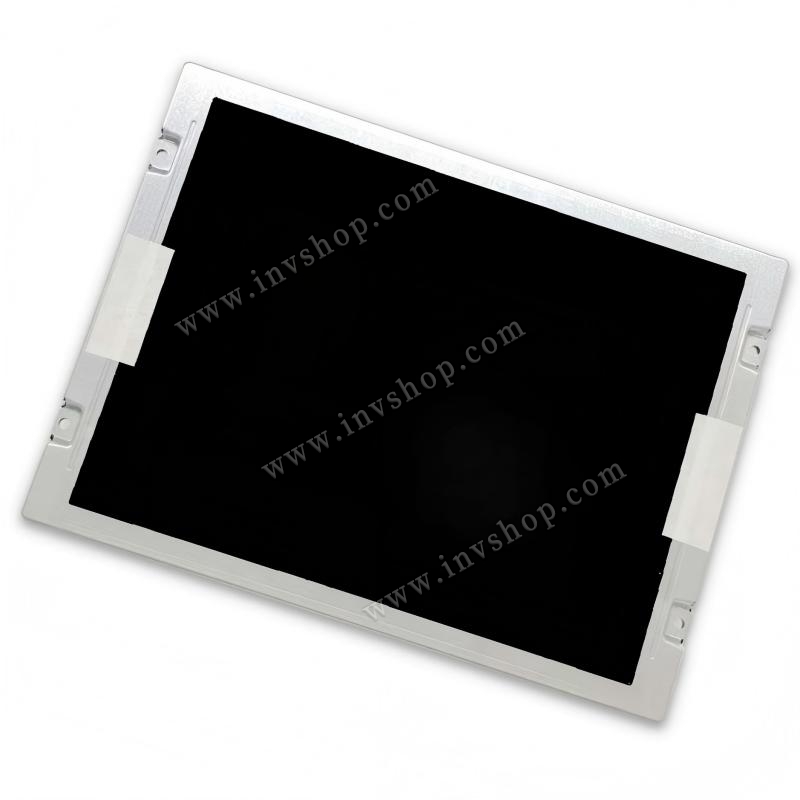

Mitsubishi Electric AA084SC01ADA11 8.4 inch SVGA TFT-LCD Module with Touch 800x600

Product Overview

The Mitsubishi Electric AA084SC01ADA11 is an 8.4 inch SVGA color TFT-LCD module (800x600) with an attached touchscreen assembly, built on a transmissive IPS, Normally Black panel. It combines a 1000:1 typical contrast ratio, symmetric 85/85/85/85 typical viewing angles and a WLED edge-light backlight with a 100,000 h typical lifetime, connected through a 20-pin LVDS interface. Rated for -30 to 80 C operation, it targets industrial HMI, medical equipment, self-service kiosks and test instruments where readability and long-term stability matter.

Why Choose Mitsubishi Electric Technology?

• Proven manufacturer: Mitsubishi Electric is a globally recognized industrial electronics supplier with a long track record in automotive and industrial display applications.

• IPS wide viewing: IPS technology delivers symmetric 85/85/85/85 typical angles, so multiple operators can read the screen from side and upper positions.

• Wide temperature range: The -30 to 80 C rating supports harsh field, vehicle and cabinet environments without an extra heating stage.

• Long-life backlight: The WLED edge-light reaches a 100,000 h typical lifetime, reducing replacement cycles and servicing cost.

• Integrated driver: The LED driver is built into the module, simplifying power design and removing an external inverter.

Technical Specifications

Typical Applications

• Industrial HMI panels: operator interfaces on factory automation machinery and control consoles.

• Medical devices: monitors and control interfaces on diagnostic and therapeutic equipment.

• POS and kiosks: touch-driven self-service terminals and public information displays.

• Test and measurement: instruments, analyzers and benches needing stable parameter readouts.

• Transportation: in-vehicle and cabin equipment with touch control under wide temperature swings.

FAQ

How long is the AA084SC01ADA11 quotation valid, and what information do I need to send for pricing?

Send the exact model AA084SC01ADA11, required quantity, destination country and preferred shipping method. We reply within one business day with current pricing; standard quotations are typically held valid for 15-30 days, and larger orders receive volume-based tier pricing. Because market conditions fluctuate, prices are not published on this page; confirm the offer before placing an order.

Can the AA084SC01ADA11 be customized for my project?

We support practical customization around the standard module, including cable harness length and connector matching, mounting bracket preparation and integration guidance for the attached touchscreen assembly. Panel-level optical or structural changes must be checked against the manufacturer datasheet first. Send your mechanical drawing, interface requirement and quantity; our engineers confirm feasibility before quoting.

Can the AA084SC01ADA11 be mounted in portrait rather than landscape?

The panel natively drives an 800x600 landscape 4:3 image. Rotation to portrait is normally handled by the controller or graphics software rather than the panel itself. Mechanically the module can be oriented either way, but verify the 209.5 x 159 mm outline, mounting holes and touch axis calibration for your enclosure before production.

Does the AA084SC01ADA11 suffer from image retention or ghosting?

Like most IPS LCD modules, the AA084SC01ADA11 may show faint temporary afterimage when a fixed bright UI stays on screen for long periods; it typically fades after normal operation. Avoid permanently static high-contrast elements, use screen dimming or a moving screensaver, and the 1000:1 typical contrast remains clear for HMI menus and data readouts.

What is the product lifecycle and discontinuation policy for this module?

Mitsubishi Electric supplies industrial displays over long production runs, and end-of-life changes are normally announced in advance with cross-reference suggestions. We keep spare units where possible and share lead-time confirmation at inquiry. Since exact remaining production life cannot be promised on a listing, larger programs should reserve buffer stock and verify availability with us before commitment.

Is the AA084SC01ADA11 suitable for outdoor high-brightness environments?

With a typical 480 cd/m2 backlight and 85/85/85/85 IPS viewing angles, the module works well in covered outdoor kiosks, sunshaded machines and semi-exposed HMI stations. Under direct sunlight a sun hood, glare film or a brighter matched panel is recommended. Its -30 to 80 C operating range and 100,000 h backlight lifetime support demanding field use.

Quality Assurance and Support

• ✓ Original Mitsubishi Electric Product: genuine module sourced through established supply channels.

• ✓ Professional Technical Support: engineers assist with interface, mechanical and integration questions.

• ✓ Quality Inspection: every unit is electrically and optically checked before shipment.

• ✓ Fast Shipping: dispatch from the Hong Kong warehouse with tracked courier options.

• ✓ 6-Month RMA: return material authorization for manufacturing defects.

• ✓ 30-Day Returns: straightforward return handling for unused, unopened units.

Packing and Shipping

Each AA084SC01ADA11 module is sealed in an anti-static ESD bag, cushioned with foam inside a rigid master carton to protect the panel surface and attached touchscreen assembly. Shipments leave the Hong Kong warehouse by express courier or insured freight; customers inspect the package on arrival and report visible transit damage promptly so a replacement or claim can be arranged.
