4.7 inch TFT LCD for Industrial HMI - KCG047QV1AA-A21

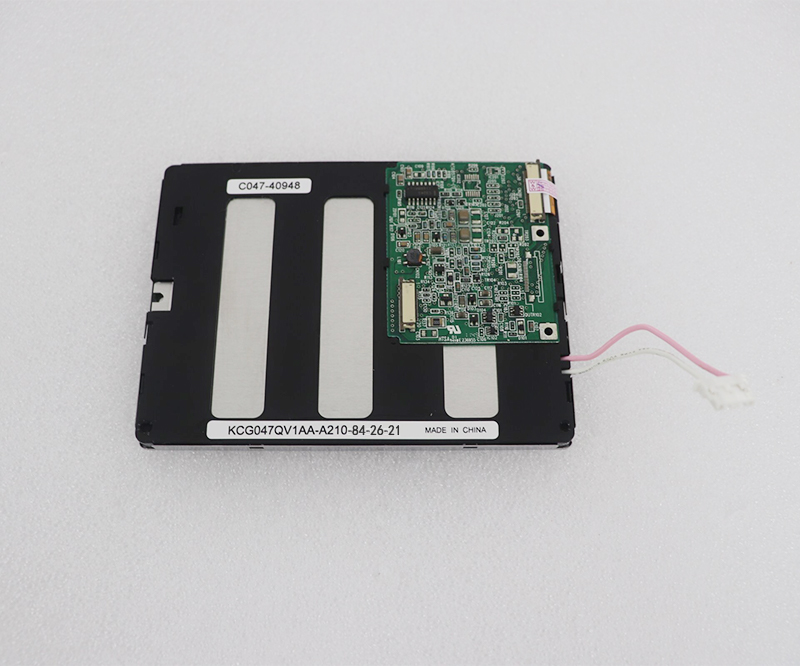

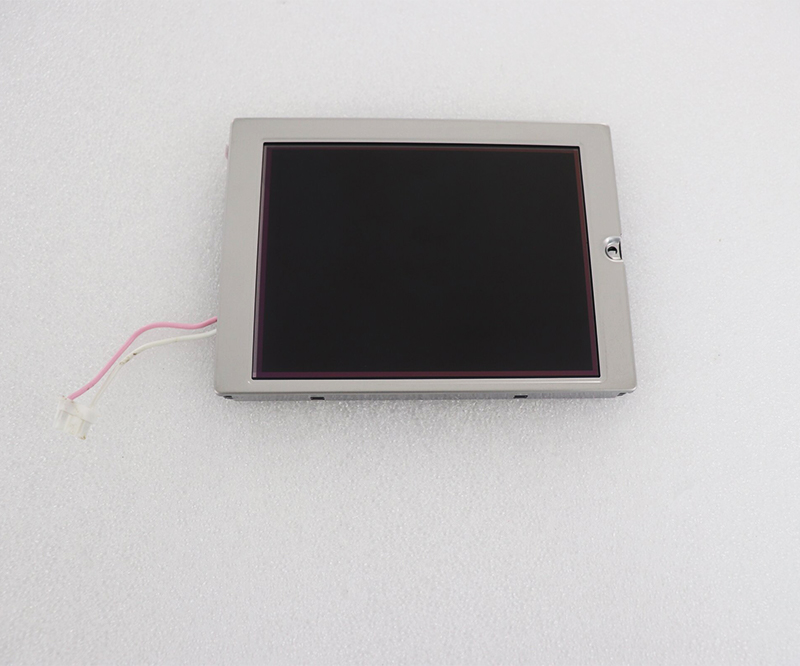

The Kyocera KCG047QV1AA-A21 is a 4.7-inch industrial CSTN-LCD LCM featuring a 320 × 240 QVGA resolution and a transmissive, normally black STN display mode. Designed for industrial control and monitoring applications, it provides a specified brightness of 160, typical 30:1 contrast, an 8-bit parallel interface, and an operating temperature range of 0 to 50 °C.

Features

• 4.7-inch CSTN-LCD LCM with a color, transmissive, normally black STN display mode
• QVGA resolution of 320 (RGB) × 240 with a 0.100 × 0.300 mm pixel pitch
• Specified brightness of 160 and typical contrast ratio of 30:1
• Typical viewing angles of 50°/50°/20°/30° at CR ≥ 2
• Response time of 190/180 ms (Tr/Td) with a 75 Hz refresh rate
• Color depth with a color temperature of 7351 K and 46% sRGB coverage based on CIE 1931
• CCFL backlight with a typical lifetime of 54,000 hours
• Operating temperature of 0 to 50 °C and storage temperature of -20 to 60 °C
• Parallel data interface with one channel and 8-bit data configuration
• Outline dimensions of 122.4 × 90 mm and active area of 95.98 × 71.98 mm
• Power consumption of 132 mW typical and 198 mW maximum

Applications

• Industrial control-panel and operator-interface displays
• Industrial equipment status monitoring systems
• Embedded industrial HMI systems requiring a compact QVGA display
• Industrial data visualization and process-monitoring equipment

What display technology and resolution does the Kyocera KCG047QV1AA-A21 use?

It is a 4.7-inch CSTN-LCD LCM with a transmissive, normally black STN display mode and a 320 (RGB) × 240 QVGA resolution.

What interface is provided on the KCG047QV1AA-A21?

The module uses a parallel data interface with one channel and an 8-bit data configuration.

What are the operating and storage temperature ranges?

The specified operating range is 0 to 50 °C, while the storage range is -20 to 60 °C.

What backlight is used, and what is its specified lifetime?

The display uses a CCFL backlight with a typical lifetime of 54,000 hours.

What are the module's outline and active-area dimensions?

The outline dimensions are 122.4 × 90 mm, and the active area measures 95.98 × 71.98 mm.

What optical performance is specified for the display?

The specified brightness is 160, with a typical contrast ratio of 30:1. Typical viewing angles are 50°/50°/20°/30° at CR ≥ 2, and the response time is 190/180 ms (Tr/Td).

What is the specified power consumption?

Typical power consumption is 132 mW, and maximum power consumption is 198 mW.
