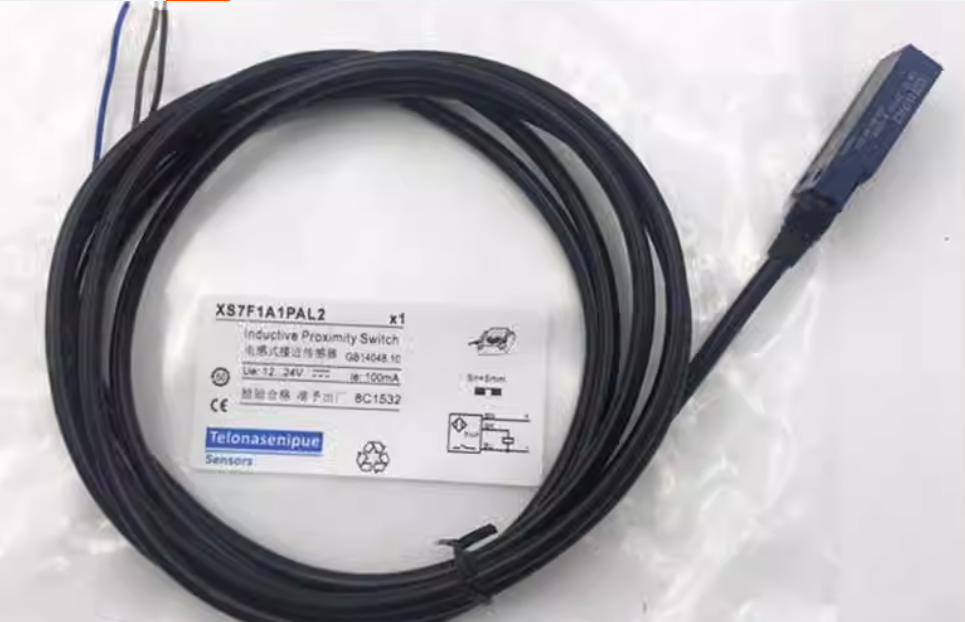

XS7F1A1PAL2 Proximity switch inductance sensor

XS7F1A1PAL2 Product Overview

The XS7F1A1PAL2 is a high-performance inductive proximity sensor from the renowned Osisense XS series manufactured by Schneider Electric (formerly branded as Telemecanique Sensors). The XS7F1A1PAL2 is designed for non-contact detection of metallic objects in industrial automation and manufacturing control applications. Inductive proximity sensors work by generating a high-frequency electromagnetic field from a coil wound on a ferrite core - when a metallic target enters this field, eddy currents induced in the metal cause a change in the sensor's oscillation amplitude, which triggers a solid-state output switch. This non-contact sensing principle means there is no physical wear on the sensor or target, resulting in exceptionally long operational life even in high-cycle counting applications. The XS7F1A1PAL2 features a compact rectangular module housing measuring 15mm x 32mm x 8mm, constructed from durable PBT (polybutylene terephthalate) plastic that provides excellent resistance to mechanical stress, vibration, and industrial chemicals commonly found in factory environments.

About Schneider Electric

Schneider Electric SE (EPA: SU) is a global leader in digital transformation of energy management and industrial automation, headquartered in Rueil-Malmaison, France. With revenues exceeding 35 billion euros and operations in more than 100 countries, Schneider Electric employs over 150,000 people worldwide. The company's history traces back to 1836 with铁 and Schneider, evolving through acquisitions including Telemecanique Sensors, a French pioneer in industrial sensors and limit switches founded in 1954. The Osisense XS series inductive proximity sensors are a flagship product line within Schneider Electric's industrial automation portfolio, trusted by manufacturing engineers worldwide for their reliability, precision, and long-term availability. Schneider Electric's commitment to sustainable manufacturing and extended product lifecycle support (typically 10+ years) makes their sensors the preferred choice for industrial equipment OEMs requiring stable, long-term production runs.

How Inductive Proximity Sensors Work

Inductive proximity sensors detect metallic objects without physical contact through the following principle:

1. Electromagnetic Field Generation: An oscillator circuit generates a high-frequency (typically 100kHz to 1MHz) alternating electromagnetic field from a flat coil LC resonant circuit at the sensor's sensing face

2. Target Detection: When a conductive metallic target enters the electromagnetic field, eddy currents are induced within the target metal

3. Oscillation Damping: These eddy currents create a counter-field that dissipates energy from the sensor's oscillator circuit, reducing the oscillation amplitude

4. Signal Conditioning: A threshold detector monitors the oscillation level and triggers a switching output when the amplitude falls below the threshold (target detected)

5. Solid-State Output: The PNP transistor output switches, sinking current from the load to ground (for PNP) or sourcing current from the supply (for NPN)

This sensing principle provides virtually unlimited operational life since there is no mechanical contact between the sensor and target object.

Key Features of XS7F1A1PAL2

• 5mm Sensing Distance: Rated nominal sensing range of 5mm for reliable metal object detection

• 12-24VDC Operation: Wide operating voltage range compatible with standard industrial 24V control systems

• PNP Transistor Output: Solid-state PNP output for sinking load current to ground, compatible with PLC inputs

• IP68 Ingress Protection: Fully sealed against dust and temporary water immersion (up to 1m depth)

• LED Status Indicator: Built-in LED shows sensor output status for easy troubleshooting during installation

• 2 Meter Cable: Integral 2m cable for straightforward connection to control cabinets without additional connectors

• Compact PBT Housing: 15x32x8mm rectangular module in durable PBT plastic for chemical and vibration resistance

• High Switching Frequency: Fast response suitable for counting and positioning applications on high-speed production lines

• Short-Circuit Protection: Protected against output short circuits to ground or supply

• Wide Operating Temperature: Rated from -25C to +70C for deployment in varied industrial environments

Technical Specifications

Inductive vs Capacitive vs Photoelectric Sensors

Typical Applications

• Conveyor Belt Position Sensing: Detecting metal pallets, containers, or machined parts on manufacturing conveyors

• Parts Counting: Counting metal components on automated assembly lines without physical contact

• Metal Detection in Packaging: Verifying presence of metal foil lids or metal clips in packaging equipment

• Hydraulic Cylinder End Detection: Sensing piston position in pneumatic and hydraulic cylinders

• Machine Tool Status Monitoring: Detecting tool position and tool change events in CNC machines

• Elevator Floor Positioning: Precise floor position detection in elevator systems

• Parking System Vehicle Detection: Non-contact vehicle presence detection in automated parking systems

• Food Processing Equipment: Metal detection in food handling and packaging lines

• Glass Manufacturing: Detecting metal molds and fixtures in glass production equipment

• Wind Turbine Monitoring: Pitch control and position sensing in renewable energy systems

Installation and Wiring

• Supply Voltage: Connect 12-24VDC to the brown (+) and blue (-) leads

• PNP Output: The black output lead sources current from the load to ground when activated - connect between the load and the positive supply

• Mounting: The rectangular module can be flush-mounted using the standard mounting hole pattern

• Sensing Face Orientation: The sensing face is marked on the sensor body - ensure this face is directed toward the target

• Metal Surroundings: Maintain minimum clearances from surrounding metal to prevent false triggering

• LED Function: LED illuminates when the output is active (target detected)

• Cable Protection: Route the cable to avoid mechanical damage - use cable glands where entering enclosures

Quality Assurance and Support

• Original Quality Proximity Sensor: High-quality inductive sensor meeting Schneider Electric specifications

• Function-Tested: All sensors are tested for proper switching operation and output state before shipping

• Professional Technical Support: Engineering team experienced in industrial sensor selection and automation integration

• Fast Shipping: Ships within 1-3 business days from Hong Kong warehouse

• 30-Day Returns: Hassle-free return policy for unused items

• 90-Day Warranty: Standard 90-day warranty coverage for peace of mind

Packing and Shipping

Each unit is carefully packaged in anti-static bags with protective cushioning and placed in sturdy carton boxes to ensure safe delivery. We support international shipping via DHL, EMS, FedEx, UPS, and TNT. Delivery typically takes 3-7 business days for international orders.
