AAEON COM-945 COM Express Type 2 CPU Module — Product Overview

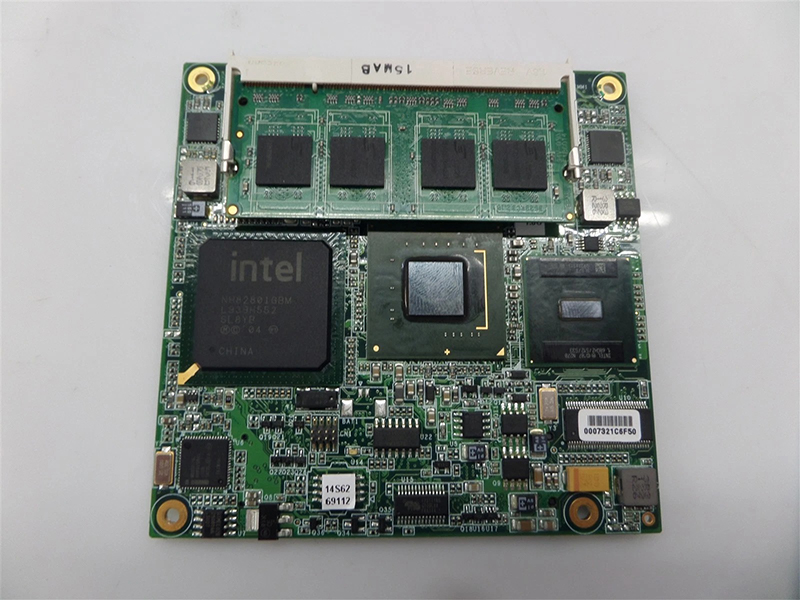

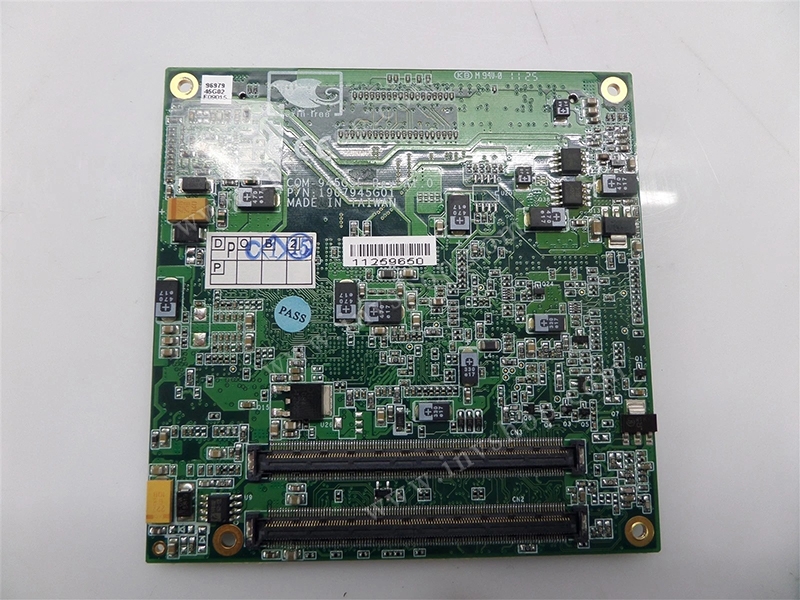

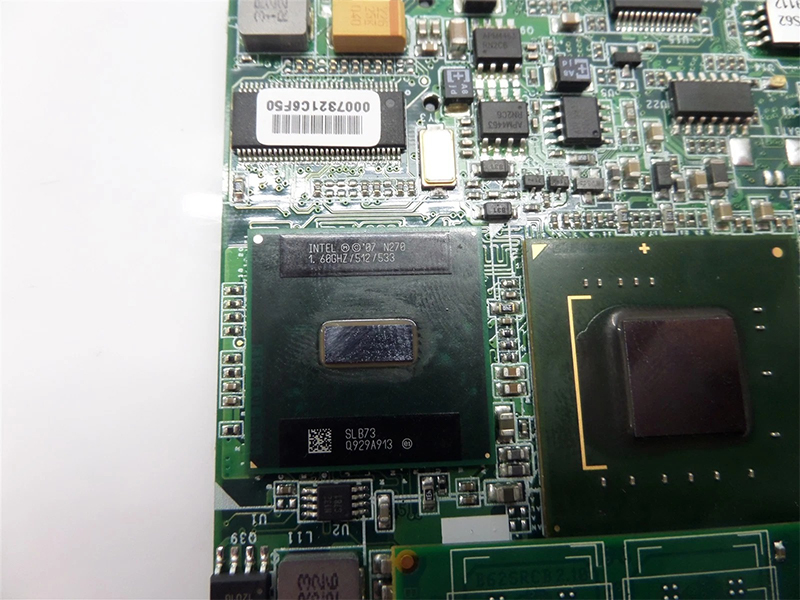

The AAEON COM-945 is a COM Express Type 2 computer-on-module (COM) designed for embedded and industrial computing applications. Built around the Intel Atom N270 processor running at 1.6 GHz and paired with the Intel 82945GSE Graphics Memory Controller Hub and Intel ICH7M I/O Controller, this module delivers reliable low-power performance in a compact 125 mm × 95 mm form factor.

Key Specifications

Applications

• Industrial Automation — Low-power fanless control systems for factory floors and process control

• Digital Signage — Compact module for media players driving single or dual displays

• Healthcare — Embedded computing in medical monitoring and diagnostic equipment

• Retail & POS — Kiosk terminals and point-of-sale systems requiring reliable 24/7 operation

• Security & Surveillance — Network video recorder (NVR) and access control platforms

• Transportation — In-vehicle computing and fleet management systems

Why Choose the COM-945?

The COM Express Type 2 architecture separates the compute module from the carrier board, allowing system integrators to upgrade processing power without redesigning the entire system. The COM-945's dual-storage interface (SATA + PATA) provides backward compatibility with legacy IDE drives while supporting modern SATA devices. Its extensive PCI Express and PCI expansion options enable flexible I/O configuration for diverse embedded applications.

The Intel Atom N270's ultra-low 2.5 W thermal design power (TDP) enables fanless and sealed enclosure designs, reducing maintenance costs and improving reliability in dusty or harsh environments.

Condition & Warranty

This is a used, tested unit sourced from decommissioned industrial systems. Each module undergoes functional verification before shipment. A 3-month warranty covers defects in materials and workmanship. Technical support is available via email and WhatsApp.

Ordering Information

Available for immediate purchase. Worldwide shipping with tracking. Contact us for volume pricing or to request a specific BIOS revision. Multiple units available from stock.
