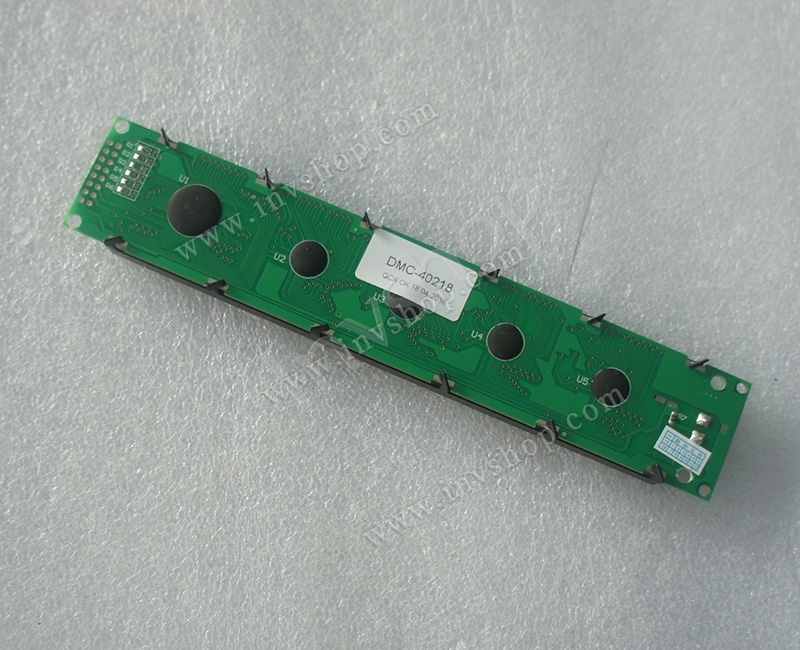

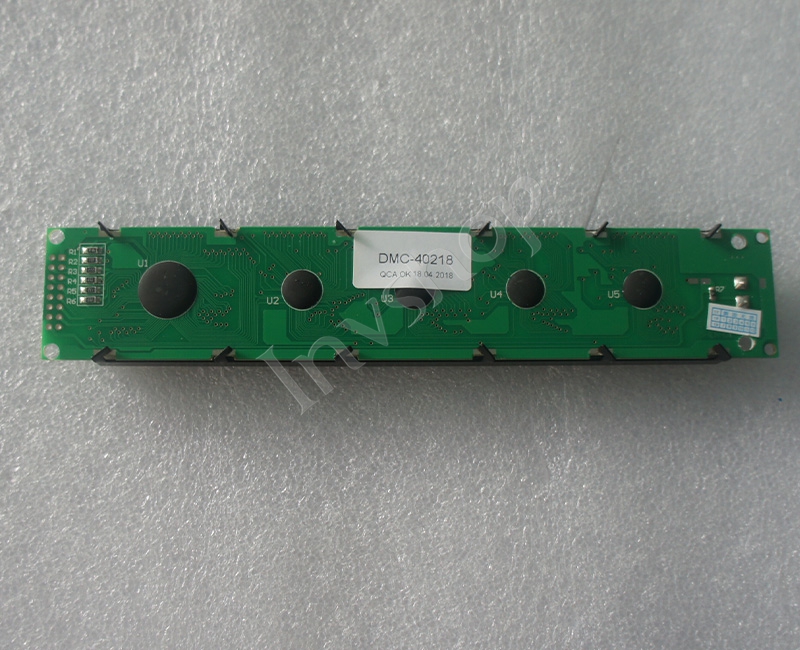

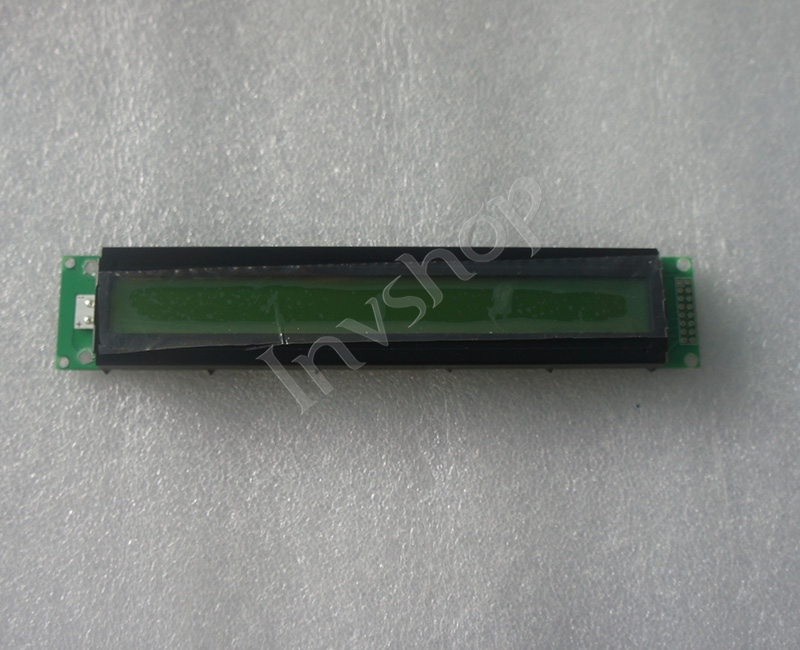

DMC-40218 industrial lcd display

Product Overview

The Optrex DMC-40218 is a character-type STN LCD module manufactured by Optrex Corporation (now Kyocera Display Corporation). This 40-character-by-2-line dot matrix LCD module has been a standard component in industrial and consumer electronics applications for decades. The DMC-40218 uses TN (Twisted Nematic) display technology in a clear reflective configuration — meaning it relies on ambient light for readability and does not require a backlight, making it ideal for low-power embedded systems, portable instruments, and outdoor-accessible equipment interfaces.

Product Specifications

Why Choose Optrex DMC-40218 LCD Modules?

• Industrial Standard Component: The DMC-40218 is one of the most widely referenced character LCD modules in industrial equipment — found in PLCs, inverters, HVAC controllers, and industrial measurement instruments worldwide

• No Backlight Required — Ultra Low Power: The reflective TN display uses ambient light for readability, making it perfect for battery-powered and solar-assisted devices where power consumption is critical

• Proven Optrex/Kyocera Quality: Optrex (now part of Kyocera) is one of the most trusted names in industrial LCD displays — known for consistent quality, long product lifecycles, and wide temperature operation

• Wide Operating Temperature Range: Rated for 0°C to +50°C continuous operation — suitable for industrial environments, factory floors, and equipment exposed to varying ambient temperatures

• Standard Character Format: 40×2 characters is a de facto standard in industrial equipment — the DMC-40218 is pin-compatible with many other 40×2 character LCD modules

• Simple Parallel Interface: Standard 8-bit parallel interface for easy connection to microcontrollers and embedded processors — widely supported by character LCD driver libraries

Typical Applications

• Industrial PLC Displays: Human interface display for programmable logic controllers in factory automation, process control, and manufacturing equipment

• Inverter and Drive Controllers: Status display for variable frequency drives (VFDs), servo amplifiers, and power conversion equipment

• HVAC and Building Automation: User interface display for commercial HVAC controllers, thermostats, and building management system (BMS) terminals

• Measurement and Instrumentation: Digital display for industrial meters, oscilloscopes, signal generators, and laboratory equipment

• Consumer Appliances: Character LCD display for microwave ovens, washing machines, air conditioners, and other home appliances with text-based user interfaces

• Transportation Equipment: Dashboard display for forklifts, golf carts, and small electric vehicles with onboard status readouts

• POS Terminals: Operator display for point-of-sale systems, barcode scanners, and cash registers

Quality Assurance and Support

• ✓ Genuine Optrex LCD Module: Authentic DMC-40218 from Optrex Corporation with full manufacturing traceability

• ✓ Pre-Shipment Testing: Each LCD module is visually inspected and tested for proper display output before shipping

• ✓ Professional Technical Support: Our team has 15+ years of experience sourcing and supporting industrial LCD modules and embedded display solutions

• ✓ ESD-Safe Packaging: All LCD modules are shipped in anti-static protective packaging with foam cushioning to prevent glass damage during transit

• ✓ 90-Day Warranty: Coverage for manufacturing defects ensures reliable performance in your equipment

• ✓ 30-Day Returns: Hassle-free return policy for unused items in original condition

Packing and Shipping

All Optrex LCD modules are carefully packaged with anti-static foam cushioning and protective materials to prevent damage from electrostatic discharge and physical shock during transit. Each module is sealed in an anti-static bag and shipped in a sturdy carton with clear fragile labeling. We ship via DHL, FedEx, or UPS with full tracking and insurance coverage available upon request.
