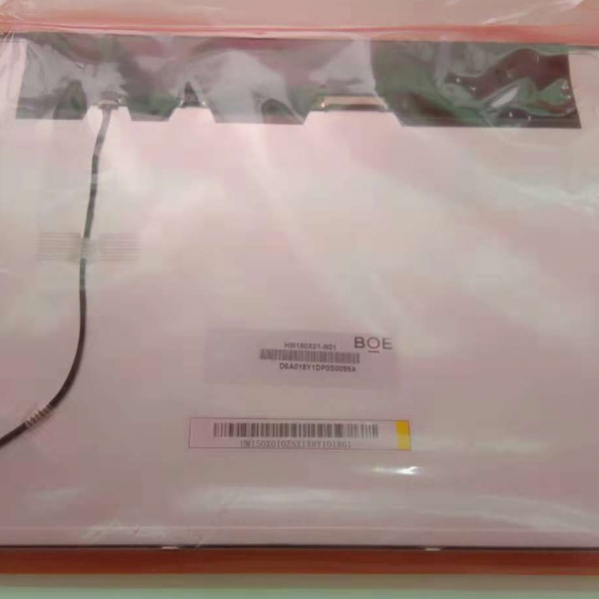

HM150X01-N01 BOE 15.0 inch 1024*768 LCD PANEL

HM150X01-N01 Product Overview

The HM150X01-N01 is a 15.0-inch XGA TFT-LCD module manufactured by Beijing BOE Optoelectronics Technology Co., Ltd. (BOE OT). This industrial-grade LCD panel features 1024×768 pixel resolution (XGA) with an RGB vertical stripe pixel configuration. The module uses amorphous silicon TFT (a-Si TFT) as the active switching device and features a Normally White display mode with edge-side LED backlight (27-LED lighting bar, replaceable). The HM150X01-N01 is designed for TFT-LCD monitor applications and reliability-critical industrial environments.

BOE: China's Leading Display Manufacturer

BOE Technology Group Co., Ltd. (commonly known as BOE) is one of the world's largest and most advanced display panel manufacturers. Headquartered in Beijing, China, BOE specializes in the research, development, and manufacturing of TFT-LCD, OLED, and other advanced display technologies. BOE's products are widely used in smartphones, tablets, laptops, monitors, televisions, and industrial equipment. As a tier-1 global supplier to major brands including Apple, Samsung, Dell, and HP, BOE is recognized for its cutting-edge R&D capabilities and high-volume manufacturing excellence. The HM150X01-N01 exemplifies BOE's commitment to delivering reliable, high-performance industrial display solutions.

Technical Specifications

Optical Characteristics Detail

The HM150X01-N01 uses a Normally White TN-technology LCD panel with wide 80° viewing angles in all four directions (left, right, up, down). The display achieves a typical contrast ratio of 400:1 with a center white luminance of 350 cd/m², making it suitable for indoor industrial environments with moderate ambient lighting conditions. The Haze 25% anti-glare surface treatment reduces reflections while the 3H hardness provides durability against scratches and cleaning. The 6-bit + FRC (Frame Rate Control) driver produces 16.2 million colors for smooth gradients and natural image quality in monitoring and display applications.

Interface and Signal Details

The HM150X01-N01 uses a standard LVDS (Low Voltage Differential Signaling) interface with a 20-pin connector (DF14H-20P-1.25H). LVDS is the industry-standard interface for industrial TFT-LCD panels, offering excellent EMI performance at high resolution and long cable runs. Key electrical parameters include:

• Differential Input Common Mode Voltage (VCOM): 1.2V

• Positive-going Input Threshold (VIT+): +100 mV

• Negative-going Input Threshold (VIT-): -100 mV

• Backlight Control: EN (enable) pin + PWM dimming control, both with 2.0V high / ≤0.6V low thresholds

LED Backlight System

The HM150X01-N01 features an edge-side LED backlight with 27 LEDs arranged in a single lighting bar. Key backlight specifications:

• LED Bar Voltage: 26.1V (min.) / 27.9V (typ.) / 29.7V (max.)

• LED Bar Current: 180 mA (typ.)

• LED Bar Power: 4.7W (min.) / 5.1W (typ.) / 5.4W (max.)

• LED Life: 50,000 hours to 50% brightness degradation at Ta=25°C

• Replaceable: Yes — the LED light bar is replaceable, extending the module's service life

• Dimming: PWM control with 5-100% duty ratio and 0.12-1 kHz frequency range

Typical Applications

• TFT-LCD Industrial Monitors: Factory automation control room displays, CNC machine HMIs

• Medical Equipment Displays: Patient monitoring systems, diagnostic displays (where applicable)

• Transportation: In-vehicle displays, rail and transit information systems

• Gaming and Amusement: Arcade machines, slot machine displays, vending machines

• Security Systems: CCTV monitor screens, access control panels

• Instrumentation: Digital oscilloscopes, test & measurement equipment

• Point-of-Sale (POS): Retail checkout displays, barcode scanner screens

Integration Notes for Design Engineers

• Mechanical Mounting: The module outline is 326.5×253.5×9.7 mm. Ensure adequate clearance for the LED driver board and LVDS cable routing behind the panel

• Thermal Management: The LED backlight generates heat. Ensure adequate ventilation or thermal management if the panel will operate at high ambient temperatures or maximum brightness for extended periods

• LVDS Signal Integrity: Keep LVDS differential pairs matched in length and impedance-controlled routing for reliable 1024×768 video at 60Hz refresh rate

• Power-up Sequencing: Follow the recommended power-on and power-off sequences as specified in the full BOE datasheet to prevent damage to the TFT array and backlight drivers

• Brightness Control: Use the PWM dimming pin for brightness adjustment. A 0-100% duty cycle at 0.12-1 kHz directly controls LED brightness proportionally

• Replacement LED Bar: The replaceable LED bar simplifies field service and maintenance — contact us for replacement LED bar part number and availability

Quality Assurance and Support

• ✓ 100% genuine BOE LCD panel with authenticity verified through Beijing BOE Optoelectronics Technology channels

• ✓ Professional Technical Support: 15+ years engineering team experienced in BOE and industrial LCD integration

• ✓ Quality Inspection: All LCD panels are tested for backlight function, pixel integrity, LVDS signal interface, and color/contrast performance before shipment

• ✓ Fast Shipping: Ships within 1-3 business days from Hong Kong warehouse

• ✓ 30-Day Returns: Hassle-free return policy for unused items

• ✓ 1-Year Warranty: Manufacturer defect warranty included for peace of mind

Packing and Shipping

All LCD panels are carefully packaged with anti-static foam cushioning, corner protectors, and moisture-barrier bags to prevent damage during international transit. Each panel is individually wrapped and labeled with model number and batch code for full traceability. Shipping available worldwide via DHL, FedEx, UPS, and TNT with full tracking and insurance.
