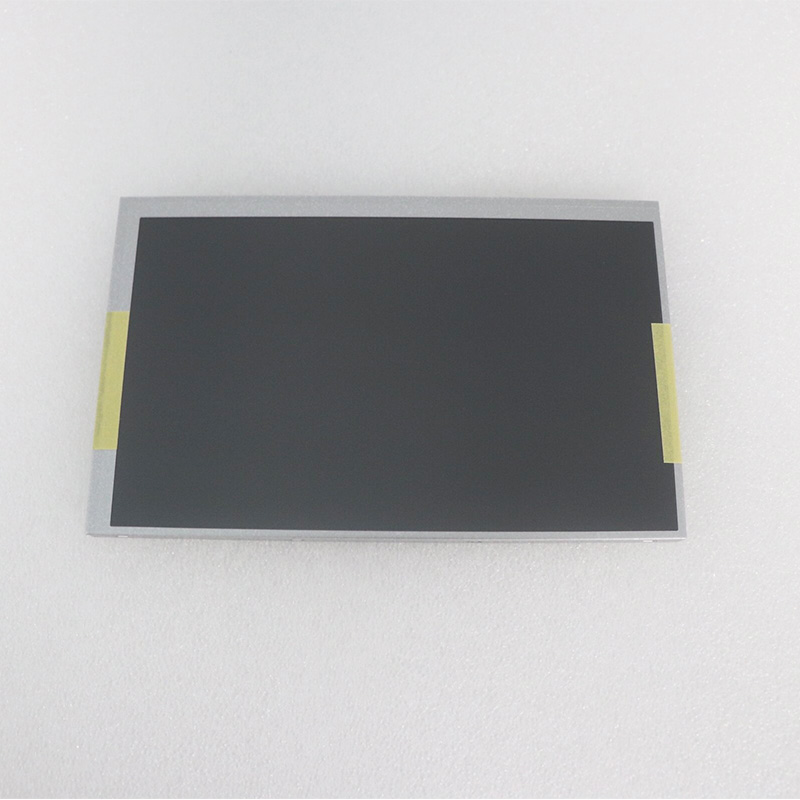

Innolux AT070TN83 V.1 7.0-Inch TFT-LCD Panel

The AT070TN83 V.1 is a 7.0-inch a-Si TFT-LCD display module manufactured by Innolux Corporation (incorporated in Taiwan, one of the world's largest TFT-LCD panel manufacturers). This is the V.1 variant of the AT070TN83 series — Innolux also offers V.3 variants of the same base model with slightly different specs. The AT070TN83 V.1 is widely sourced as a replacement display panel for industrial HMI terminals, automotive displays, and embedded systems.

About Innolux Corporation

Innolux (Innolux Corporation,  is a major Taiwanese manufacturer specializing in TFT-LCD (thin-film transistor liquid crystal display) panels for applications ranging from smartphones and tablets to industrial, medical, and automotive displays. Innolux supplies panels to major brand customers globally and operates manufacturing facilities in Taiwan and mainland China. Innolux panels are known for consistent quality, long supply lifecycles, and broad compatibility with industrial embedded display architectures.

Technical Specifications

Data Integrity Note — Brightness and Contrast Values

Published brightness values for the AT070TN83 V.1 vary across sources: Innolux official datasheet and the invshop listing cite 400 cd/m2 (typ.) brightness and 1000:1 (typ.) contrast ratio using the transmission meter (tm) method. Some third-party sources (Elecok, etc.) list 300 cd/m2 and 500:1. This discrepancy is common for TFT panels where brightness is measured at the panel center and different measurement conditions (ambient temperature, fresh vs. aged backlight, measurement aperture) can yield different readings. The 400 cd/m2 / 1000:1 values are consistent with Innolux's official datasheet and the invshop listing. Buyers who require precise brightness confirmation should request a test report from InvShop before purchase.

Display Technology: TN vs. IPS

The AT070TN83 V.1 uses a TN (Twisted Nematic) LCD mode with Normally White configuration. TN panels are characterized by:

• Fast response time (10-15ms) — suitable for video-rate content and dynamic displays

• High contrast ratio — the 1000:1 spec reflects TN's ability to block backlight in dark states

• Limited viewing angles — 70 deg left/right, 50 deg down, 70 deg up — which is the primary trade-off vs. IPS panels

• Lower color gamut compared to IPS — 262K (6-bit) color depth is standard for industrial TN panels

For applications requiring wide viewing angles (178/178 deg), IPS or MVA panels would be preferred. For industrial embedded displays where the viewer is typically directly in front of the screen, TN's speed and contrast advantages are beneficial.

Pin Interface and Signal

The panel uses a 40-pin TTL interface (1 channel, 6-bit per color) carrying RGB pixel data. Note: "TTL" in this context refers to the signal level (Transistor-Transistor Logic voltage levels, typically 3.3V), not the panel technology. To integrate this panel into a custom system, you will need an LCD controller board (AD board) with a TTL or compatible output at 800x480 resolution.

Applications

• Industrial HMI Replacement Panels: The AT070TN83 V.1 is widely used as a replacement LCD panel for various 7-inch industrial HMI operator interfaces from multiple manufacturers. The 800x480 resolution and standard TTL interface make it compatible with many controller boards.

• Industrial Automation Displays: Factory automation control panels, PLC touch-screen interfaces, and SCADA terminal displays requiring reliable industrial-grade visuals.

• Medical Device Displays: Patient monitoring equipment, diagnostic displays, and medical instrument panels where Innolux's quality certification and consistent supply chain are valued.

• Automotive Displays: In-vehicle infotainment screens, rear-seat entertainment, and dashboard display modules requiring the 7-inch form factor and wide temperature range.

• Point-of-Sale (POS) Terminals: Retail checkout displays, self-ordering kiosks, and restaurant management terminals.

• Marine and Aerospace: Navigation display panels, instrumentation systems, and control displays for transportation applications.

Quality Assurance

All AT070TN83 V.1 panels are 100% original Innolux products sourced from authorized distribution channels. Each panel is individually tested ("Tested Before Shipment") for:

• Dead pixel and sub-pixel defects

• Backlight uniformity (no visible bright spots or dark corners)

• Signal interface integrity (no data line failures on the TTL interface)

• Mechanical fit (outline dimensions within tolerance)

Warranty: 1-year manufacturer warranty covering defects in materials and workmanship. 3-month RMA (Return Merchandise Authorization) policy for DOA (Dead on Arrival) units. 30-day return policy for unused items.
