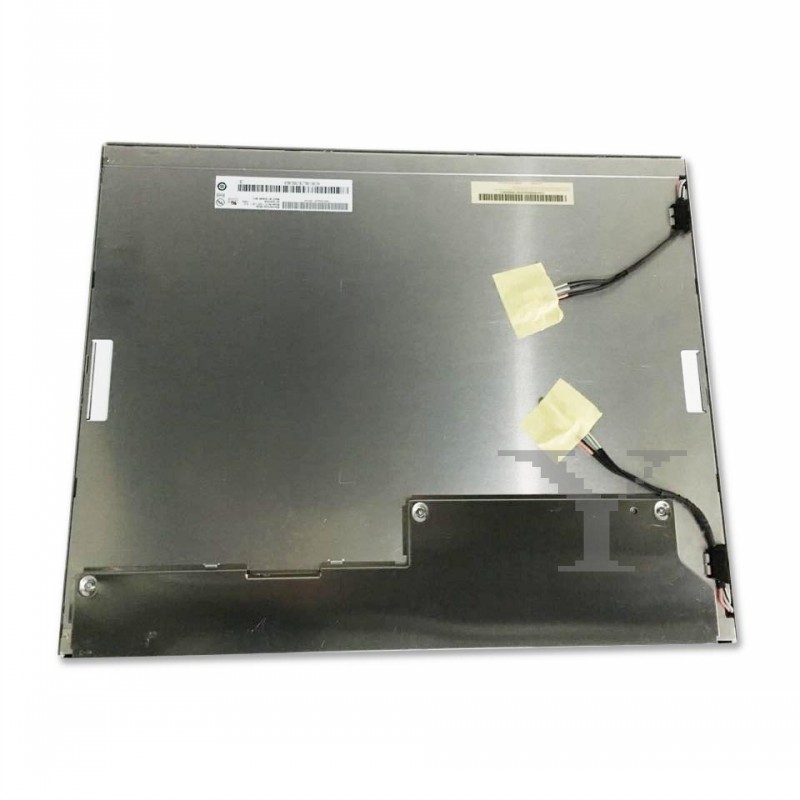

M190EG01 V3 AUO 19 inch LCD screen 1280*1024 M190EG01 V.3

M190EG01 V3 AUO 19 inch LCD screen 1280*1024 M190EG01 V.3

M190EG01 V.3 is an AUO 19 inch MVA process TFT industrial LCD panel with a resolution of 1280 × 1024, brightness of 300cd/m ², contrast ratio of 2000:1, capable of presenting 16.7M colors, and anti glare matte screen.

Price: ~~$92.00~~ $90.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

Mr.

Ms.

1. Quote with shipping freight?

Email : *

YES

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

FF300R06KE3 INFINEON IGBT module

$55.00

$100.00

Products Details

Feedback

Reveiw

M190EG01 V.3 Datasheets Download

Name: M190EG01 V.3.pdf

Type

LCD screen

Brand

AUO

Model

M190EG01 V.3

Quality

test ok before ship it

RMA Policy

RMA 3 month

Stock

499

Sample

Paid Sample

Stock Location

China

Delivery

WorldWide

Lead Time

3-5 Days

Price Term

T/T, Western Union, MoneyGram, PayPal, Escrow etc

Weight

5.000Kg

M190EG01 V3 AUO 19.0 inch TFT-LCD Panel Overview

The M190EG01 V3 is a AUO 19.0 inch industrial TFT-LCD display module featuring 1280x1024 (SXGA) resolution. It is designed for industrial control, medical equipment, and automation display maintenance and replacement.

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: M190EG01 V3
Brand / Manufacturer: AUO
Display Size: 19.0 inch
Resolution: 1280x1024 (SXGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Brand	AUO
Model	M190EG01 V3
Diagonal Size	19.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1280(RGB)×1024, SXGA, 5:4
Pixel Format	RGB Vertical Stripe
Active Area	376.32(H)×301.056(V) mm
Physical Size	396(H)×324(V)×17.53(D) mm
Mass	2.50/2.70Kgs (Typ./Max.)
Surface Coating	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	MVA, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC
Designed For	Desktop monitor, industrial display equipment
Power Usage	28W (Typ.)
Light Source	4 pcs CCFL, 50K hrs, Without Driver
Frame Rate	75Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C

Compatibility and Replacement Use

The M190EG01 V3 can be used as a direct replacement when your original equipment requires the same part number. Please check for specific revisions (e.g., V0, V1, V2, V3) or technical versions to ensure the connector and mounting match your system.

Typical Applications of M190EG01 V3

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether M190EG01 V3 Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is M190EG01 V3?

M190EG01 V3 is a AUO 19.0 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

M190EG01 V3

M190EG01 V3 AUO 19 inch LCD screen 1280*1024 M190EG01 V.3

M190EG01 V3 AUO 19.0 inch LCD Panel for Industrial Repair

M190EG01 V3 AUO 19.0 inch TFT-LCD Panel Overview

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: M190EG01 V3
Brand / Manufacturer: AUO
Display Size: 19.0 inch
Resolution: 1280x1024 (SXGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Brand	AUO
Model	M190EG01 V3
Diagonal Size	19.0 inch
Type	a-Si TFT-LCD, LCM
Pixel Number	1280(RGB)×1024, SXGA, 5:4
Pixel Format	RGB Vertical Stripe
Active Area	376.32(H)×301.056(V) mm
Physical Size	396(H)×324(V)×17.53(D) mm
Mass	2.50/2.70Kgs (Typ./Max.)
Surface Coating	Antiglare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	2000:1 (Typ.) (TM)
View Direction	Symmetry
Response Time	15/5 (Typ.)(Tr/Td), 8 (Typ.)(G to G) ms
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Operating Mode	MVA, Normally Black, Transmissive
Support Color	16.7M, 72% NTSC
Designed For	Desktop monitor, industrial display equipment
Power Usage	28W (Typ.)
Light Source	4 pcs CCFL, 50K hrs, Without Driver
Frame Rate	75Hz
Touch Panel	Without
Interface Type	LVDS (2 ch, 8-bit), 30 pins Connector
Power Supply	5.0V (Typ.)
Environment	Operating Temperature 0 ~ 50 °C, Storage Temperature -20 ~ 60 °C

Compatibility and Replacement Use

Typical Applications of M190EG01 V3

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether M190EG01 V3 Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is M190EG01 V3?

M190EG01 V3 is a AUO 19.0 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

M190EG01 V3

M190EG01 V3 AUO 19 inch LCD screen 1280*1024 M190EG01 V.3

M190EG01 V3 AUO 19.0 inch LCD Panel for Industrial Repair

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： new Tianma TM097TDH02ï¼ŒTM097TDH05 9.7inch tablets LCD display panel

Next：new HT12X21-221 HT12X21 1024*768 12.1 LCD display screens

M190EG01 V.3 Summary

M190EG01 V.3 is equipped with CCFL backlight, dual channel LVDS interface, wide viewing angle, stable operation, suitable for industrial control human-machine interface, monitoring equipment and desktop display, suitable for long-term continuous operation scenarios.
