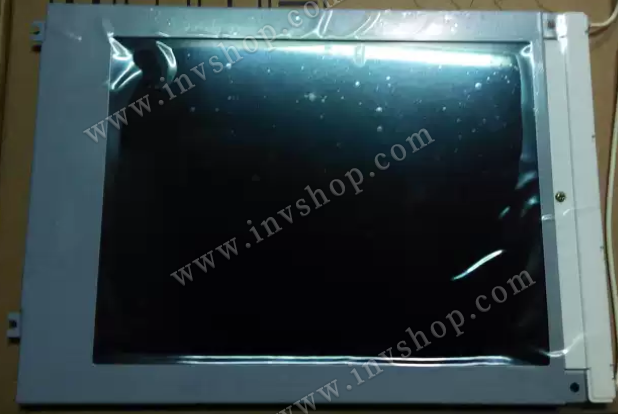

640*480 DMF-50961NF-FW-AEN STN LCD Screen Display Panel for OPTREX

Optrex DMF-50961NF-FW-AEN 7.2-Inch F-STN Monochrome LCD Panel

The DMF-50961NF-FW-AEN is a 7.2-inch F-STN (Film-compensated Super Twisted Nematic) monochrome LCD display module manufactured by Optrex Corporation (now part of Kyocera). Unlike modern TFT-LCD color displays, the DMF-50961NF-FW-AEN is a Black & White monochrome (single-color) transmissive LCD — it displays pure black and white/grayscale pixels without color. This type of display was the standard for industrial and instrumentation applications before TFT color became dominant, and remains valued for its high contrast, wide temperature range, and long-term part availability in legacy industrial equipment.

Important Distinction: This is a monochrome STN display, not a color TFT LCD. The current invshop title and category describe it as a generic "LCD screen display panel for Optrex" which may lead buyers to expect a color display. This panel displays only black, white, and grayscale — appropriate for industrial HMIs, equipment displays, and instrumentation where monochrome contrast and reliability are prioritized over color capability.

About Optrex Corporation

Optrex Corporation (オプtrex) was a Japanese manufacturer of LCD display modules, headquartered in Tokyo, Japan. Optrex was renowned for manufacturing high-reliability industrial LCD modules used in automotive, medical, industrial automation, and instrumentation applications. In 2016, Optrex's display business was integrated into Kyocera Display Corporation (Kyocera Kinseki Corp), continuing the Optrex legacy of industrial-grade LCD modules. Kyocera still services Optrex-designed products and maintains datasheets for legacy Optrex LCD modules including the DMF series.

Display Technology: F-STN vs. Standard STN vs. TFT

The DMF-50961NF-FW-AEN uses F-STN (Film-compensated Super Twisted Nematic) technology:

• STN (Super Twisted Nematic): An improvement over standard TN LCDs, STN uses a twisted angle of 180-270 degrees (vs. 90 degrees in TN) to achieve higher contrast and faster response times. STN panels are monochrome (black on gray/greenish-white background).

• F-STN (Film-compensated STN): Adds a compensating film layer between the LCD and the polarizer to improve contrast ratio and reduce color dispersion (the "rainbow" effect seen in simple STN displays). F-STN delivers significantly better image quality than standard STN while maintaining the monochrome, high-contrast characteristics.

• F-STN vs. TFT: F-STN is monochrome-only (single color per pixel), has a narrower optimal viewing angle (6:00 direction), and lower brightness than modern TFT panels. However, it offers very high contrast ratios in the intended viewing direction, wider operating temperature ranges, and simpler driving electronics — making it preferred for certain industrial and instrumentation applications.

• Black & White Mode: The "-FW" designation indicates the panel is White/Black mode — when unpowered the display shows white; when powered, pixels appear black. This is the opposite of "Black/White" mode where the background is black and pixels are white.

Technical Specifications

Weight Data Integrity Note

The invshop listing shows a weight of 1.000 kg for this product. The official Optrex DMF-50961NF-FW datasheet (All Datasheet, Kyocera) lists the weight as 250g maximum. The 1.000kg figure appears to be an error — approximately 4x the actual weight. This discrepancy affects shipping cost calculations and weight-restricted applications. The actual panel weight is approximately 250g.

Backlight: CCFL Considerations

The DMF-50961NF-FW-AEN uses a Cold Cathode Fluorescent Lamp (CCFL) as the backlight source. Important considerations:

• CCFL vs. WLED: CCFL backlights were the standard for LCD panels prior to the widespread adoption of White LED (WLED) backlights around 2008-2010. CCFL provides even, high-quality illumination but requires higher voltage inverter electronics and has shorter lifespan than modern WLED.

• No Driver Included: The invshop listing explicitly states "no driver included" for the backlight. The CCFL requires a dedicated CCFL inverter module to provide the high-voltage AC needed to start and operate the fluorescent lamp. Buyers should confirm they have or can source the appropriate CCFL inverter for this panel.

• Lamp Life: Typical CCFL lifespan is 20,000 to 50,000 hours depending on operating temperature and usage patterns. For long-term industrial deployments, consider whether the CCFL backlight is still viable for your application or whether a modern WLED-backlit replacement panel might be preferable.

Applications

• Industrial HMI and Control Panels: Monochrome STN displays were the dominant HMI technology in factory automation before color TFT became standard. The DMF-50961NF-FW-AEN remains relevant for maintaining legacy industrial control equipment where the display module has failed and must be replaced with an identical or equivalent part.

• Medical Device Displays: Patient monitoring equipment, infusion pumps, and diagnostic instruments that use monochrome displays for their high contrast and readability in clinical environments.

• Industrial Instrumentation: Digital oscilloscopes, signal analyzers, process controllers, and laboratory equipment that benefit from the high contrast and wide temperature range of STN LCD technology.

• Automotive Displays: Some older automotive dashboard clusters and control modules used monochrome STN displays. The 0 to +50 degC operating range and robust mechanical design meet automotive qualification requirements.

• Point-of-Sale (POS) Terminals: Older retail POS terminals and receipt printers with built-in monochrome displays. Suitable for maintenance and repair of existing POS equipment fleets.

• Legacy Equipment Replacement: Any industrial, laboratory, or commercial equipment that uses the DMF-50961NF-FW or equivalent Optrex DMF-series module as a replacement spare part.
