AM-640480G4TNQW-A0H AMPIRE 5.7" TFT-LCD screen 640*480 Display

Product Overview

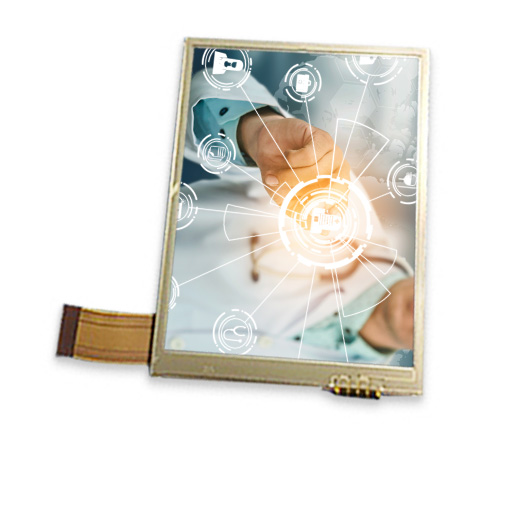

The AM-640480G4TNQW-A0H is a 5.7-inch a-Si TFT-LCD display module manufactured by Ampire Co., Ltd., a leading Taiwan-based specialist in industrial TFT LCD displays with over 25 years of experience. This 5.7" VGA (640×480) TFT panel features TN (Twisted Nematic) technology with WLED backlight, delivering 500 cd/m² brightness and a 250:1 contrast ratio — making it ideal for industrial HMI, medical devices, test equipment, and embedded display applications.

Ampire is renowned in the TFT display industry for producing highly reliable, long-life display modules with extensive product lines covering sizes from 2.2" to 21.5". Many Ampire displays offer extended temperature range versions, high-brightness options, wide viewing angle technologies (IPS/MVA), and long-life backlight solutions — making them a preferred choice for demanding industrial environments worldwide.

Technical Specifications

Signal Interface Note: LVDS vs. Parallel RGB

The AM-640480G4TNQW-A0H uses an LVDS (Low-Voltage Differential Signaling) interface with 1 channel and 6-bit color depth, connected via a 20-pin FPC (Flexible Printed Circuit) connector. The LVDS interface provides superior electromagnetic interference (EMI) performance compared to parallel RGB, making it better suited for industrial environments with electrical noise. If TTL/Parallel RGB input is required, an external AD board (signal converter) can be added to accept standard VGA or TTL input signals.

Typical Applications

• Industrial HMI: Human-machine interfaces for PLC-based automation equipment, CNC machines, and industrial control panels

• Medical Devices: Patient monitoring equipment, diagnostic displays, and portable medical instruments requiring reliable industrial-grade screens

• Test & Measurement: Oscilloscope displays, signal analyzers, power meter interfaces, and laboratory equipment

• Embedded Systems: Single-board computers (Raspberry Pi, BeagleBone), retro gaming kits, and DIY electronics projects

• Transportation: Vehicle dashboards, GPS navigation units, and maritime electronics

• Point-of-Sale (POS): Commercial terminal displays and receipt printer interfaces

Why Choose Ampire TFT Displays?

• ✓ 25+ Years TFT Expertise: Ampire celebrated its 25th anniversary in 2023 as one of the most established TFT manufacturers in Taiwan

• ✓ Industrial Grade Reliability: Designed for long operating life with extended temperature range options for harsh environments

• ✓ Wide Product Range: One of the most extensive TFT lineups in the industry — from 2.2" to 21.5", covering IPS, MVA, TN, LVDS, MIPI, and more

• ✓ Long-Life Backlights: LED backlights rated up to 50,000 hours minimize maintenance requirements

• ✓ ROHS & CE Compliant: Environmentally responsible manufacturing with full certification

• ✓ Custom Modifications Available: Tailored specifications, touch panel integration (PCAP/RTP), and custom optical bonding on request

Quality Assurance and Support

• ✓ Original Ampire Product: 100% genuine Ampire Co., Ltd. TFT-LCD module with authenticity guaranteed

• ✓ Professional Technical Support: 15+ years engineering team experienced in display integration and panel selection

• ✓ Quality Inspection: Every LCD panel is electrically tested before shipment

• ✓ Fast Shipping: Ships within 1-3 business days from Hong Kong warehouse

• ✓ 90-Day Warranty: Manufacturer defect warranty covers dead pixels, backlight failure, and display defects

• ✓ 30-Day Returns: Hassle-free return policy for unused items in original condition

Packing and Shipping

All Ampire LCD modules are carefully packaged with anti-static materials and protective cushioning to prevent damage during transit. Each unit is individually wrapped with desiccant and inspected before shipping. We offer worldwide shipping via DHL, FedEx, UPS, and TNT — typical delivery takes 3-7 business days. Buyers are responsible for any applicable customs duties, taxes, and remote area surcharges.
