3.5'' Sharp A-Si TFT LCD Panel Resolution 240×320 Display Colors 262K (6-bit) LQ035Q7DB05

3.5'' Sharp A-Si TFT LCD Panel Resolution 240×320 Display Colors 262K (6-bit) LQ035Q7DB05

LQ035Q7DB05 is a 3.5-inch vertical semi reflective TFT LCD module launched by Sharp, with a resolution of 240 × 320, supporting 262K colors, a brightness of 160nit, and a transmission contrast ratio of 85:1.

Price: ~~$32.00~~ $30.00 / piece

Quantity:		Unit(s) MOQ: 1



Add to wish list

Calculate shipping price

WINNI (HK) ELECTRONIC CO., LIMITED

Invshop168

+8613827441621

winnihk88@winnihk.com

facebook:invshop@163.com

youtube:invshop-com

linked:WINNI (HK) ELECTRONIC CO., LIMITED

Require:*

Product Model*	Target price	Qty *

Message

Your contact info:

Additional info:

Name: *

1. Quote with shipping freight?

Email : *

Phone:

2. Which carrier do you perfert?

Company:

	Fedex		UPS		DHL
	TNT		other

Country:*

All Categories

-81%
OFF

$55.00

$100.00

Products Details

Feedback

Reveiw

LQ035Q7DB05 Datasheets Download

Name: LQ035Q7DB05.pdf

LCD PANEL

Brand

Sharp

Model

LQ035Q7DB05

Quality

test ok before ship it

RMA Policy

RMA 3 month

Stock

Sample

Paid Sample

Stock Location

China

Delivery

WorldWide

Lead Time

3-5 Days

Price Term

T/T, Western Union, MoneyGram, PayPal, Escrow etc

Weight

0.500Kg

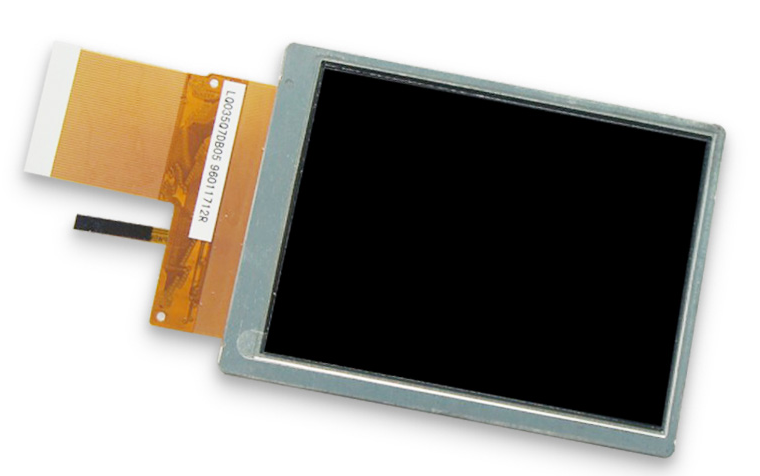

LQ035Q7DB05 Sharp 3.5 inch TFT-LCD Panel Overview

The LQ035Q7DB05 is a Sharp 3.5 inch industrial TFT-LCD display module featuring 240x320 (QVGA) resolution. It is designed for industrial control, medical equipment, and automation display maintenance and replacement.

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: LQ035Q7DB05
Brand / Manufacturer: Sharp
Display Size: 3.5 inch
Resolution: 240x320 (QVGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Mfr.	Sharp
Model Name	LQ035Q7DB05
Display Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	240(RGB)×320, QVGA, 3:4
Dot Layout	RGB Vertical Stripe
Display Area	53.64(W)×71.52(H) mm
Panel Weight	40.0g (Typ.)
Outline Size	65(W)×85(H)×3.7(D) mm
Surface	Hard coating (3H)
Brightness	160 cd/m² (Typ.)
Contrast Ratio	85:1 (Typ.)(TM)、15:1 (Typ.)(RF)
Viewing Angle	40/40/40/50 (Typ.)(CR≥2)
Display Mode	TN, Normally White, Transflective
View Direction	6 o'clock
Response Time	30/50 (Typ.)(Tr/Td) ms
Display Colors	262K
Touch Screen	Without
Power Usage	-
Light Source	6S1P WLED, 10K hrs, Without Driver
Frequency	60Hz
Application	Handheld portable devices
Interface	Parallel RGB (1 ch, 6-bit), 50 pins FPC
Input Voltage	5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Environment	Operating Temp. -10 ~ 60 °C; Storage Temp. -25 ~ 70 °C

Compatibility and Replacement Use

The LQ035Q7DB05 can be used as a direct replacement when your original equipment requires the same part number. Please check for specific revisions (e.g., V0, V1, V2, V3) or technical versions to ensure the connector and mounting match your system.

Typical Applications of LQ035Q7DB05

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether LQ035Q7DB05 Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is LQ035Q7DB05?

LQ035Q7DB05 is a Sharp 3.5 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

LQ035Q7DB05 Sharp 3.5 inch LCD Panel for Industrial Repair

LQ035Q7DB05

Sharp LQ035Q7DB05 3.5 inch LCD

LQ035Q7DB05 Sharp 3.5 inch TFT-LCD Panel Overview

Please confirm the original label, connector layout, backlight type, and equipment manual before ordering to ensure full compatibility.

Key Features

Model number: LQ035Q7DB05
Brand / Manufacturer: Sharp
Display Size: 3.5 inch
Resolution: 240x320 (QVGA)
Product type: Industrial TFT-LCD Panel
Application: Industrial automation, HMI, Medical equipment repair
MOQ: 1 piece
Fast international shipping available

Key Specifications

Parameter	Specification
Mfr.	Sharp
Model Name	LQ035Q7DB05
Display Size	3.5"
Panel Type	a-Si TFT-LCD, LCM
Resolution	240(RGB)×320, QVGA, 3:4
Dot Layout	RGB Vertical Stripe
Display Area	53.64(W)×71.52(H) mm
Panel Weight	40.0g (Typ.)
Outline Size	65(W)×85(H)×3.7(D) mm
Surface	Hard coating (3H)
Brightness	160 cd/m² (Typ.)
Contrast Ratio	85:1 (Typ.)(TM)、15:1 (Typ.)(RF)
Viewing Angle	40/40/40/50 (Typ.)(CR≥2)
Display Mode	TN, Normally White, Transflective
View Direction	6 o'clock
Response Time	30/50 (Typ.)(Tr/Td) ms
Display Colors	262K
Touch Screen	Without
Power Usage	-
Light Source	6S1P WLED, 10K hrs, Without Driver
Frequency	60Hz
Application	Handheld portable devices
Interface	Parallel RGB (1 ch, 6-bit), 50 pins FPC
Input Voltage	5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Environment	Operating Temp. -10 ~ 60 °C; Storage Temp. -25 ~ 70 °C

Compatibility and Replacement Use

Typical Applications of LQ035Q7DB05

Industrial automation maintenance
HMI (Human Machine Interface) repair
Medical diagnostic equipment displays
Control panel spare-parts replacement

How to Confirm Whether LQ035Q7DB05 Fits Your Equipment

Check the original LCD label and exact model number.
Confirm the brand, size, and physical mounting dimensions.
Compare the connector layout and cable tail direction.
Verify resolution and electrical requirements (voltage/signal).
Send clear photos of the original label and connectors if verification is needed.

Quality, Packing and Shipping

Quality control: Each item is visually inspected and checked before shipment.
Packaging: Secure anti-static packaging and carton for safe international delivery.
Shipping: DHL, FedEx, UPS, TNT, and other international express options.

FAQ

What is LQ035Q7DB05?

LQ035Q7DB05 is a Sharp 3.5 inch TFT-LCD display panel module used for industrial and medical equipment maintenance.

Can it replace my original part?

Yes, provided the model number, physical dimensions, and electrical connectors match your original component.

What should I check before ordering?

Verify the part number, version (Revision), connector type, and voltage requirements from your equipment manual or the original label.

LQ035Q7DB05 Sharp 3.5 inch LCD Panel for Industrial Repair

LQ035Q7DB05

Sharp LQ035Q7DB05 3.5 inch LCD

Customer's Reviews:

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Great deal! Would buy from again

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Excellent, many thanks

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

NO PROBLEM. GOOD WORK

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Fast delivery

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Worked Great

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Good quality products

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

good

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

item as described and packaged well

Price:

Quality:

Ease of use:

Delivery speed:

OverALL Rating:

04/20/2024, By

Order received in good condition. Would definitely use this seller again for any future orders.

<<12 3 4 5 6 7...15>>

Previous： NEW 15.0 inch touch LCD display SHARP LQ150X1LX92

Next：LQ038J7DH52 3.8 Inch Low Power Consumption Sharp LCD Panel For Medical Application

LQ035Q7DB05 Summary

LQ035Q7DB05 adopts an 18 bit parallel RGB interface, which is suitable for outdoor lighting scenarios with varying degrees of illumination. Module integrated driver and backlight, working temperature range -10~60 ℃, originally used for PDAs and portable industrial control devices.
