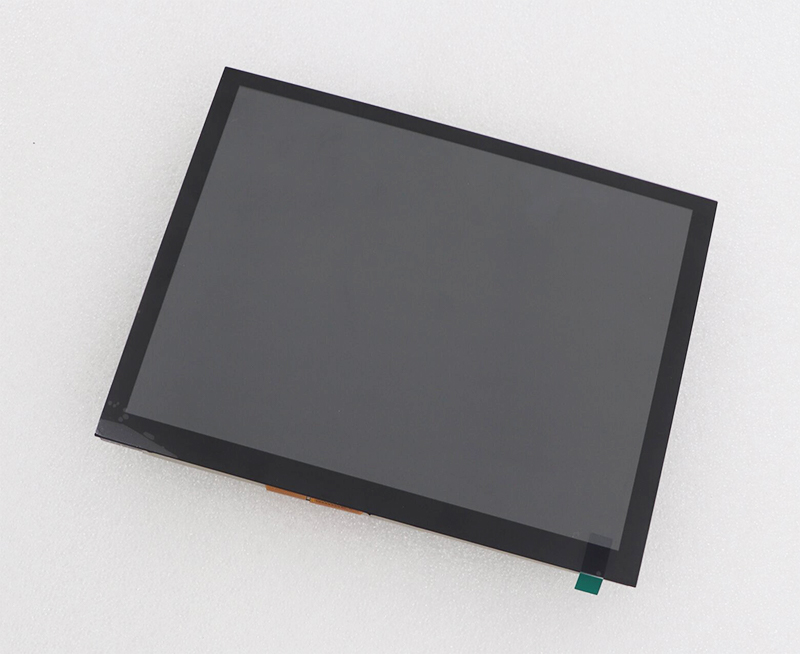

LA084X01-SL02 LG 8.4 inch 1024*768 TFT LCD Display

In the world of specialized display technology, the LA084X01-SL02 manufactured by LG Display stands as a benchmark for mid-sized industrial applications. This 8.4-inch TFT LCD panel, featuring a resolution of 1024x768 pixels (XGA), serves a critical role in environments where reliability, readability, and precise image reproduction are non-negotiable. While consumer electronics often chase higher resolutions and larger screen sizes, the LA084X01-SL02 represents a different philosophy: one of engineering precision tailored for demanding professional settings.

This article delves into the architectural design, performance characteristics, and real-world applications of this specific display model. We will explore its technical specifications beyond the surface level, examining aspects such as its LVDS interface, brightness characteristics, and how its aspect ratio of 4:3 remains relevant in medical imaging and industrial control systems. By the end of this analysis, engineers, procurement specialists, and technology integrators will gain a thorough understanding of why this LG panel remains a trusted choice in a rapidly evolving display market.

At first glance, a 1024x768 resolution on an 8.4-inch diagonal might seem modest compared to modern FHD or 4K panels. However, this specific configuration—often referred to as XGA (Extended Graphics Array)—offers a pixel density that is remarkably well-suited for its intended use cases. The resulting pixel per inch (PPI) for this size is approximately 152 PPI, which provides a crisp, clear image without the penalty of excessive data processing or heat generation.

The 4:3 aspect ratio is a deliberate engineering choice. Unlike the 16:9 ratio common in entertainment, 4:3 provides a more square viewing area. This is critical in medical monitors for viewing X-rays or CT scans, where vertical space is needed to display the full image of a human body, and in industrial HMI (Human-Machine Interfaces) where a wider horizontal view would be inefficient. Furthermore, this ratio aligns with many legacy industrial software systems that were designed for XGA resolution, ensuring backward compatibility. The LA084X01-SL02 essentially acts as a stable, high-quality bridge between modern display drivers and the specific requirements of professional equipment that demands accurate, non-stretched imagery.

The LA084X01-SL02 utilizes a Single-Channel LVDS (Low-Voltage Differential Signaling) interface, a standard in industrial displays. This is not a trivial detail. LVDS offers significant advantages over older CMOS/TTL interfaces, including lower power consumption, reduced electromagnetic interference (EMI), and the ability to transmit high-speed data over longer distances without signal degradation. For a panel of this size and resolution, a single-channel 6-bit or 8-bit LVDS connection is perfectly optimized, requiring just a few twisted-pair wires to transmit pixel clock, row/column sync, and data signals.

Signal integrity is the backbone of this display's reliability. The panel's internal timing controller (TCON) is designed to handle these LVDS signals with high noise immunity, which is crucial in factory floors or hospital environments where electrical noise from motors or MRI machines is present. The rigid 30-pin connector standard used on this panel provides a robust physical connection, reducing the risk of intermittent failures. This design philosophy ensures that the display does not glitch, flicker, or lose synchronization, maintaining a stable visual output that is essential for high-stakes data reading.

Lighting control is a defining feature of the LA084X01-SL02. This panel typically offers a high brightness rating, often exceeding 400 to 500 cd/m², depending on the specific backlight configuration. This high luminance is a deliberate choice for use in environments with strong ambient lighting (such as operating rooms or sunlit control rooms) where a standard laptop screen would be unreadable. The TN (Twisted Nematic) technology, while sometimes criticized for limited viewing angles compared to IPS, offers a distinct advantage here: superior response times (typically under 25ms), which is vital for displaying moving images or scrolling data without ghosting.

The contrast ratio, usually specified at 700:1 to 1000:1, ensures deep blacks and bright whites, making text and fine lines sharp. While the viewing angle is narrower (typically 70/70/50/60 degrees), this is often an advantage in secure kiosks or medical carts, preventing unauthorized side-viewing. The anti-glare surface treatment is another critical optical feature; it diffuses reflections from overhead lights, reducing eye strain during long monitoring shifts. For integrators, this optical package means the display performs consistently under diverse lighting challenges.

Industrial displays must survive where consumer electronics fail. The LA084X01-SL02 is engineered for an extended operating temperature range, typically from 0°C to 50°C or wider, and a storage range from -20°C to 60°C. This allows the panel to function in unventilated equipment cabinets or near heat-generating industrial machinery. The CCFL (Cold Cathode Fluorescent Lamp) or LED backlight unit is designed for a long operational lifespan, often rated for 50,000 hours or more, ensuring years of continuous use before brightness degradation.

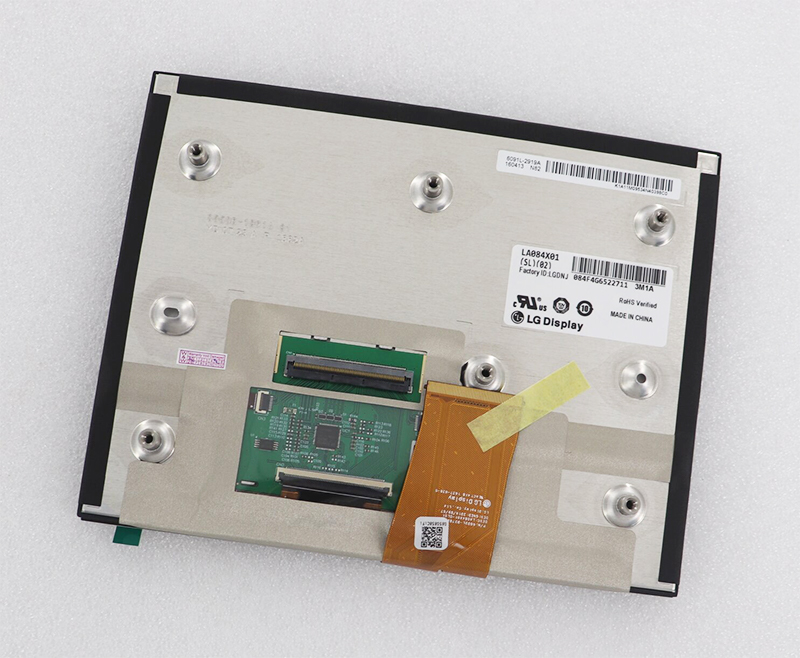

Mechanical robustness is equally important. The panel features a rigid metal frame and secure mounting points (often with mounting holes for VESA or custom brackets). It is resistant to vibration and shock, making it suitable for integration into portable diagnostic carts or ruggedized instruments. This level of physical reliability ensures that the display maintains its electrical and optical performance over a longer service life than standard commercial panels, reducing total cost of ownership for medical facilities and manufacturing plants. The ability to withstand humidity (typically 80% to 90% RH) further proves its resilience in challenging environments.

The specific combination of features in the LA084X01-SL02 makes it a prime candidate for several niche but critical applications. In the medical sector, it is frequently found in patient monitoring systems, anesthesia machines, and portable ultrasound units. The 4:3 aspect ratio perfectly frames physiological waveforms (ECG, respiration) alongside numerical data, while the high brightness and anti-glare coating ensure readability in the clinical setting. The strict gamma curve and color consistency required for medical diagnostics are well-handled by LG’s panel engineering.

In industrial automation, this display powers HMI panels for CNC machines, packaging systems, and factory floor controllers. Its resistance to electrical noise (EMI) and stable operation across temperature gradients make it a reliable interface for operators. The LVDS interface simplifies integration with common industrial single-board computers (like those from Advantech or Axiomtek). Furthermore, its size is ideal for portable field test equipment used in aerospace or defense, where space inside the chassis is at a premium. The LA084X01-SL02 is not a general-purpose display; it is a specialized component for tasks that require trustworthy visual data delivery over long periods.

As an established model from LG Display, the LA084X01-SL02 occupies a unique position in the supply chain. While it is not a new product launch, its production status can be classified as "mature" or "active" depending on the sourcing origin. This creates a critical dynamic for procurement professionals. Availability may come from original LG manufacturing runs or from reliable aftermarket surplus suppliers. Due to its sustained demand in service and maintenance sectors, sourcing compatible or genuine replacement units requires careful validation of Part Number, Date Code, and Backlight Hours.

The future outlook for this display is stable rather than revolutionary. As the industry shifts toward fully LED-backlit panels and higher resolution standards for new designs, the XGA resolution remains the gold standard for many medical and industrial certifications. Integrators are advised to stockpile units for ongoing equipment maintenance or to seek drop-in replacement panels from reputable distributors. Understanding the LA084X01-SL02’s specifications is also beneficial for reuse purposes, giving engineers the confidence to port legacy designs onto new controller boards without changing the display size or resolution, thereby preserving expensive mechanical tooling and certification costs.

• 1. What is the exact resolution of the LA084X01-SL02?

• The resolution is 1024 x 768 pixels (XGA format) with a 4:3 aspect ratio.

• 2. What type of backlight is used in this LG display?

• It uses a CCFL (Cold Cathode Fluorescent Lamp) backlight in standard configurations, though some variants may offer LED options. Always check the datasheet for specific voltage and current ratings.

• 3. Is this display suitable for outdoor use?

• Not directly. It has high brightness but is designed for indoor industrial environments. For direct sunlight, a custom high-brightness upgrade or optical bonding is required.

• 4. What is the operating temperature range for the LA084X01-SL02?

• The standard range is 0°C to 50°C for operation, with storage up to 60°C. Specific sub-models may vary.

• 5. Can I use this display with a Raspberry Pi?

• Yes, but you will need an LVDS interface board (such as those from Waveshare or custom HDMI-to-LVDS converters) that supports XGA resolution and the correct 30-pin pinout.

• 6. What is the typical lifespan of the backlight?

• The CCFL backlight is rated for approximately 50,000 hours of half-life, meaning brightness will drop to 50% after that time.

• 7. Does the LA084X01-SL02 have touch panel integration?

• The LCD module itself does not include a touch sensor. However, it is often paired with a 4-wire or 5-wire resistive touch screen in medical or industrial assemblies.

• 8. What is the pin count and signal type?

• It features a 30-pin connector utilizing a Single-Channel LVDS interface.

• 9. Is this the same as the LP084X01 panel?

• They are different series. Always use the exact model number LA084X01-SL02 for compatibility, as LP series often have different mechanical dimensions and electrical characteristics.

• 10. Why is the 4:3 aspect ratio still used in medical devices?

• It matches the standard aspect ratio of medical imaging formats (X-rays, CT scans) and allows for better vertical space utilization for waveforms and patient data without stretching.

Conclusion

The LA084X01-SL02 LG 8.4 inch TFT LCD Display is far more than a legacy component; it is a highly specialized tool engineered for precision and longevity. Its value proposition lies not in flashy consumer metrics but in signal integrity, optical stability, and mechanical ruggedness. As we have explored, its XGA resolution and 4:3 aspect ratio are deliberate choices that optimize it for medical diagnostics and industrial control, where reading accuracy and vertical space are paramount. The robust LVDS interface and high-brightness backlight ensure it performs reliably under harsh electrical and lighting conditions, while its extended lifecycle minimizes operational downtime.
